Spirodoc
Page 25 of 39
Rev.1.5
Service Guide

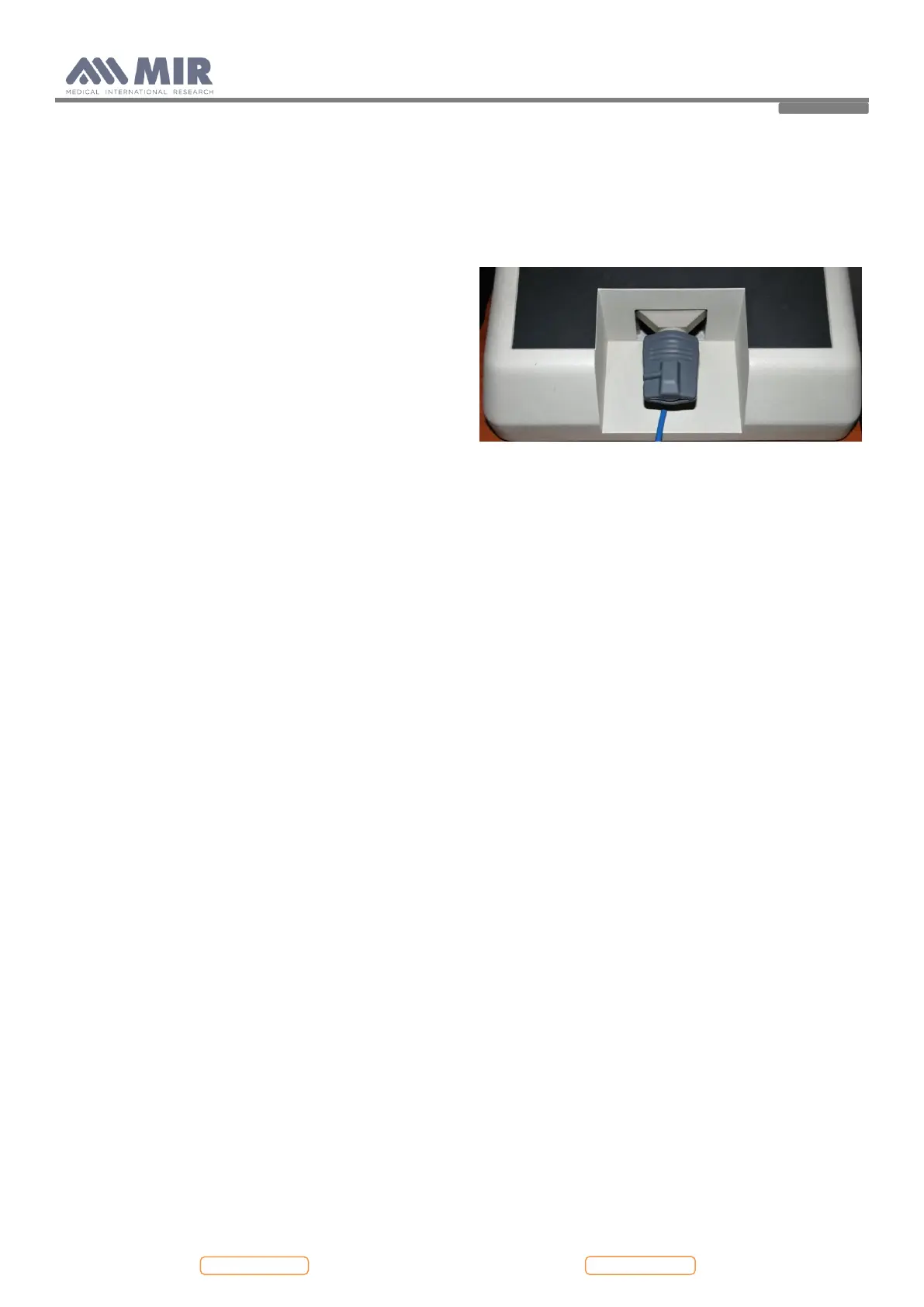

f) Read the heart beat rate on the MIR device (it
must be between 38 and 42).
g) Enter the given values in the proper spaces on
Annex 1 to this Manual.
h) Repeat the same procedure for the saturation level
set on the simulator at 95% and PBM at 80.
i) Read the value given by the spirodoc (it must be
between 93 and 97%).
j) Read the heart beat rate on the spirodoc (it must be
between 78 e 82).
k) Enter the given values in the proper spaces on
Annex 1 to this Manual.
If the values of both tests are within the preset range,
the sensor passes the checks and can be given to the
user together with the device, otherwise it is
nonconforming and should be subject to further tests.
4.5.2. Testing procedures for devices without oximeter
The following checks must be carried out on each device:
