Zone Adder Module (DM-204) Terminal Connections
Wire devices to terminals as shown below in Figure 12. See Wiring Tables for on page 20wiring instructions,
Appendix A on page 33 for compatible devices, and Appendix "C on page 38 for Module specifications.

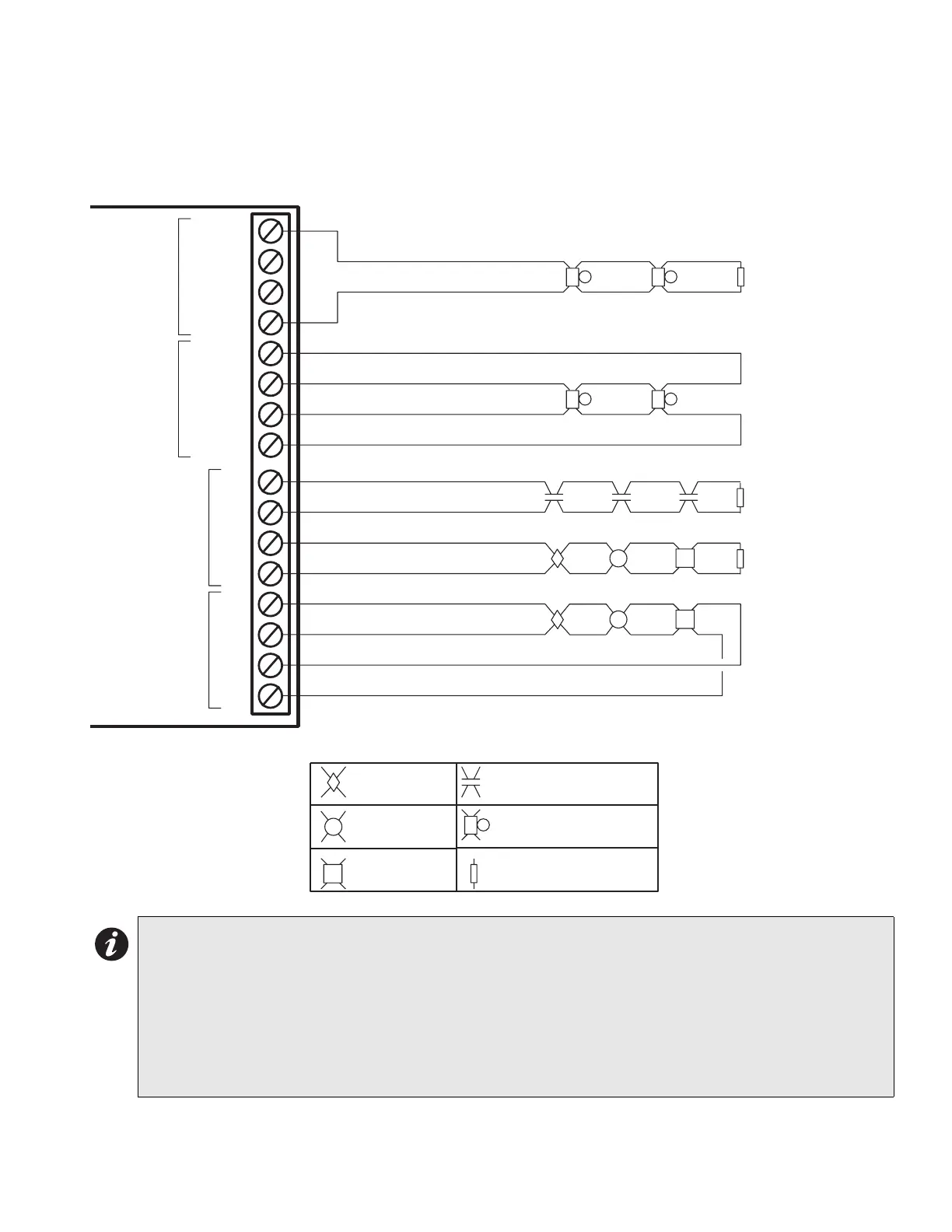

Figure 12: DM-204 Zone Adder Module Terminal Connections
Notes:
• All terminals are shown from the back of the main fire alarm board assembly (pointing towards the rear
of the enclosure).
• All power limited circuits must use type fPL, FPLR, or FPLP power limited cable.
• Initiating circuits are fully supervised and rated for 26 VDC, 3 ma standby, 1.5 vp-p ripple, 50 mA max.
alarm. They may be configured as required. The alarm threshold is 21 mA. Maximum loop resistance
is 100 ohms, 50 ohms per side.
• Initiating circuits are compatibility ID “A”.
SUPERVISORY OR
WATERFLOW
SWITCH (NO)
HEAT DETECTOR
LEGEND: See Appendix A for compatible devices.
SMOKE DETECTOR
3.9K 1/2W ELR LISTED S5434
MODEL MP-300 MANUFACTURED
BY MIRCOM
PULL STATION
CLASS A / STYLE D NOTE:
INITIATING CIRCUITS MUST BE ALL EITHER STYLE B OR
D. IF STYLE D IS SELECTED, THE NUMBER OF CIRCUITS
IS CUT IN HALF.
BELL, HORN, OR STROBE
INI5+
INI5-
INI6+
INI6-
INI7+
INI7-
INI8+
INI8-
STYLE D
INI4
STYLE D
INI3
CLASS B /
STYLE B
WIRING
CLASS A /
STYLE D
WIRING
SUPERVISED INITIATING CIRCUIT #8
(SHOWN AS SUPV ZONE, POWER LIMITED)
SUPERVISED INITIATING CIRCUIT #7
(SHOWN AS ALARM ZONE, POWER LIMITED)
SUPERVISED INITIATING CIRCUIT #3
(POWER LIMITED)
IND4+ (Z)
IND4- (Z)
IND4-(Y/Z)
SUPERVISED INDICATING CIRCUIT #4
(POWER LIMITED)
IND3+ (Z)
CLASS A /
STYLE Z
WIRING
IND3- (Y/Z)
IND3+ (Y/Z)
IND4+ (Y/Z)
IND3- (Z)
CLASS B /
STYLE Y
WIRING
SUPERVISED INDICATING CIRCUIT #3
(POWER LIMITED)
CLASS B /
STYLE B
WIRING
EXAMPLES OF BOTH CLASS AA@ AND AB@ WIRING ARE SHOWN, BUT
ONLY ONE CLASS OF WIRING MAY BE USED IN ANY INSTALLATION.
EXAMPLES OF BOTH CLASS AA@ AND AB@ WIRING ARE SHOWN, BUT
ONLY ONE CLASS OF WIRING MAY BE USED IN ANY INSTALLATION.
