Field Wiring
18
Polarity Reversal and City Tie Module (Model: PR-100) Terminal Connections
See Appendix C on page 38 for module specifications. Wire as shown in Figure 15 below using proper wire gauges.
Note that for use in the USA, the installer must add an Atlantic Scientific (Tel. 407-725-8000) Model #24544
Protective Device, or similar ULI-Listed QVRG Secondary Protector, as shown. For use in Canada, the protective
device is still recommended, but the PR-100 may be connected directly to polarity reversal and city tie wiring.

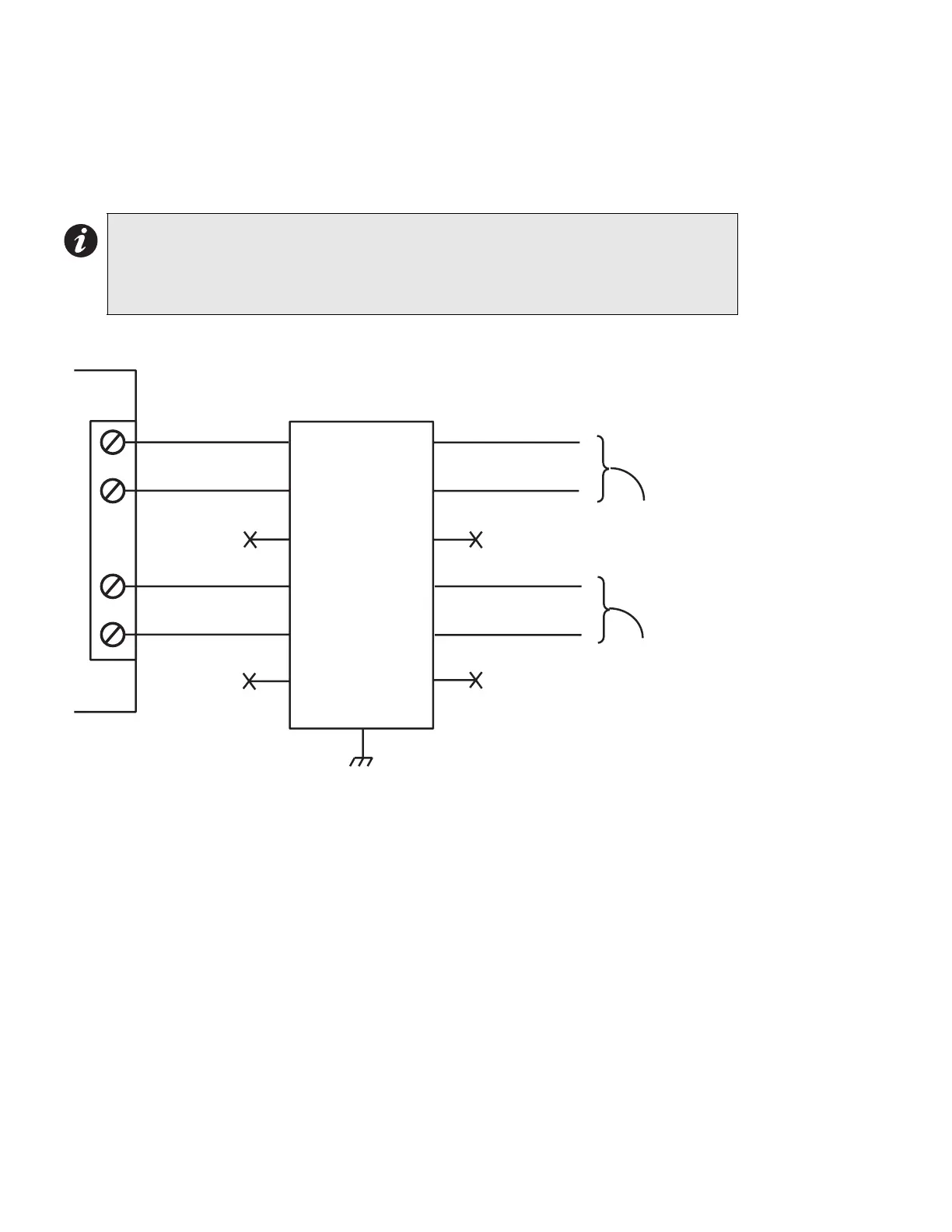

Figure 15: PR-100 Polarity Reversal and City Tie Module Terminal Connections
When wiring devices, please keep in mind the following:
• Plug PR-100 ribbon cable (P1) into the main fire alarm module.
• Cut Jumper (JW!) on the PR-100 module in order to transmit a trouble condition to the monitoring station.
• All circuits are power limited and must use type FPL, FPLR, or FPLP power limited cable.
• For polarity reversal operation, short the city tie connection.
Notes:
• The terminal blocks are “depluggable” for ease of wiring.
• The city tie interface is not power limited.
• Use either the PR-100’s City Tie or Reverse Polarity Interface Module--not both.
+
-
USE A SHORTING WIRE WHEN
THE CITY TIE IS NOT IN USE.
PRO
TECTED
+
-
2
1
S
1
2
S
1
1
2
2
S
S
POLARITY REVERSAL
24VDC OPEN
12VDC AT 3.5 mA
8 mA MAX SHORT.
(See Note 4)
PR-100
UNPROTECTED
+
+
-
-
DIN RAIL CONNECTION
TO EARTH GROUND.
CITY TIE LOCAL ENERGY
24 VDC UNFILTERED
TRIP COIL 14 OHMS,
210mA, 5mV RIPPLE.
CONFORMS TO NEMA STANDARD
SB3-1969 INTENDED FOR
CONNECTION TO POLARITY
REVERSAL CIRCUIT OF A REMOTE
STATION RECEIVING UNIT HAVING
COMPATIBLE RATINGS.
PROTECTOR
