2.0 Front Panel Indicators, Controls,
and Operation
2.1 Front Panel Indicators and Control Locations (Model
DSPL-420DS)
Note: The General Alarm LED and pushbutton, and the Acknowledge LED and
pushbutton, are active only on a system configured for Two Stage.
FleX-Net MP
Fire Control System
- System Normal -
May 04, 2020 12:00:00

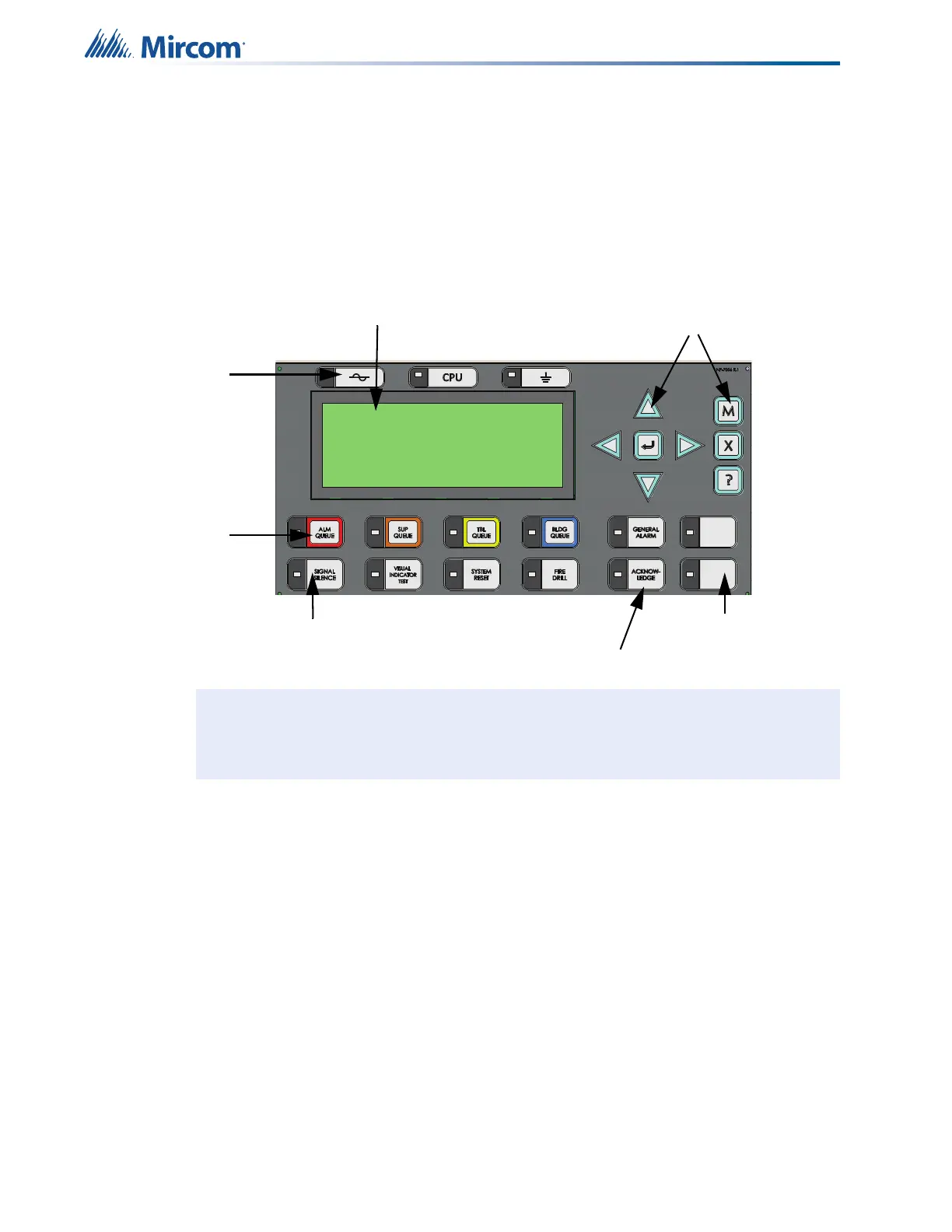

LCD Display - four lines,
20 characters per line
Cursor buttons, ENTER, MENU,
CANCEL, INFO
Queue controls and
indicators for Alarm,
Supervisory, Trouble,
and Building
Indicators for AC On,
CPU Fault, and
Ground Fault
Controls and Indicators for Signal
Silence, Visual Indicator Test,
System Reset, Fire Drill
Two configurable
switches and
amber LEDs
Controls and Indicators for
General Alarm and Acknowledge
(2 stage systems)
