9

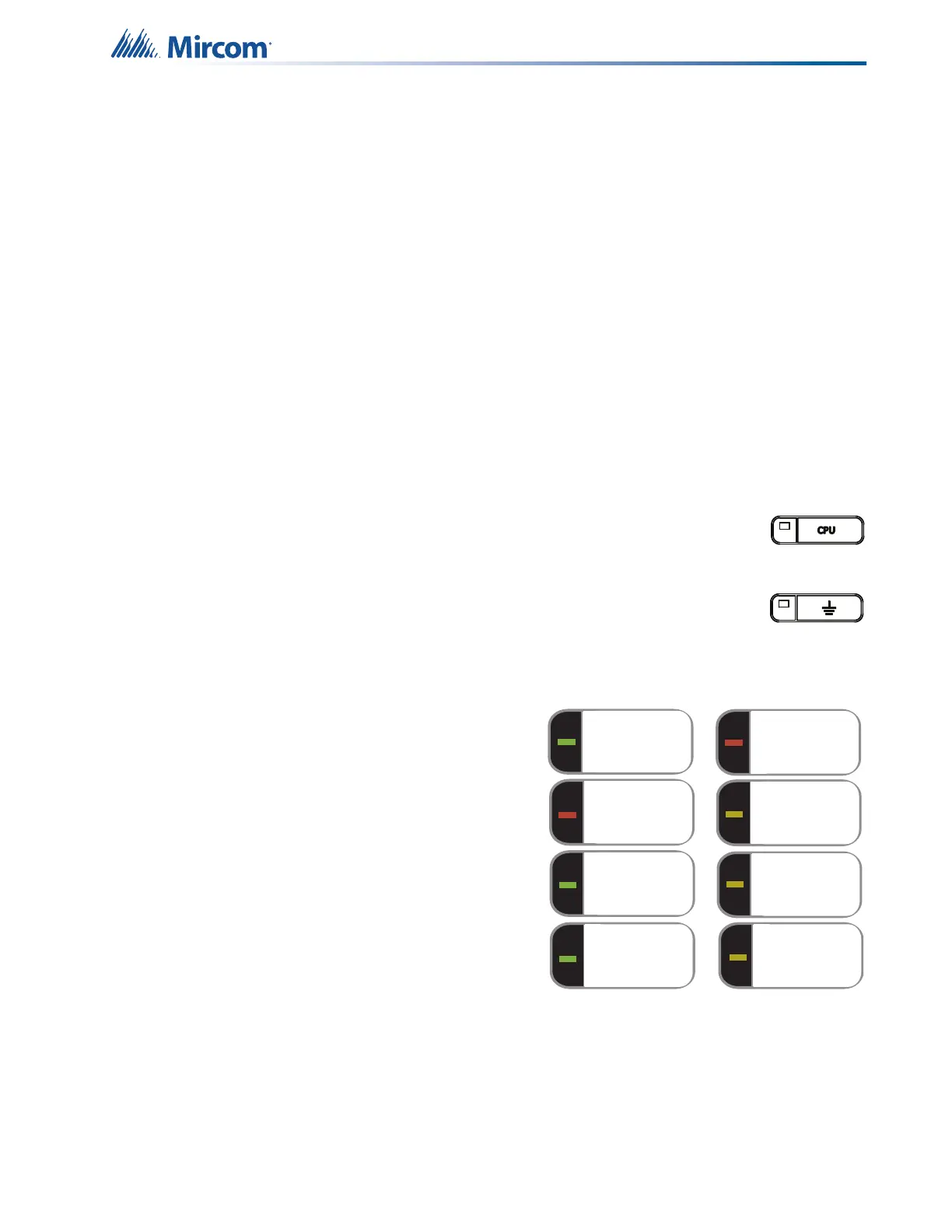

Front Panel Indicators, Controls, and Operation
2.4.4 Supervisory Queue LED
The Supv. (Supervisory) LED flashes amber when there is a supervisory alarm in the panel
resulting from any latching or non-latching supervisory circuit. The LED turns OFF if all non-
latching supervisory circuits are restored and there are no active latching supervisory circuits.
The Supervisory Queue LED illuminates steadily once all supervisory alarms in the
supervisory queue have been reviewed using the Supv. Queue button. Latching supervisory
alarms remain active until the panel is reset.
2.4.5 Trouble Queue LED
The Trouble LED flashes amber at the trouble flash rate when the panel detects any trouble
condition. The LED turns OFF after all non-latching troubles are cleared. The Trouble Queue
LED illuminates steadily once all troubles in the trouble queue have been reviewed using the
Trouble Queue button.
2.4.6 Building Queue LED
The BLDG Trouble LED flashes amber at the trouble flash rate when the panel detects any
building monitor condition. It turns OFF after all monitor troubles are cleared.
2.4.7 CPU Fault LED
The CPU Fault LED is on steady amber when the main CPU fails.
2.4.8 Ground Fault LED
The Ground Fault LED flashes amber at the trouble flash rate when the
Ground Fault Detector detects a ground fault on any field wiring. It turns OFF
after the fault is cleared.
2.4.9 Signal Silence LED
The Signal Silence LED flashes amber at the
trouble flash rate after indicating circuits are
silenced either by the Signal Silence button,
or by the Auto Signal Silence Timer. It turns
OFF after the signals are re-sounded by a
subsequent alarm.
2.4.10 Fire Drill LED
The Fire Drill LED turns ON steady amber
while Fire Drill is active.
2.4.11 General Alarm LED
The red General Alarm LED illuminates steadily after the General Alarm button is pressed, or
after the Auto General Alarm Timer times out. Once the General Alarm LED turns ON, it stays
active until the panel is reset.
2.4.12 System Reset LED
The amber System Reset LED illuminates steadily after the system reset button has been
pressed and the system is resetting.
SIGNAL
SILENCE
GENERAL
ALARM
ACKNOW-
LEDGE
FIRE
DRILL
SYSTEM
RESET
LAMP
TEST
CONFIGURABLE
SWITCH/LED 3
CONFIGURABLE
SWITCH/LED 7
