Mechanical and Chassis Installation

4.1.3 BB-5014 Mechanical Installation

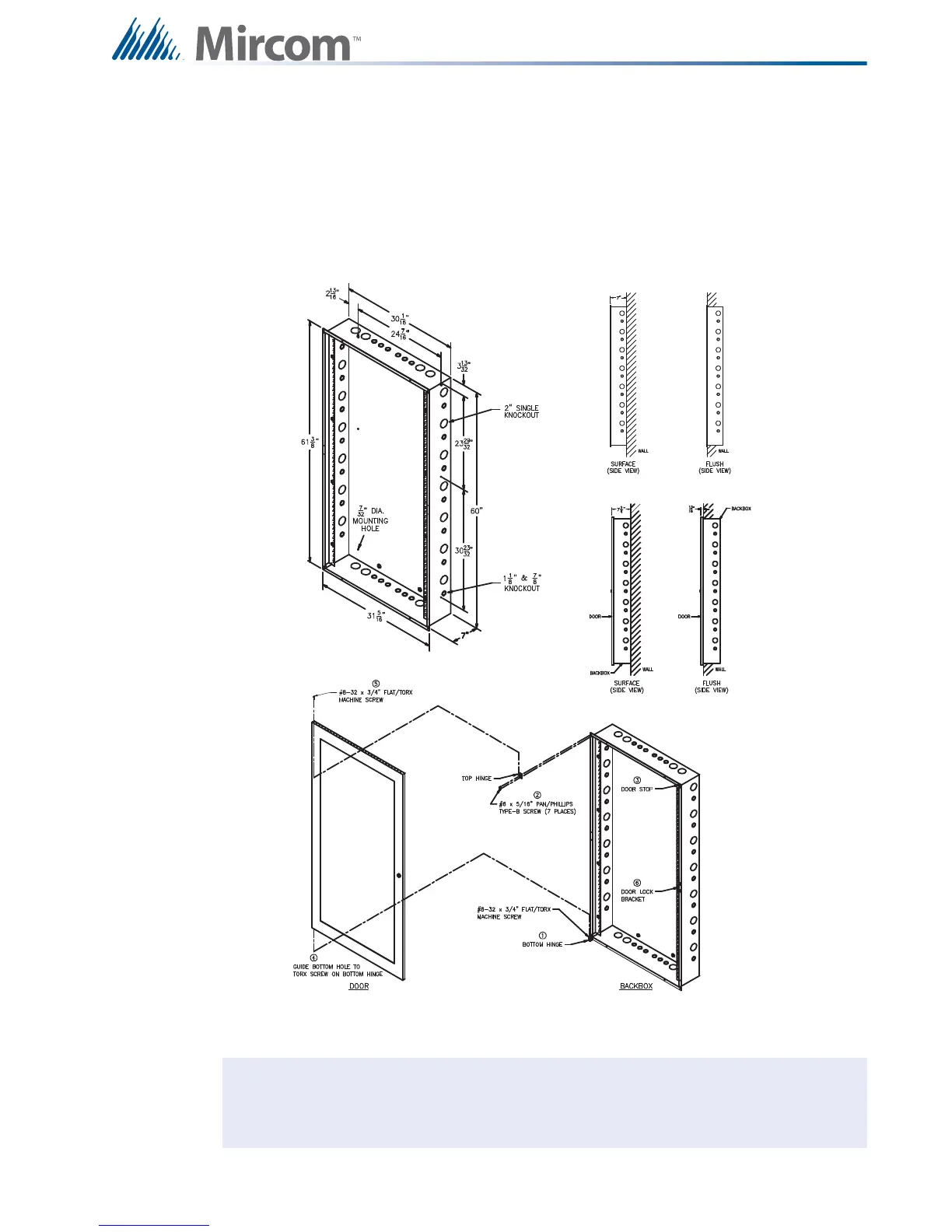

Figure 3 BB-5014 Installation Instructions and Dimensions

Material Cold rolled steel18GA (0.048”) thick cold rolled steel

16GA (0.059”) thick for backbox

14GA (0.075”) thick for door

Finish Painted except for hinges

Note: Leave bottom of box conduit free for batteries.

Backbox

BB-5014 Backbox

DOX-5014M Metal Door

Backbox with DOX-5014M Door

Default Chapter2
- Table of Contents2
1 Introduction4
2 Document Conventions6
3 System Components7
4 Mechanical and Chassis Installation15
5 Module Mounting Locations26
6 Display and Adder Modules Mounting Locations28
- FX-2003-6DS/FX-2003-12DS/FX-2003-6DS-16LED Compact Main Chassis28
- FX-2017(S)-12DS MID-Size Main Chassis28
- FX-2009(S)-12DS Large Main Chassis29
- ECX-0012 Expander Chassis for FX-2009-12DS29
7 Module Settings32
- Main Fire Alarm Modules (MD-764 Part of Main Chassis)32
- Main Fire Alarm Super Module (MD-757 Part of "S" Version Main Chassis)33
- RAX-1048TZDS Zone Display Module35
- IPS-2424DS Programmable Input Switches Module35
- Fan Damper Control Display Module (FDX-008W/WKI)36
- DM-1008A Hardwire Detection Adder Module39
- SGM-1004A Hardwire NAC Signal Adder Module40
- RM-1008A Hardwire Relay Adder Module42
- Polarity Reversal and City Tie Module (Model PR-300)43
- UDACT-300A Main Board44
- ALC-H16 Hardwire Loop Controller Module50
8 Field Wiring52
- Main Fire Alarm Module Terminal Connections52
- Analog Loop Wiring54
- NAC Signal Module (SGM-1004A) Terminal Connections61
- UDACT-300A Main Board Terminal Connections64
- Wiring Tables and Information66
9 System Checkout68
10 Indicators and Controls69
11 Operation75
- Single Stage Operation75
- Two Stage Operation76
- Pre-Signal Operation77
- UUKL Feature77
- Output Circuit Delay Operation77
- Circuit Types78
12 Appendix A: Specifications82
13 Appendix B: Compatible Devices88
- FX-2000 Series Compatible Addressable Loop Devices (UL)88
- FX-2000 Series Compatible Two-Wire Smoke Detectors (UL)89
- FX-2000 Series Compatible Four-Wire Smoke Detectors (UL Listed)91
- FX-2000 Series Compatible Signalling Devices (UL Listed)91
- FX-2000 Series Compatible Addressable Loop Devices (ULC)92
- FX-2000 Series Compatible Hardwire Smoke Detectors (ULC)93
- FX-2000 Series Compatible Synchronized Modules and Strobes94
14 Appendix C: Power Supply and Battery Calculations95
15 Appendix D: Remote Annunciator Panels97
16 Appendix E: DIP Switch Settings Summary99
17 Appendix F: Alarm Verification Timing101
18 Appendix G: Wiring for Supervised Output Module102
19 Appendix H: Label Requirements for Zone Identification103
