41
Module Settings
7.10 UDACT-300A Main Board
There are two jumpers on the UDACT-300A which are used for operation/configuration
purposes. Jumper JW1 is used to reset the default passcode. Jumper JW2 is required for
configuring
the UDACT-300A. Refer to Figure 22 below for location of jumpers, cable
connections, pushbutton and LEDs. Table 2 following, provides a description of the user items
on the UDACT-300A.

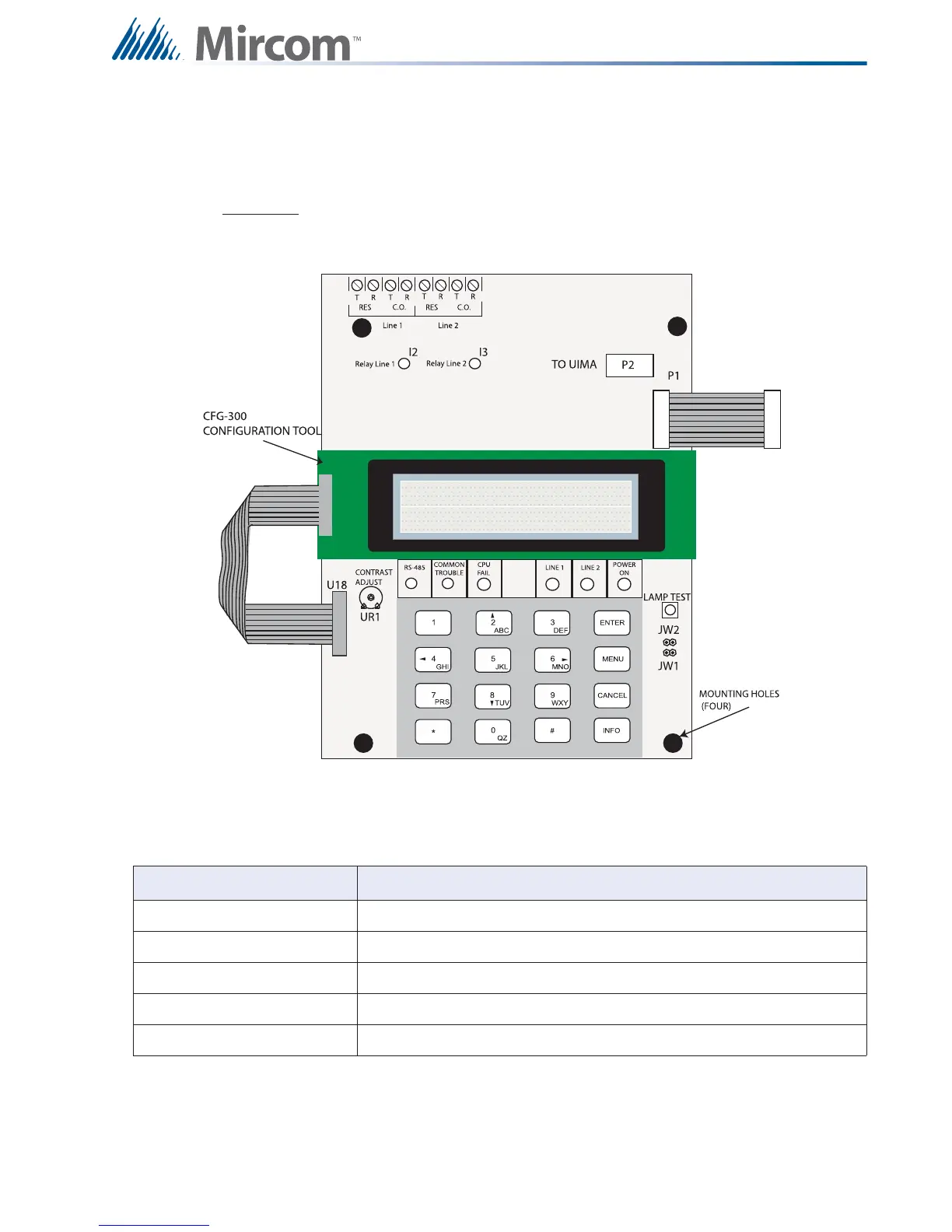

Figure 27 UDACT-300A Board Layout
Table 10 UDACT-300A Cable Connectors and Miscellaneous
Cable Connector Function
P1 Ribbon Cable for connecting to P4 of FX-2000 FACP main board.
P2 RS-232C/RS-485 Connection for computer configuration.
U18 Connector for CFG-300 Configuration Tool
Lamp Test button Connector for CFG-300 Configuration Tool
UR1 Potentiometer This potentiometer is for adjustment of the CFG-300 LCD contrast.
13:21 MON 2015-08-03
CONNECT RIBBON
CABLE FROM P1
TO MIRCOM FIRE
ALARM CONTROL
PANEL
SYSTEM NORMAL
