Module Settings

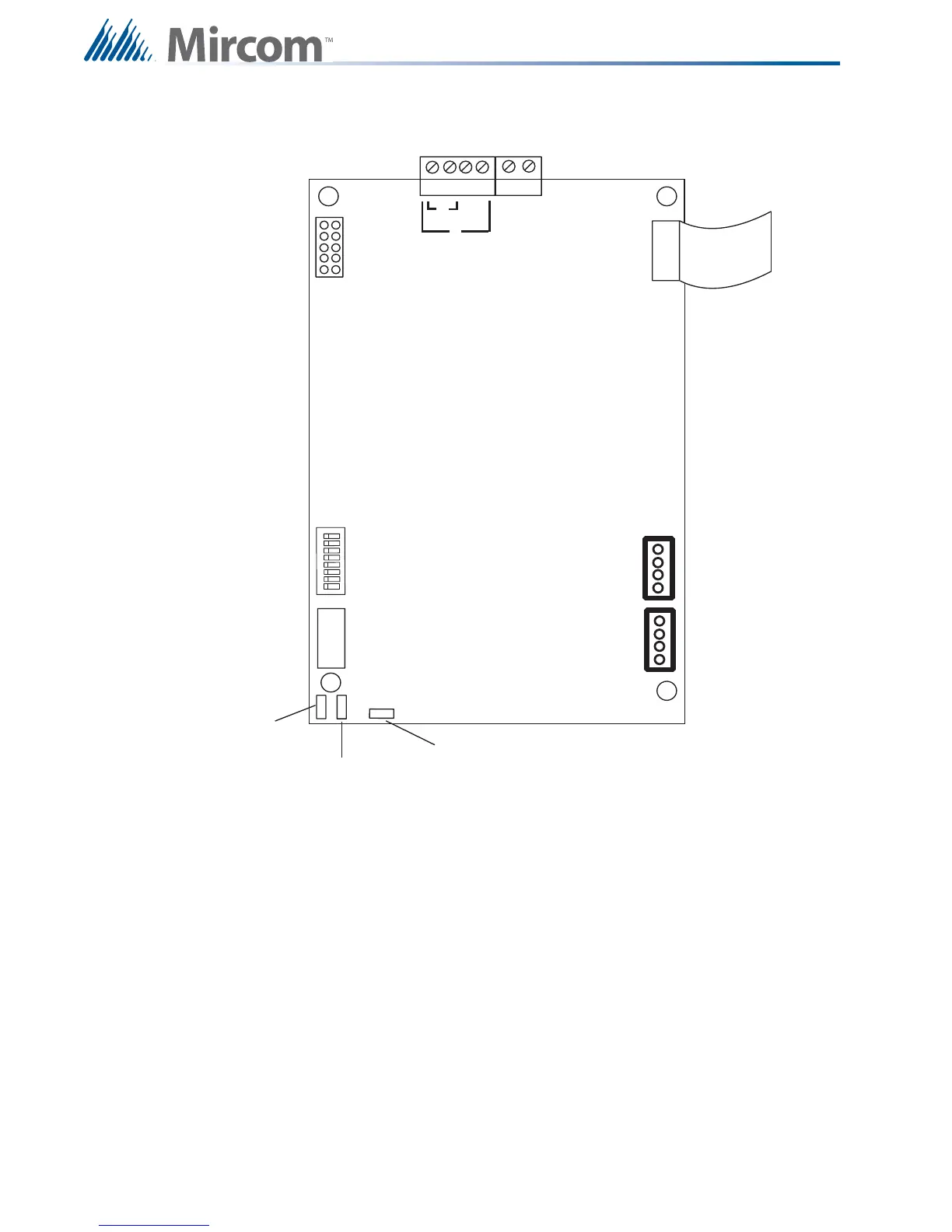

Figure 28 ALC-198S Single Intelligent Analog Loop Controller Module
Mount the ALC-198S Single Intelligent Analog Loop Controller module as described in the
section Display and Adder Modules Mounting Locations on page 25. The module may be
mounted over the main chassis board or in any position that an adder module is mounted.
1
8
RS-485
CABLE
RS-485
ADDRESS
DIP
SWITCH
BDM
PORT
JW2 - A
JUMPER IS
PLACED HERE
TO ENABLE
WATCHDOG
TIMER. THIS
IS JUMPER=S
NORMAL
LOCATION.
JW1 - JUMPER IS
PLACED HERE TO
RESET HARDWARE
POWER
CABLE
(OUT)
POWER
CABLE
(IN)
LOOP A
IN
OUT
+ - + -
B
A
DIP SWITCHES ARE FOR
THIS BOARD=S ADDRESS.
SW-1 IS THE LEAST
SIGNIFICANT DIGIT (BINARY).
ACTIVE POSITION IS OFF.
JW3 - JUMPER
FROM JW2 IS
PLACED HERE TO
BYPASS
WATCHDOG FOR
FACTORY
DOWNLOADING
USING BDM
P3
P4
P5
P1
P2
SHIELD

Mircom FX-2000 series Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Network	Optional
Communication	RS-232, RS-485
Programming	Via keypad or PC
SLC Loops	1
NAC Outputs	4
Communication (Additional)	Optional Ethernet
Input Voltage	120 VAC or 240 VAC, 50/60 Hz
Battery Charging Current	1.5 A
Auxiliary Power Output	24 VDC
Operating Temperature	0°C to 49°C (32°F to 120°F)
Relative Humidity	Up to 93% non-condensing
