Mitel 6869i SIP Phone Release 4.0.0 SP1 User Guide
118

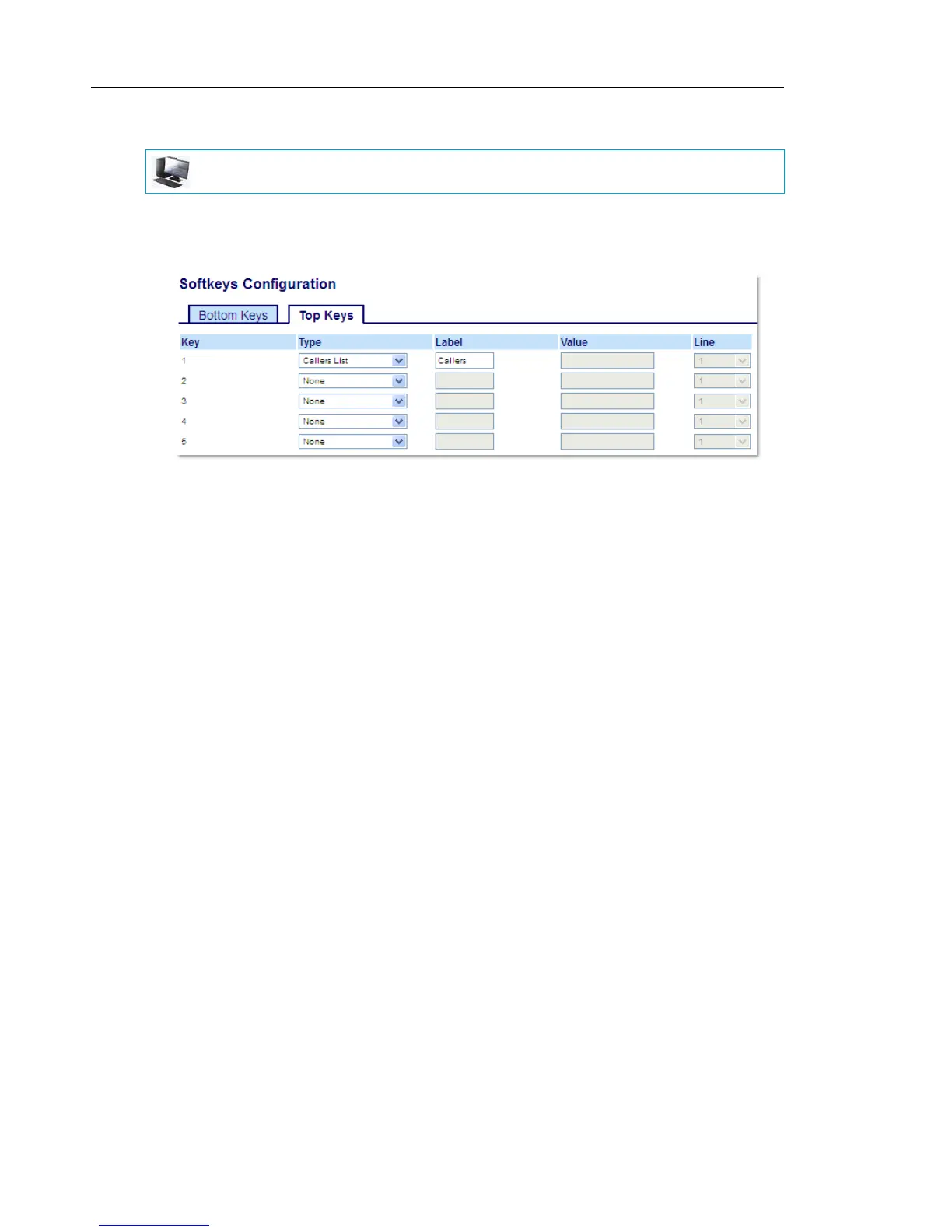

CONFIGURING A CALLERS LIST KEY USING THE MITEL WEB UI
1. Click on Operation > Softkeys and XML.
or
Click on Operation > Expansion Module <N>.
Softkeys
2. Select from Key 1 through Key 44 on the Top keys.
or
Select from Key 1 through Key 24 on the Bottom keys.
3. In the Type field, select Callers List.
4. In the Label field, enter a label to apply to this key.
5. In the state fields, check (enable) or uncheck (disable) the states you want to apply to this
softkey.
Expansion Module Keys
6. Select from Key 1 through Key 16 (M680i) or Key 84 (M685i).
7. In the Type field, select Callers List.
8. Click Save Settings.
MITEL WEB UI
