Mitel 6869i - Busy Lamp Field (BLF) Key

Mitel 6869i SIP Phone Release 4.0.0 SP1 User Guide
92

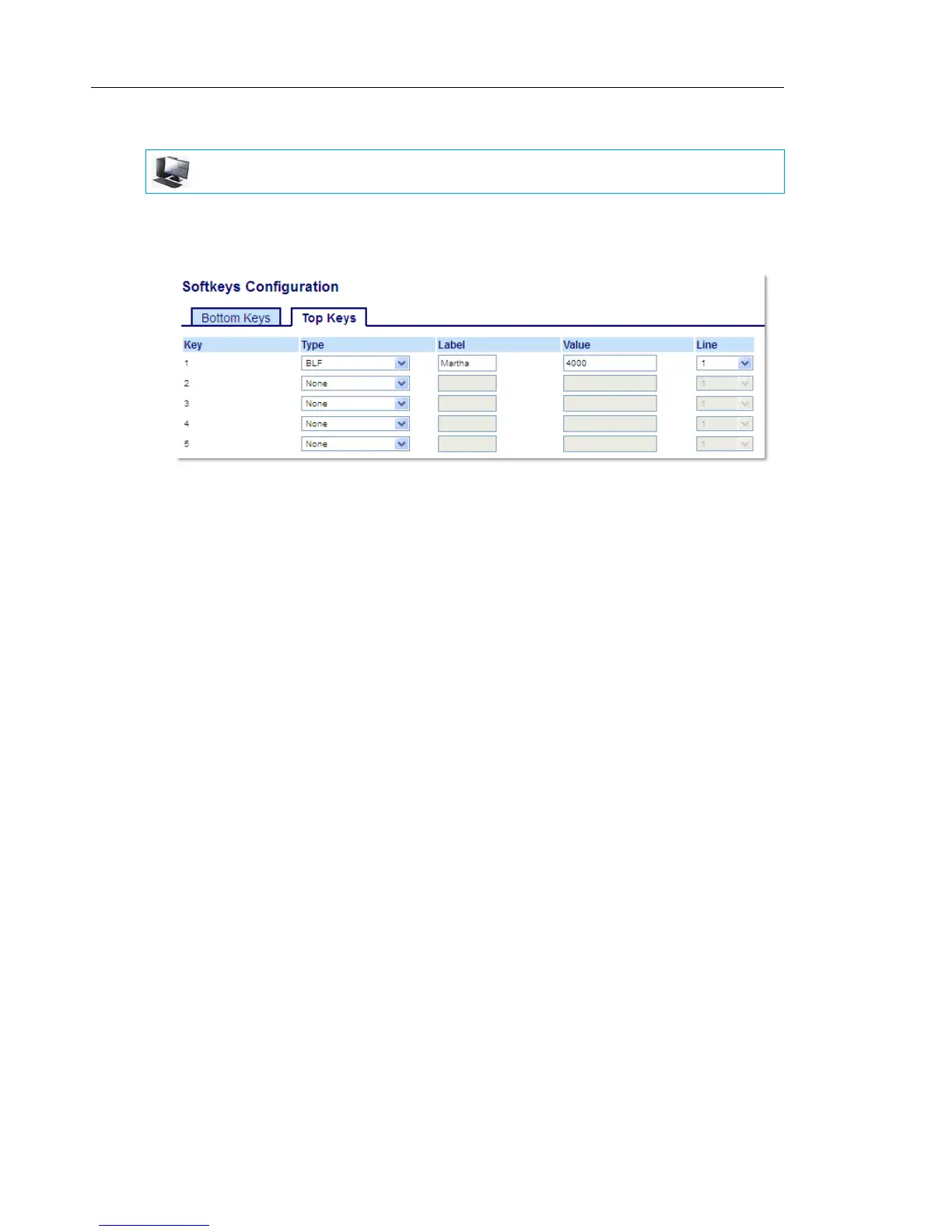

CONFIGURING A BLF KEY USING THE MITEL WEB UI
1. Click on Operation > Softkeys and XML.
or
Click on Operation > Expansion Module <N>.
Softkeys
2. Select from Key 1 through Key 44 on the Top keys.
3. In the Type field, select BLF to apply to the key.
4. In the Label field, enter a label to apply to this key.
5. In the Value field, enter the phone number or extension you want to monitor.
6. In the Line field, select a line for which to apply this key. Valid values are:
• global
• 1 through 24
Expansion Module Keys
7. Select from Key 1 through Key 16 (M680i) or Key 84 (M685i).
8. In the Value field, enter the phone number or extension you want to monitor.
9. In the Line field, select a line for which to apply this key. Valid values are:
• global
• 1 through 24
10. Click Save Settings.
MITEL WEB UI
