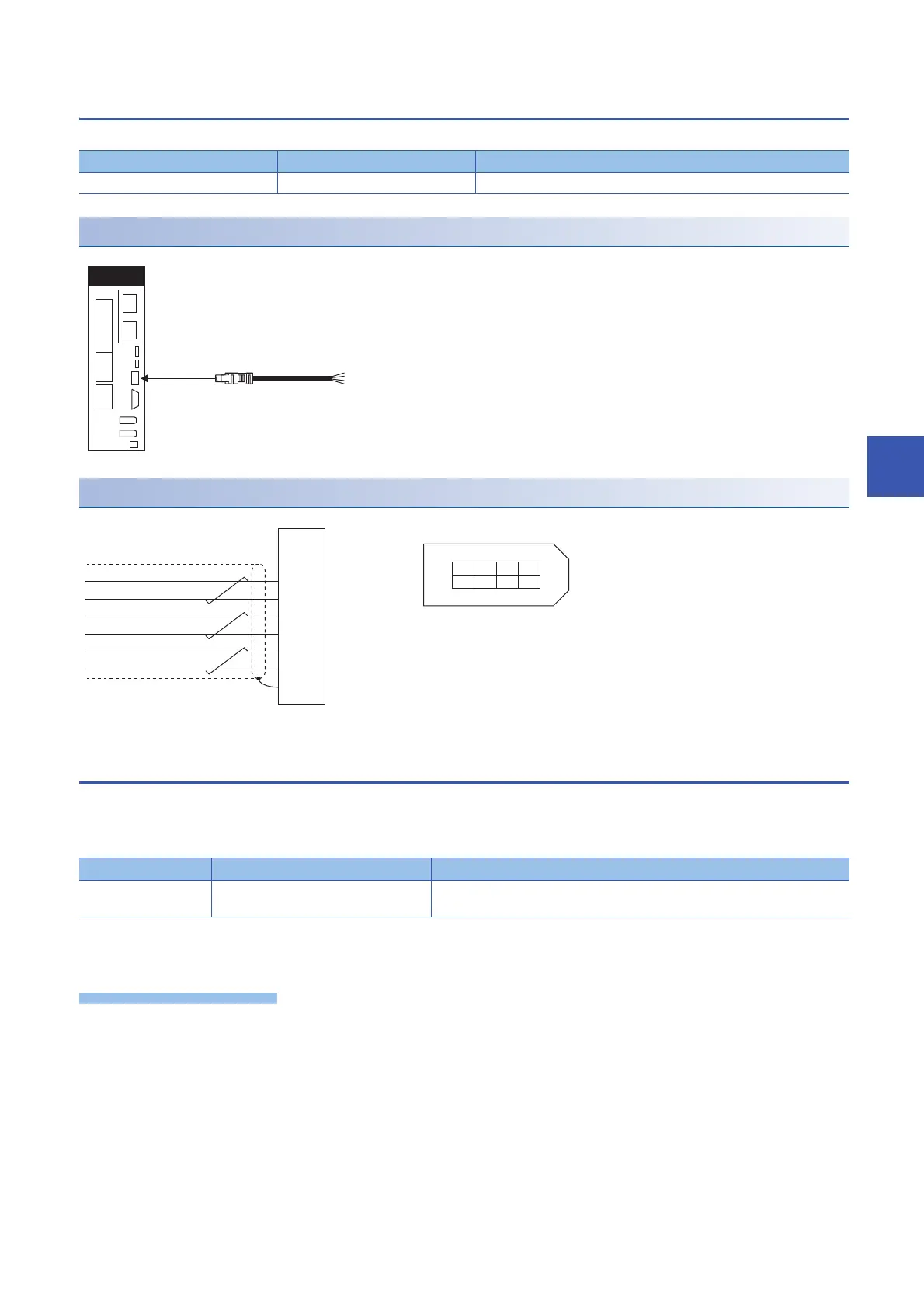

MR-D05UDL3M-B STO cable
This cable is for connecting an external device to the CN8 connector.
Configuration diagram
Internal wiring diagram
*1 Do not use the two core wires with orange insulators (with red or black dots).
Ethernet cable [G] [WG]
For Ethernet cables used for network wiring, refer to "Communication specifications" in the User's Manual (Communication
Function).
A commercially available product example is as follows. For the latest product information, contact the manufacturer.
*1 The SC-E5EW cable is for in-cabinet and indoor uses. The SC-E5EW-L cable is for outdoor use.
For cables other than SC-E5EW(-L), refer to the CC-Link Partner Association website (https://www.cc-link.org/en/).
Precautions
• When branching the CC-Link IE TSN network using a switching hub, use a switching hub (Class B) that is recommended by
the CC-Link Partner Association. Although a switching hub (Class A) can also be used, there are restrictions on the type of
topology that can be used. For further information, refer to "MELSEC iQ-R Motion Module User's Manual (Startup)".
Cable model Cable length Application
MR-D05UDL3M-B 3 m Connection cable for the CN8 connector
Model Manufacturer Contact
SC-E5EW(-L)
*1
Mitsubishi Electric System & Service Co.,
Ltd.
Please consult your local Mitsubishi Electric representative.
CN8
MR-D05UDL3M-B
1
2
3
6
7
STO2
TOFB1
TOFB2
STO1
TOFCOM8
4
5
STOCOM
*1
2
1
64 8
357
CN8 connector
Yellow (dots: black)
Yellow (dots: red)
Gray (dots: black)
Viewed from the connection part.
Gray (dots: red)
White (dots: black)
White (dots: red)
Plate
Shield
