Mitsubishi Electric Melservo-J5 MR-J5 Series - Page 231

6 OPTIONS AND PERIPHERAL EQUIPMENT
6.16 EMC filter (recommended)
229
6

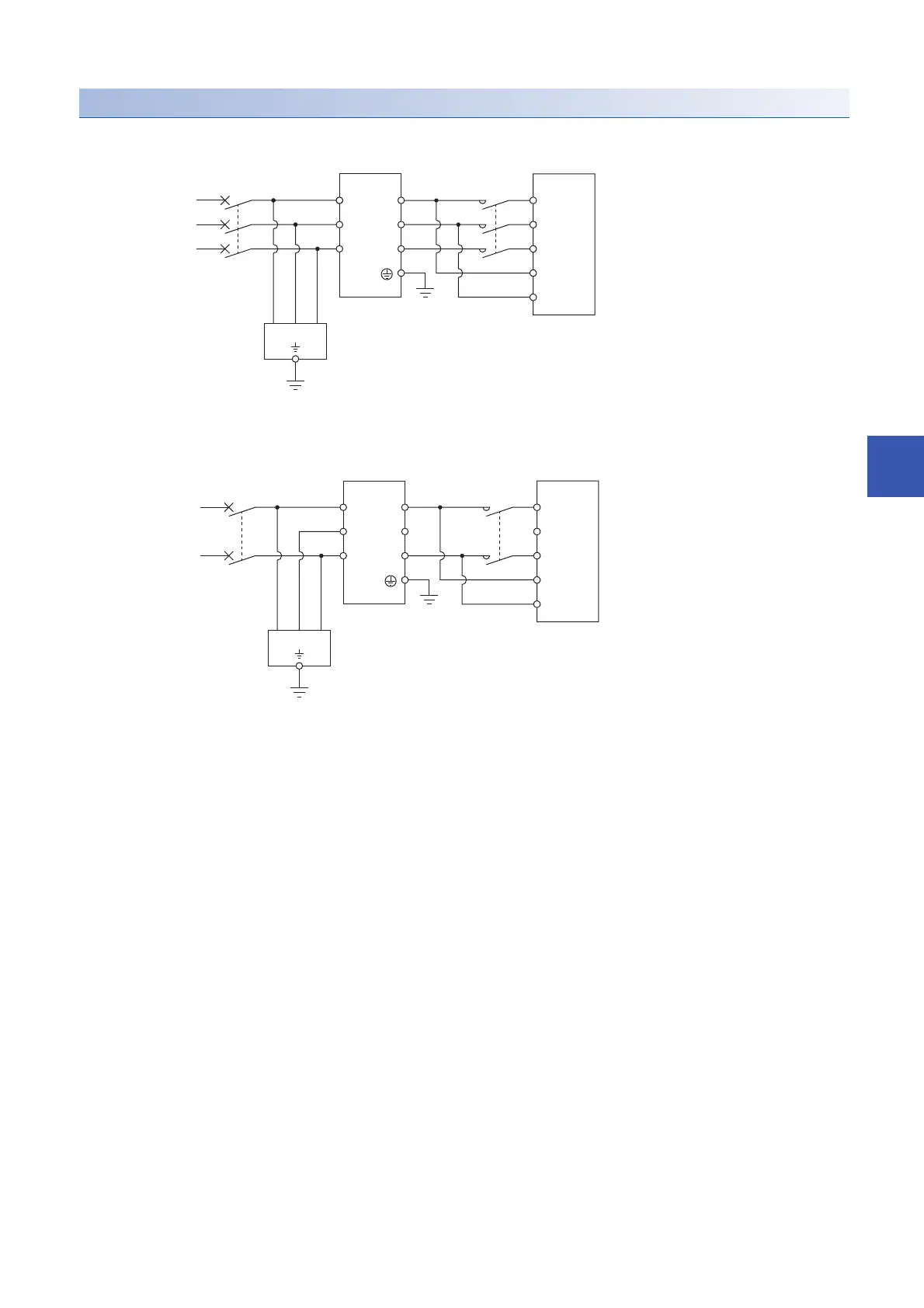

Connection example
■For 3-phase 200 V AC to 240 V AC power supply
*1 When a surge protector is used.
■For 1-phase 200 V AC to 240 V AC power supply
*1 Connect the power supply to L1 and L3. Leave L2 open.
*2 When a surge protector is used.
MCCB
1
2
3
1
2
3
4
5
6
MC
L1
L2
L3
L11
L21
Servo amplifier
Surge protector
*1
EMC filter
200 V AC to 240 V AC
3-phase
MCCB
1
2
3
1
2
3
4
5
6
MC
L1
L2
L3
L11
L21
Servo amplifier
Surge protector
*2
EMC filter
1-phase
*1
200 V AC to 240 V AC
