6 INSTALLATION AND WIRING
6.9 Wiring of I/O Module and External Device
Wiring method

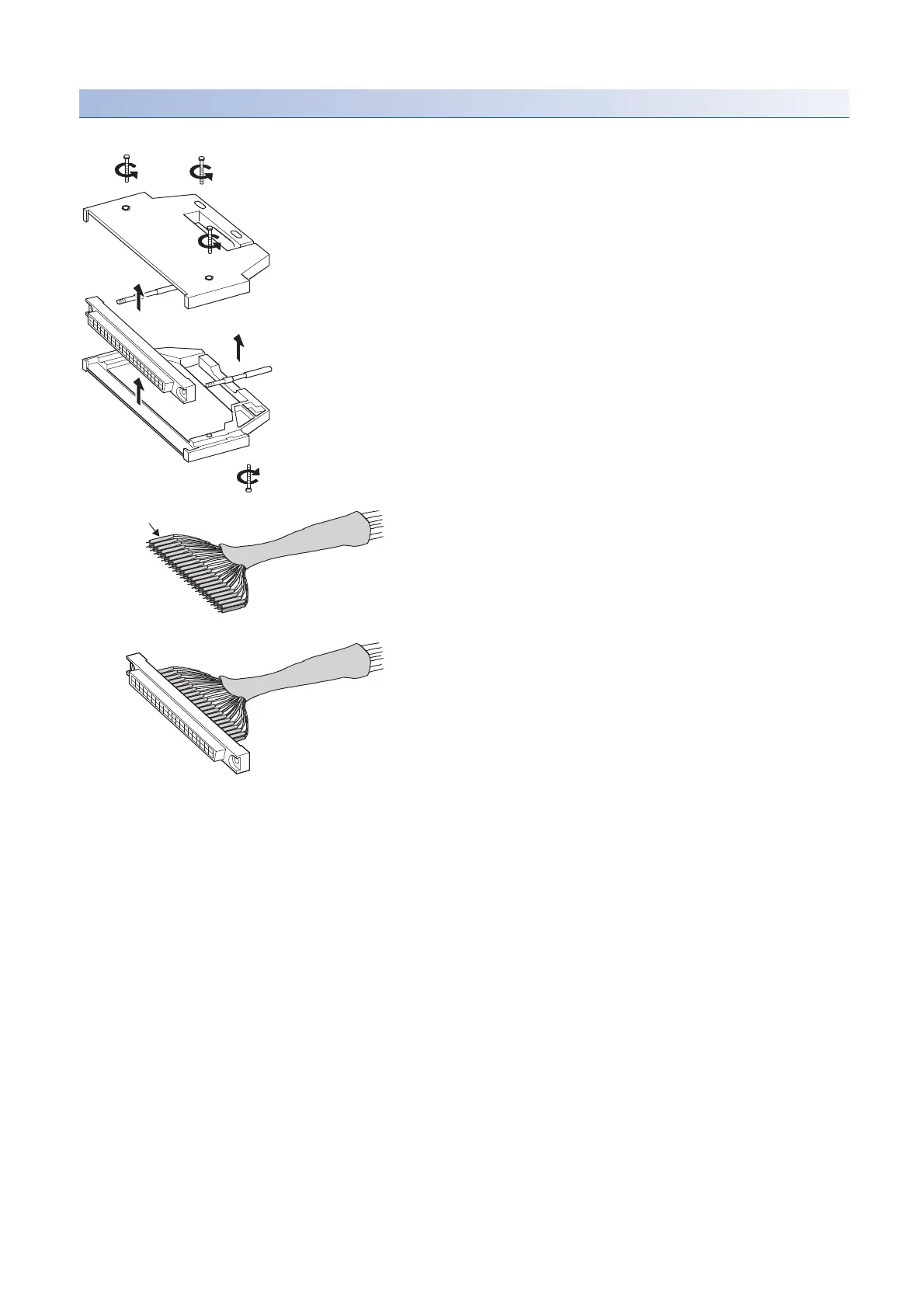

■For A6CON1 and A6CON4
1. Loosen four screws of the connector and remove the
screws.
2. Remove the covers from the body.
3. Solder the wires and cover the wires with heat
shrinkable tubes.
4. Check the terminal layout and connect the wires to the
connector body.
To Next Page
