5.3.6 Parameter 1 (B-12100)
Outline

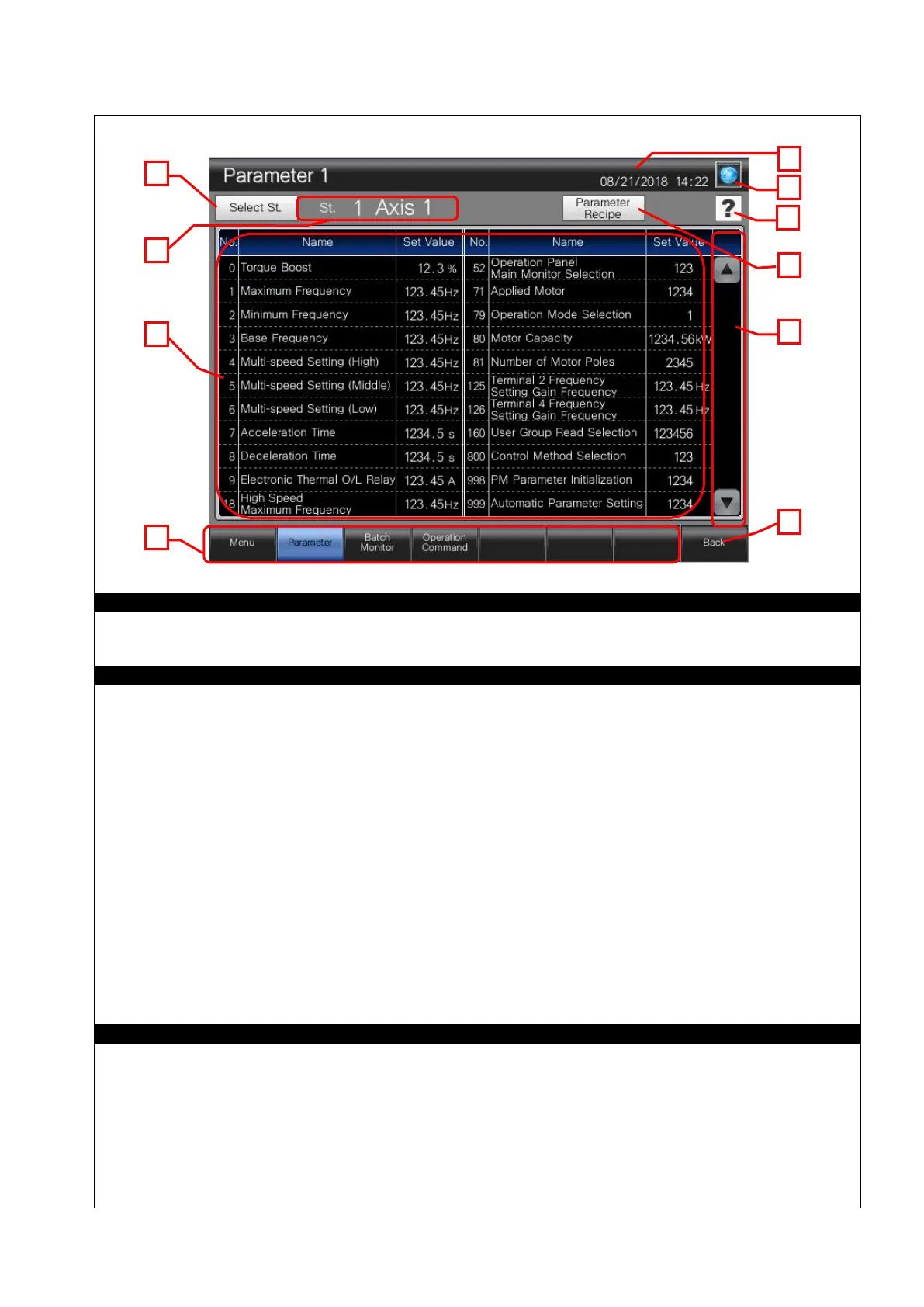

This screen is used to set the inverter parameters.
Description
1. Displays the [Station Number Switching] window.
2. Displays the station number and name for monitoring.
3. Displays parameter data names and set values. Touch the values for change.
4. Displays the [Parameter Recipe] setting screen.
5. Switches to the [Manual Display] screen and the Chapter 5. Parameters from “Inverter FR-A800
Instruction Manual (Detailed)” will be displayed.
6. Scrolls the screen to view all the parameter items. It is being displayed in gray color and does not
function as this part will be supported in the future upgrade.
7. Switches between the screens. The blue switch indicates the currently displayed screen and does not
switch the screen.
8. Switches to the previously opened screen.
9. Displays the current date and time. Touch the date and time to open the [Clock Setting] window.
10. Opens the [Language Setting] window.
Remarks
・ The recipe function and screen script is used for parameter recipe operation. For the details on the recipe
function and script, please refer to “5.6 Recipe List” and "5.7 Script List" respectively.
・ The inverter will retain the speed and rotation set with the Operation Command screen even when the
screen is switched.
・ When a system alarm occurs, the alarm message will appear at the lower portion of the screen. Touching
the left end of the message changes the display position of the message in the order of upper, center, and
lower. Touching the other part of the message displays the [Alarm Reset] window.
