4.2 The Output Terminal Assignment Settings
In this sample, the functions are assigned to the output terminals and the output signals are displayed on the GOT
screen.The output terminals and the assigned functions are listed in the following table.
Item
Parameter
Set Value
Function
Output Terminal RUN
Pr.190
211
Upper Limit Warning Detection
Output Terminal SU
Pr.191
1
Up to Frequency
Output Terminal IPF
Pr.192
2
Instantaneous Power Failure/Undervoltage
Output Terminal OL
Pr.193
3
Overload Warning
Output Terminal FU
Pr.194
4
Output Frequency Detection
Output Terminal ABC1
Pr.195
99
Fault
Output Terminal ABC2
Pr.196
212
Lower Limit Warning Detection
5. SCREEN SPECIFICATIONS
5.1 Display Language
The language of the text displayed on the screen can be switched between Japanese, English, and Chinese
(Simplified). The texts in three languages are registered in the columns No.1 to No.3 respectively in the comment
group No. 300 to No.340 as well as No.500 as shown below. When the column No. is stored in the language
switching device, the text in the language corresponding to the column No. will be displayed.
Column No.
Language
1
English
2
Japanese
3
Chinese (Simplified)

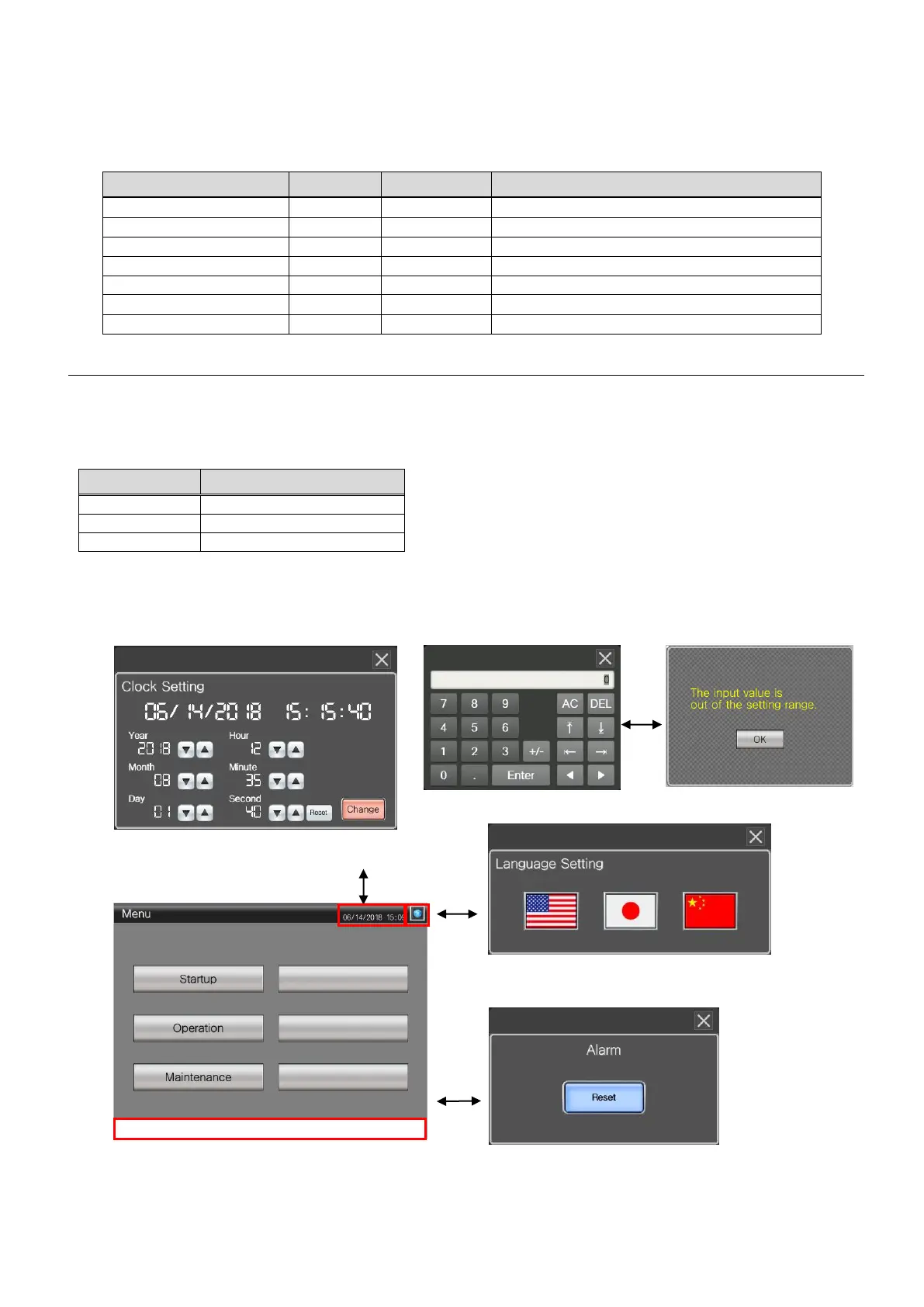

5.2 Screen list/transition
5.2.1 Screen list/transition (common)
Window screen W-30001: Alarm Reset
Window screen W-30003: Clock Setting
Window screen W-30002: Language
Setting
Base screen B-12000:
Menu and other base screens
System Alarm
Key Window
Window screen W-14900:
Out of Input Range Dialog
