FX2N-32DP-IF Profibus-DP Interface Unit Introduction 1
1-2
1.2 External Dimensions and Each Part Name
Dimensions: mm (inches) Weight: Approx. 0.4 kg (0.88 lbs)
Accessory: GSD files (FD: 1 piece)

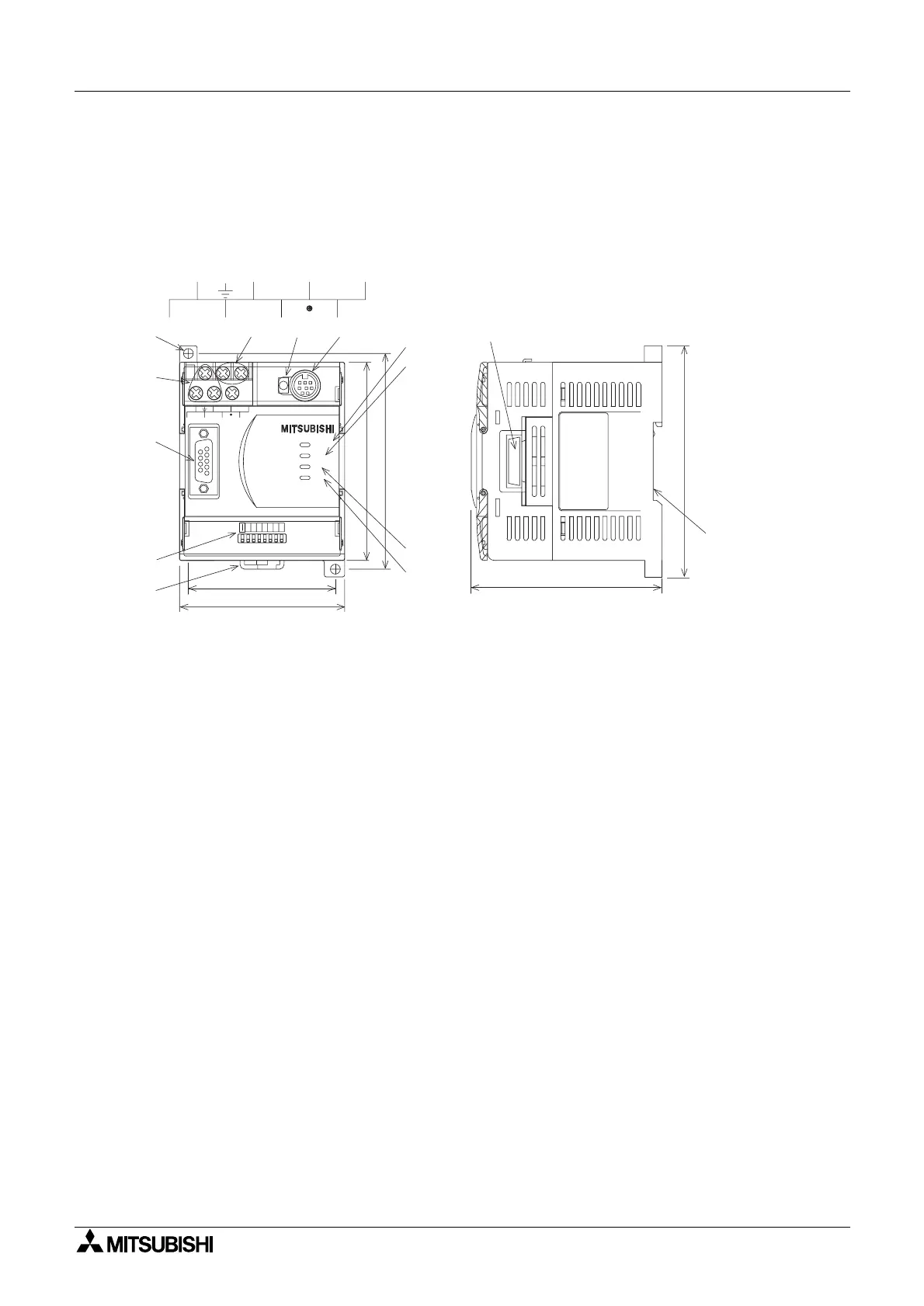

Figure 1.1:External Dimensions
a) Connector for Profibus cable (D-SUB 9 pin)
b) Power supply terminals (screws terminal: M3.5 (0.14"))
c) Direct mounting hole (2-
φ
4.5 (0.18"))
d) 24 V DC power terminal (screws terminal: M3.5 (0.14"))
e) RUN/STOP switch: When this switch is in the RUN position, the 32DP-IF will exchange
data with extension units/blocks and special function blocks. If this
switch is in the STOP position, the 32DP-IF will exchange only input
data with extension units/blocks.
f) Communication port for FX-20P-E and personal computer
g) POWER LED : ON when AC power is supplied.
h) RUN LED : ON when 32DP-IF is exchanging data with extension units/blocks and
special function blocks.
i) BF LED : ON when a communication error is detected (No data exchange).
j) DIA LED : ON when notice of diagnostic data is detected.
k) Hook for mounting DIN rail
l) DIP switches for slave address of this unit
m)Connector for extension cable
n) Groove for mounting DIN rail (DIN rail width: 35 mm (1.38"))
