Address Setting 5
5-1
5. Address Setting

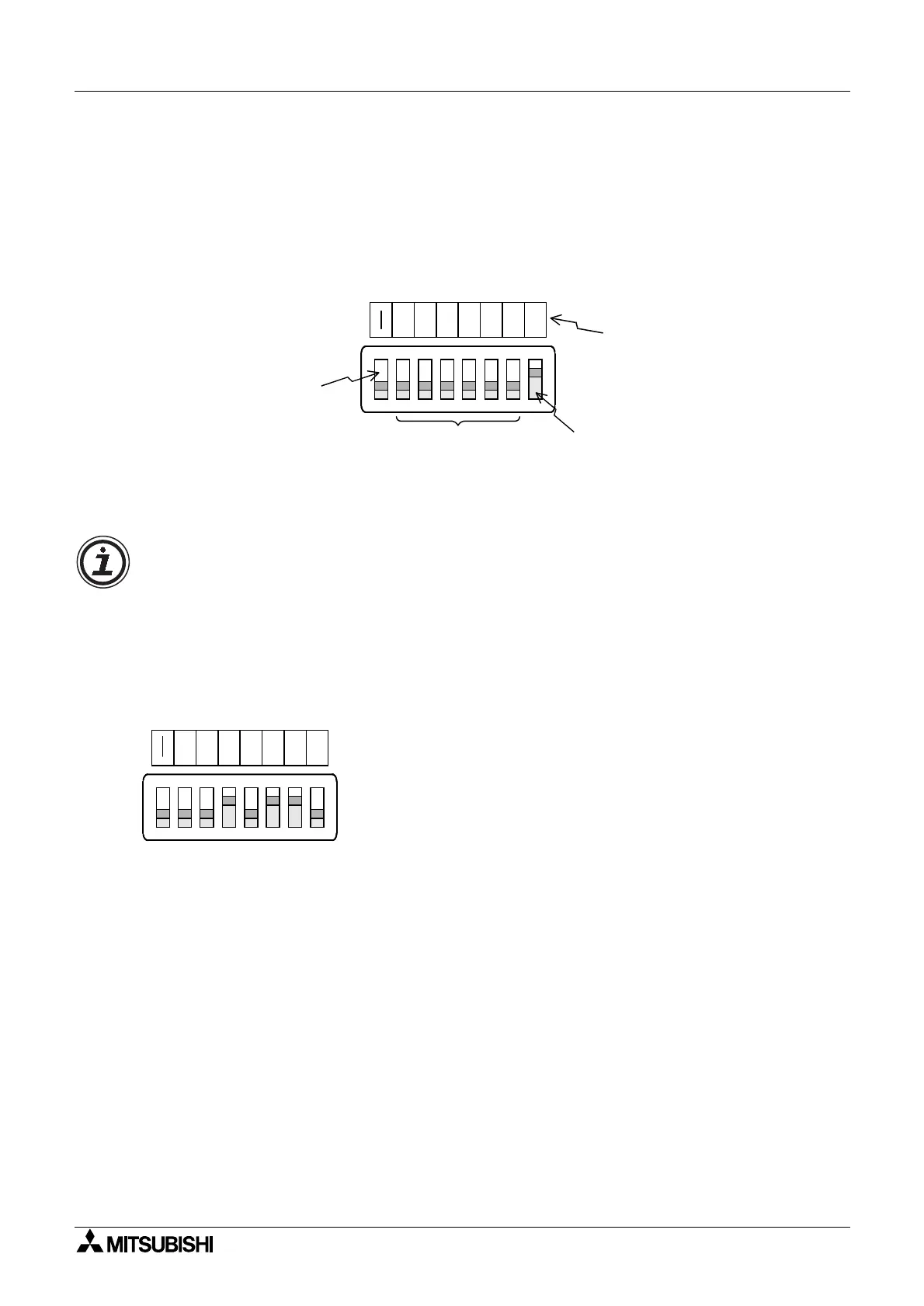

5.1 Setting Address
Slave address of 32DP-IF for Profibus network is set by the ON/OFF configuration of DIP
switches. Slave address setting range is 0 ~ 126. When 32DP-IF’s power supply is turned ON,
the slave address is the sum total of these DIP switch values.DIP Switches
Note:
If the address of 32DP-IF is changed, the 32DP-IF must be turned OFF and ON again in
order to activate the new address.
5.2 Example Address Setting
If slave address of 32DP-IF is set to “22”, DIP switches are as shown below.
Figure 5.1:Address Setting
These DIP
switches are OFF.
This DIP switch is not
used for the address
setting. Please leave in
the OFF position.
This DIP switch is ON.
ON
OFF
64 32 16
8 4 2 1
This is DIP switch value.
ON
OFF
64 32 16
8 4 2 1
FX2N-32DP-IF Profibus-DP Interface Unit
