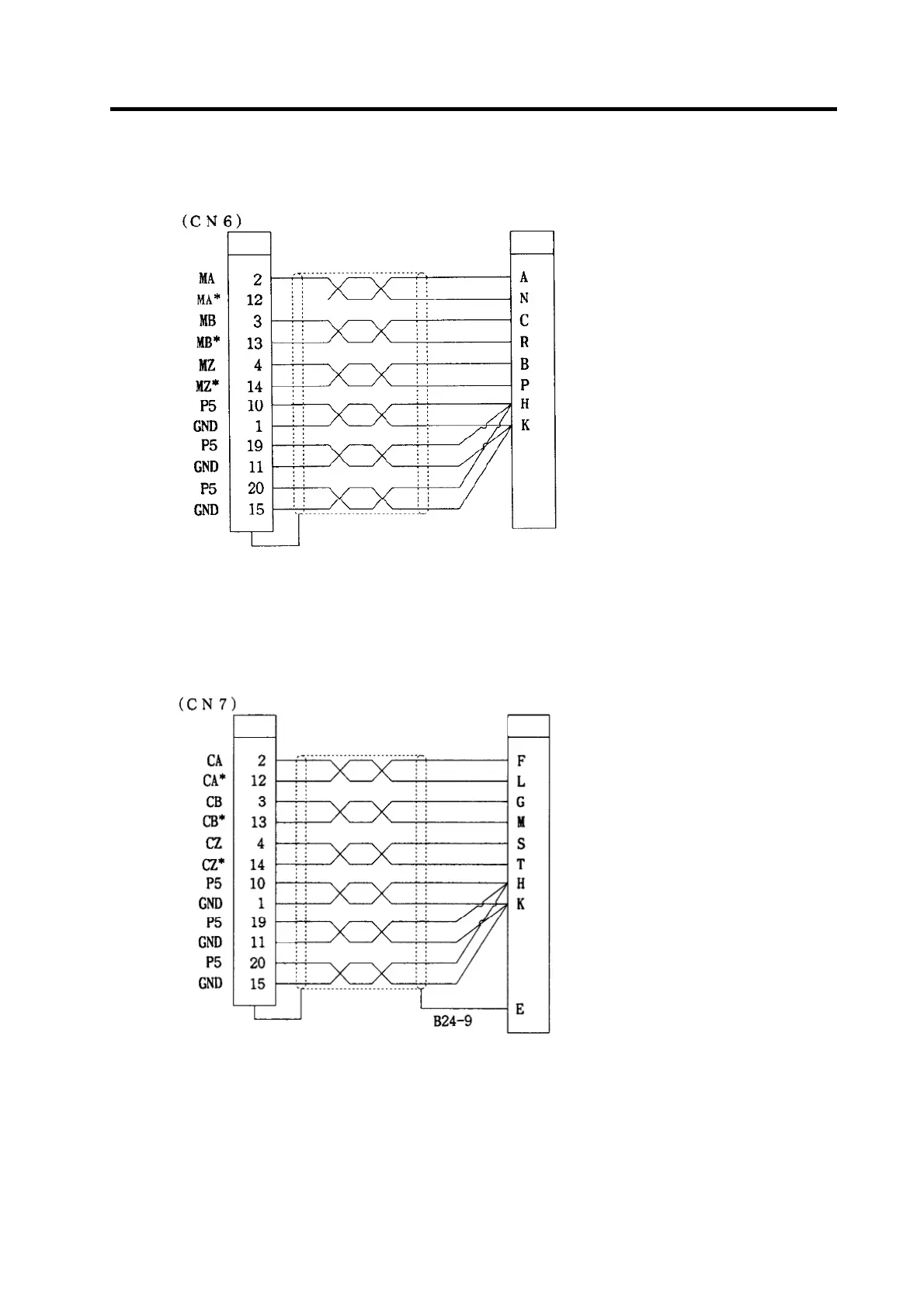

Appendix 1. Cable and Connector Specifications

A1 - 5

Drive unit connector

Detector connector

Pin No.

Green

White

Purple

White

Yellow

Brown

Red

Blue

Black

Purple

Brown

Drive unit connector

Detector connector

Pin No.

Green

White

Purple

White

Yellow

Brown

Red

Blue

Black

Purple

Brown
