Mitsubishi MELDAS MDS-C1

2. Wiring and Connection
2 - 28

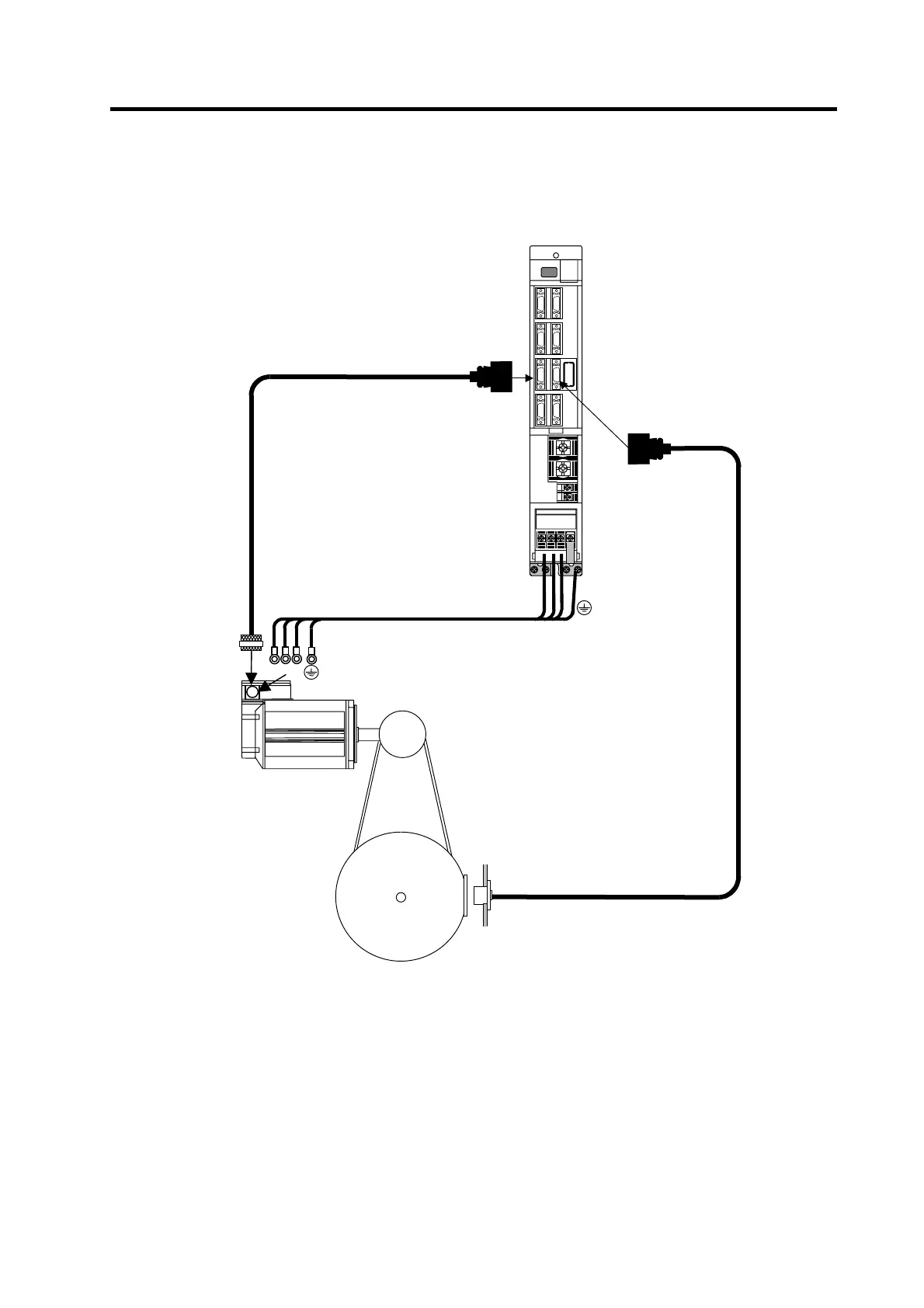

(2) Connecting the magnetic sensor
Refer to section (1) for connection with the spindle motor.
MDS-C1-SP
Magnetic sensor
CN6
U V W
Max. 30m
CN5
Spindle
Power cable
Option cable : CNP5S
U V W
Option cable : CNP6M
Spindle motor
