6. BASIC INSTRUCTIONS
6 − 54
MELSEC-A
Program Examples BMOV

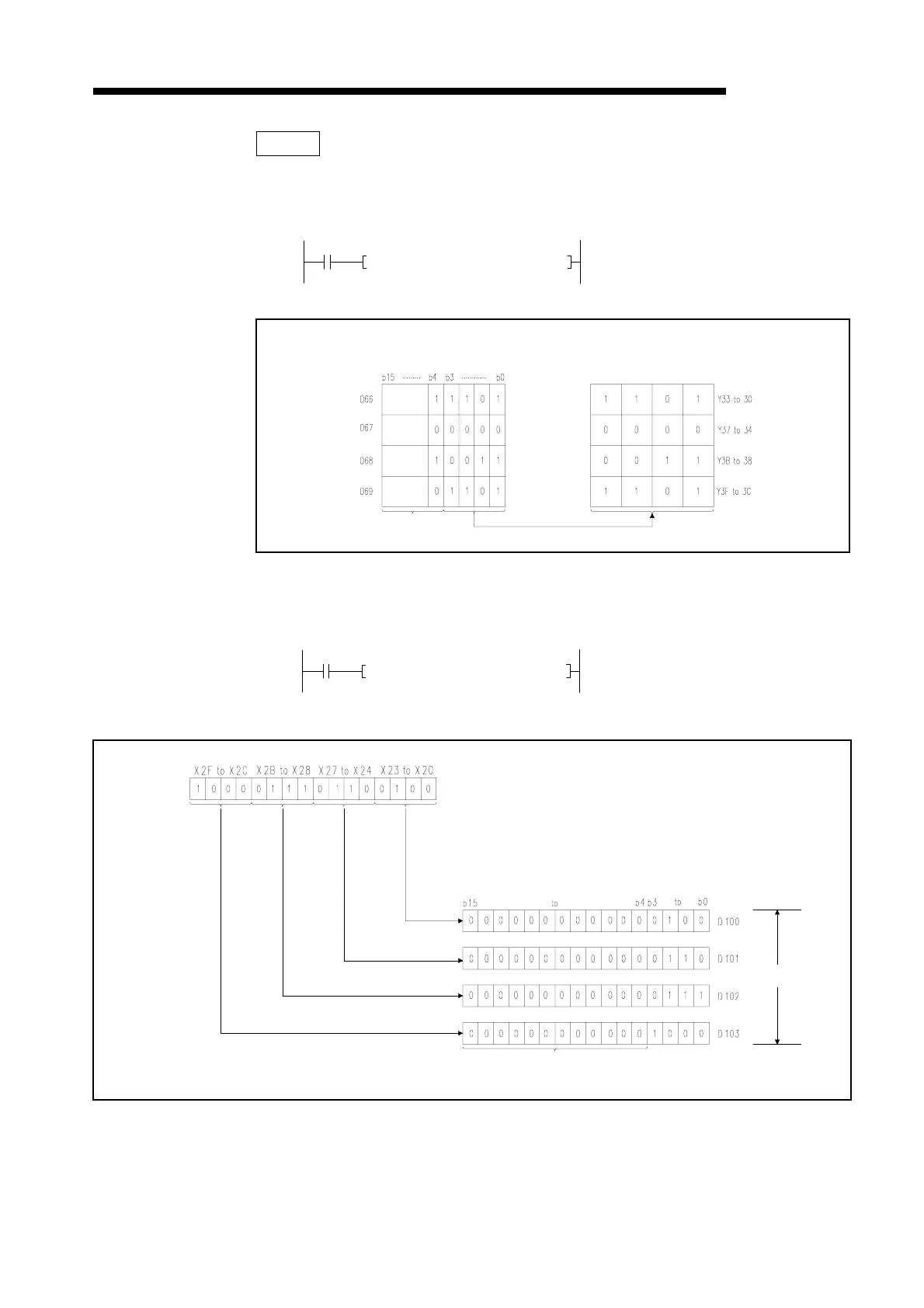

(1) Program which output the data of the lower 4 bits of D66 to 69 to the Y30 to 3F
in units of 4 points.
(2) Program which outputs the data of X20 to X2F to D100 to D103 in units of 4
points.
M9038
K1 K
BMOV D66 Y030 4
0
• Coding
0 LD M9038
1 BMOV D66 K1Y030 K4
10 END
M9038
K1 K
BMOV X020 D100 4
0
• Coding
0 LD M9038
1 BMOV D66 D100 K4
10 END
Before execution
(Transfer source)
After execution
(
Transfer destination
)
Ignored
Before
execution
After execution (destination)
4 pcs.
Turn to 0.
