Replacement of light bulbs
Vehicle care and maintenance 9-37

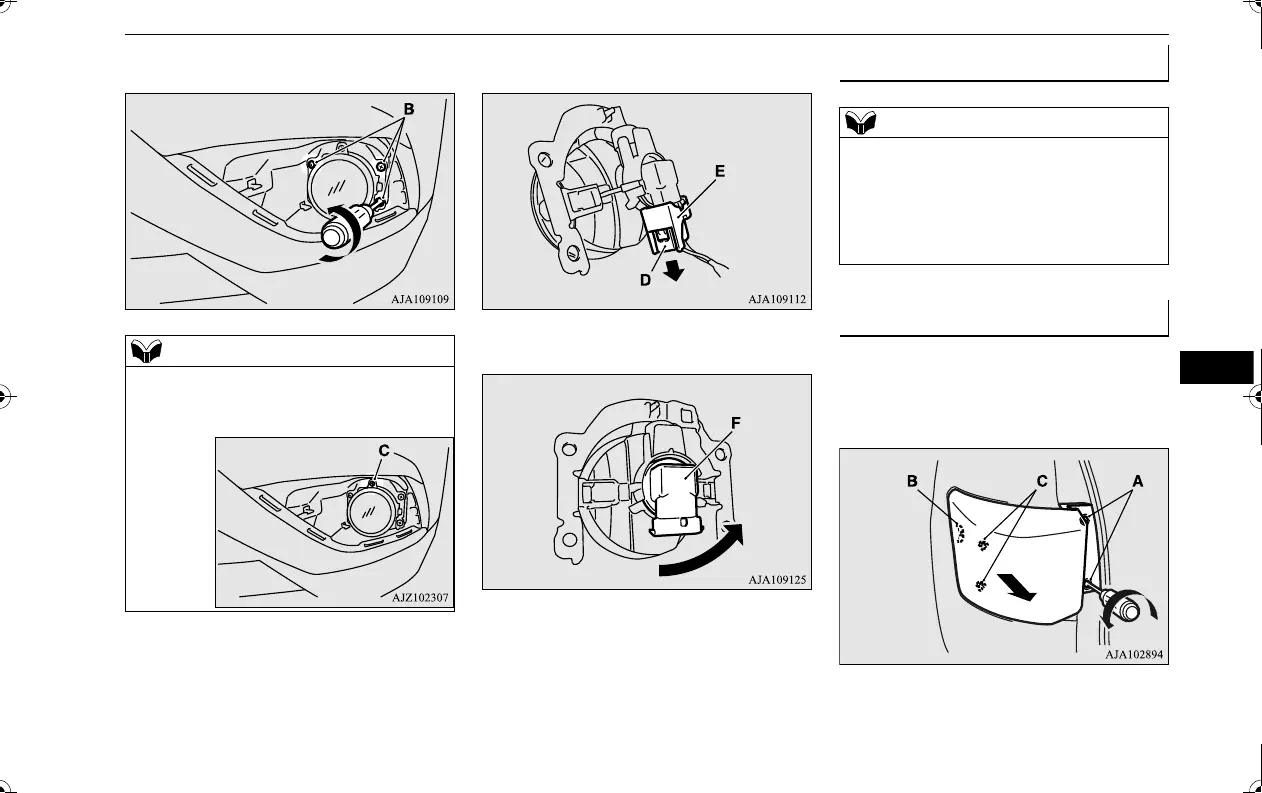

2. Remove the 3 screws (B) and remove the
light unit.
3. While holding down the tab (D), pull out
the socket (E).
4. Turn the bulb (F) counterclockwise to
remove it.
5. To install the bulb, perform the removal
steps in reverse.
N00943601933
N00943701598
1. Open the liftgate.
2. Remove the screws (A), and then move
the light unit toward the rear of the vehi-
cle to unfix the notch (B) and pins (C).
When unfastening the screws or the fog
light, be careful not to move the beam posi-
tion adjustment screw (C).
Front fog lights (LED type)
The fog lights use an LED instead of the
bulb.
Check with an authorized Mitsubishi Motors
dealer or a repair facility of your choice
when the light needs to be repaired or
replaced.
Rear combination lights
