Mitsubishi PLK-E2010R - Lubrication; Oil Tank Filling and Oiling Points

- 11 -
4. LUBRICATION
CAUTION
★Please make sure to turn the power switch OFF before oiling.
★Please make sure to put some oil before starting the operation of the brand new machine or when the
sewing machine is resumed the operation after a long interval.
NOTE Please use high quality white machining oil.

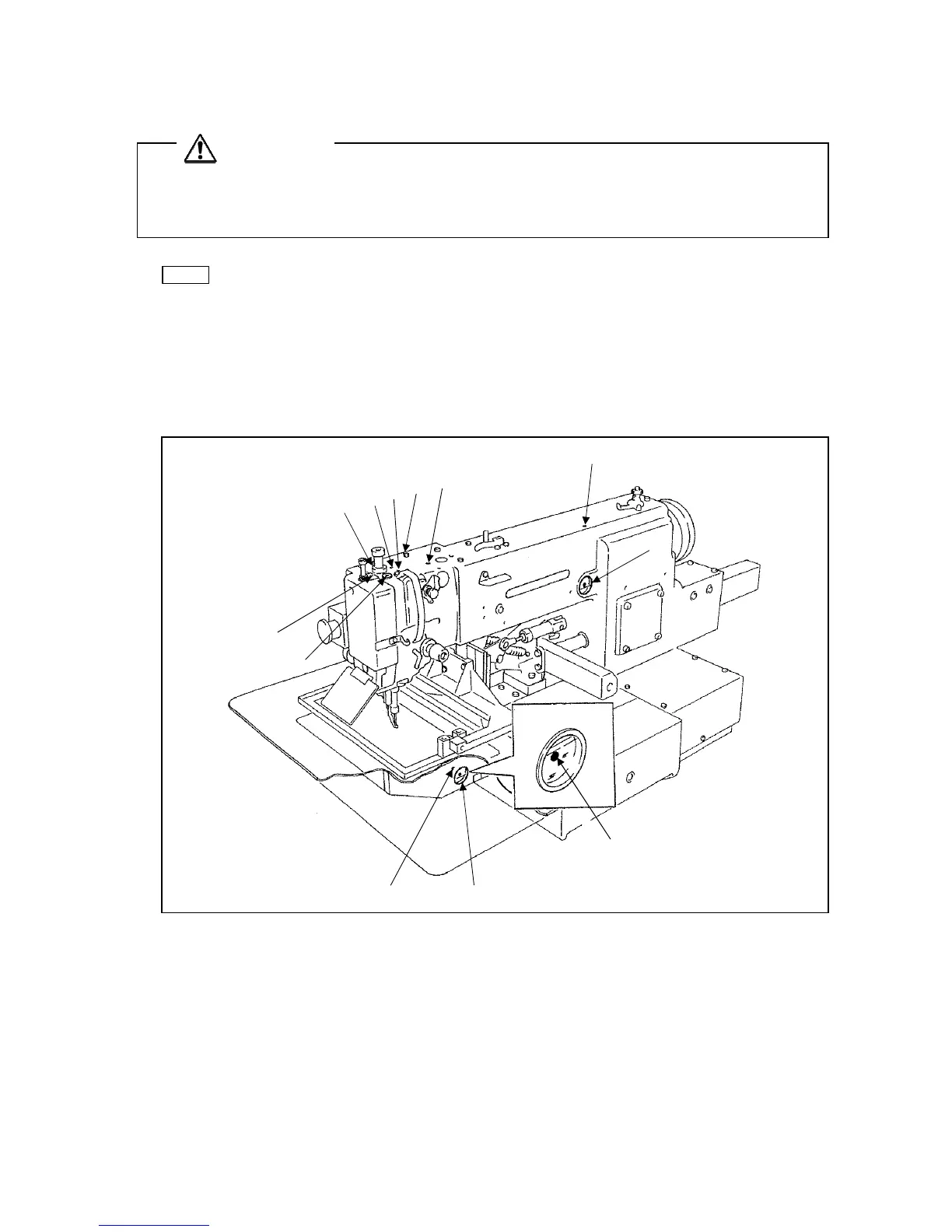

4-1 Filling the oil tank
Pour the oil through the oil hole (No.1) to the oil tank (No.2) on the machine arm. Pour the oil through the
oil hole (No.3) to the oil tank (No.4) on the machine bed.
4-2 Oiling
Put some oil to the red marked oil holes (No.6 to 12).
10)
9)
8)
7)
6)
1)
2)
12)
11)
3) 4)
5)
