- 4 -
3-6 Installation of the power switch
If the power switch in purchased without assembling to the table, the power switch has to be attached
with the following procedure.

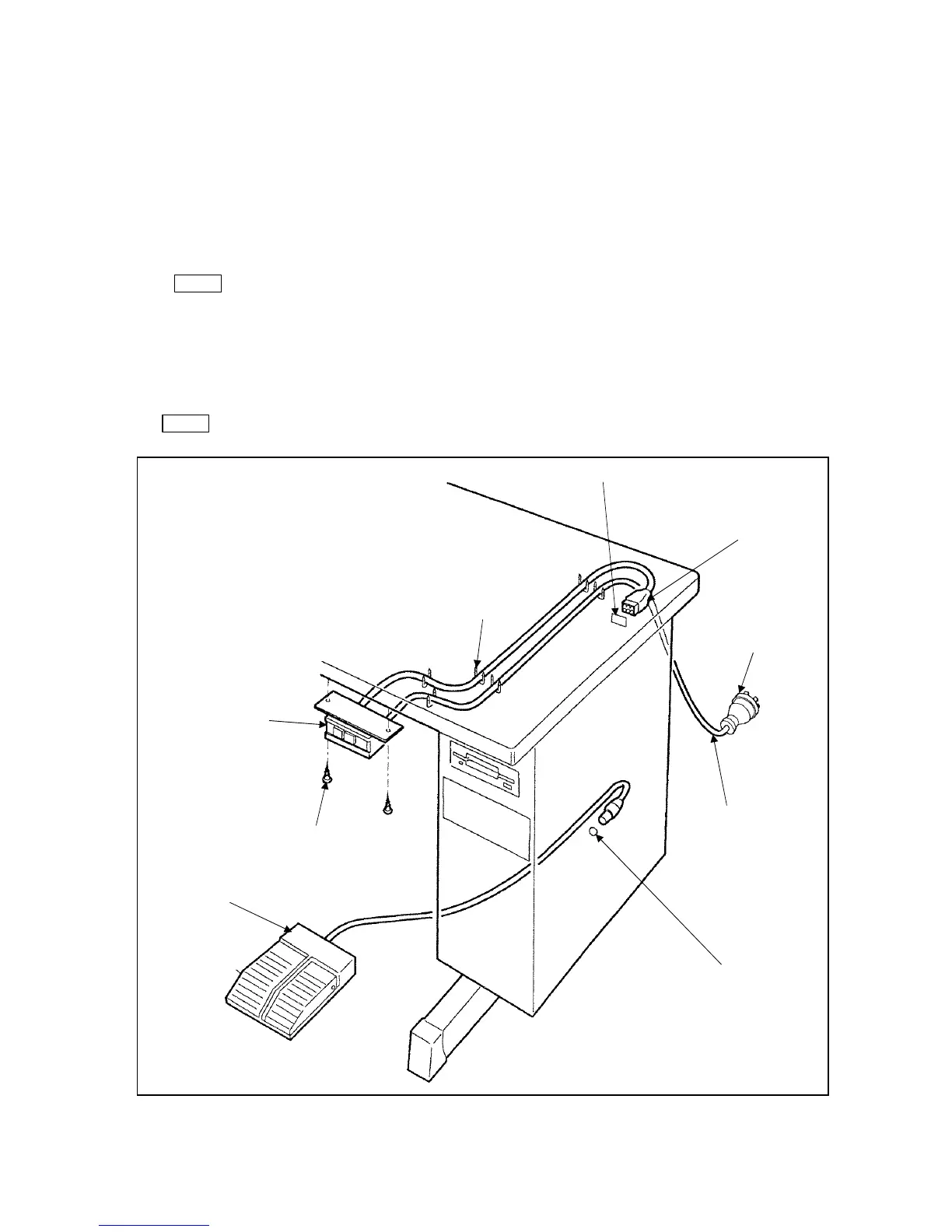

1) Mount the power switch (No.1) with the wood screw (No.2) underneath the table as shown on the
figure.
2) Fix the electric cords with the staples (No.3) underneath the table.
3) Hook up the connector (No.4) of the power switch (No.1) to the connector (No.5) of the control box.
4) Attach the power plug (No.7) to another end of the power switch cord (No.6).
NOTE
Connect the connector with the instructions in the paragraph [P.8 <Back side view of the
Control box>].
3-7 Connection of the foot switch
Connect the foot switch (No.8) to the connector (No.9).
The foot switch is enclosed in the accessory box.
NOTE
Connect the connector with the instructions in the paragraph [P.8 <Back side view of the Control
box>].
4)
7)
6)
5)
3)
9)
2)
1)
8)
