- 39 -

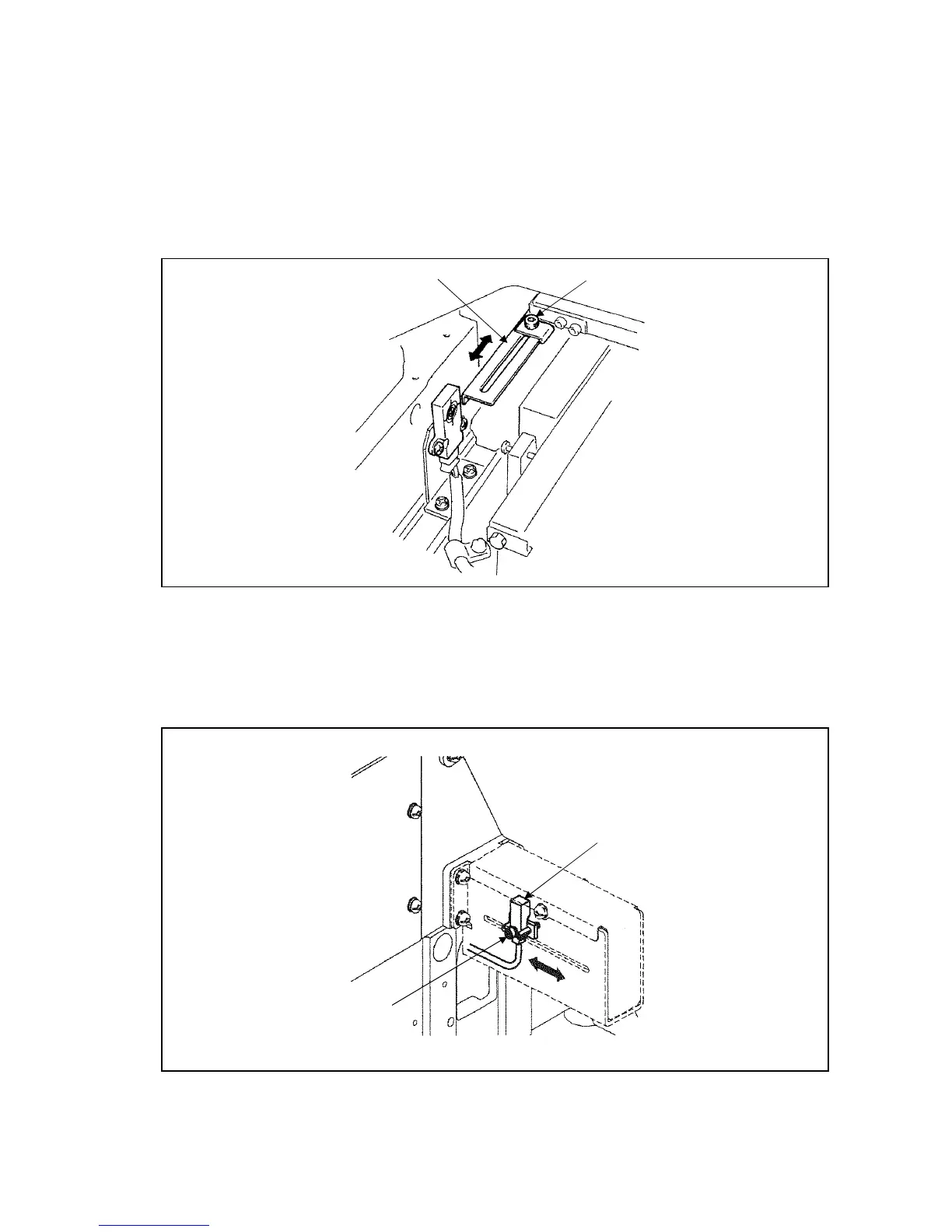

7-16-1 Shifting the mechanical home position to the X direction
1) Remove the X-Y cover (right), (left) and X cover plate.
2) Loosen the detector plate fix screws (2 pieces) (No.1). If move the detector plate (No.2) to the right,
the mechanical home position is shifted to the left and if it is moved to the left, the mechanical home
position is shifting to the right.
3) After the mechanical home position shifting, tighten the detector plate fix screws (2pieces) (No.1)
securely.
1)
2)
7-16-2 Shifting the mechanical home position to the Y direction
1) Loosen the Y detector set screws (No.2). If move the Y detector (No.1) to the left, the mechanical
home position is shifted to the backward and if move it to the right, the mechanical home position is
shifted to the front.
2) After the mechanical home position shifting, tighten the detector set screws (No.2) securely.
1)
2)
Y-detector
