Mitsubishi Q01CPU User Manual

7
MEMORY CARD AND BATTERY
7.1 Memory Card
7.1.5 Memory Card Loading/Unloading Procedures
7 - 8
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
GENERAL SPECIFICATIONS
4
HARDWARE SPECIFICATIONS OF THE CPU MODULE
5
POWER SUPPLY MODULE
6
BASE UNIT AND EXTENSION CABLE
7
MEMORY CARD AND BATTERY
8
CPU MODULE START- UP PROCEDURES

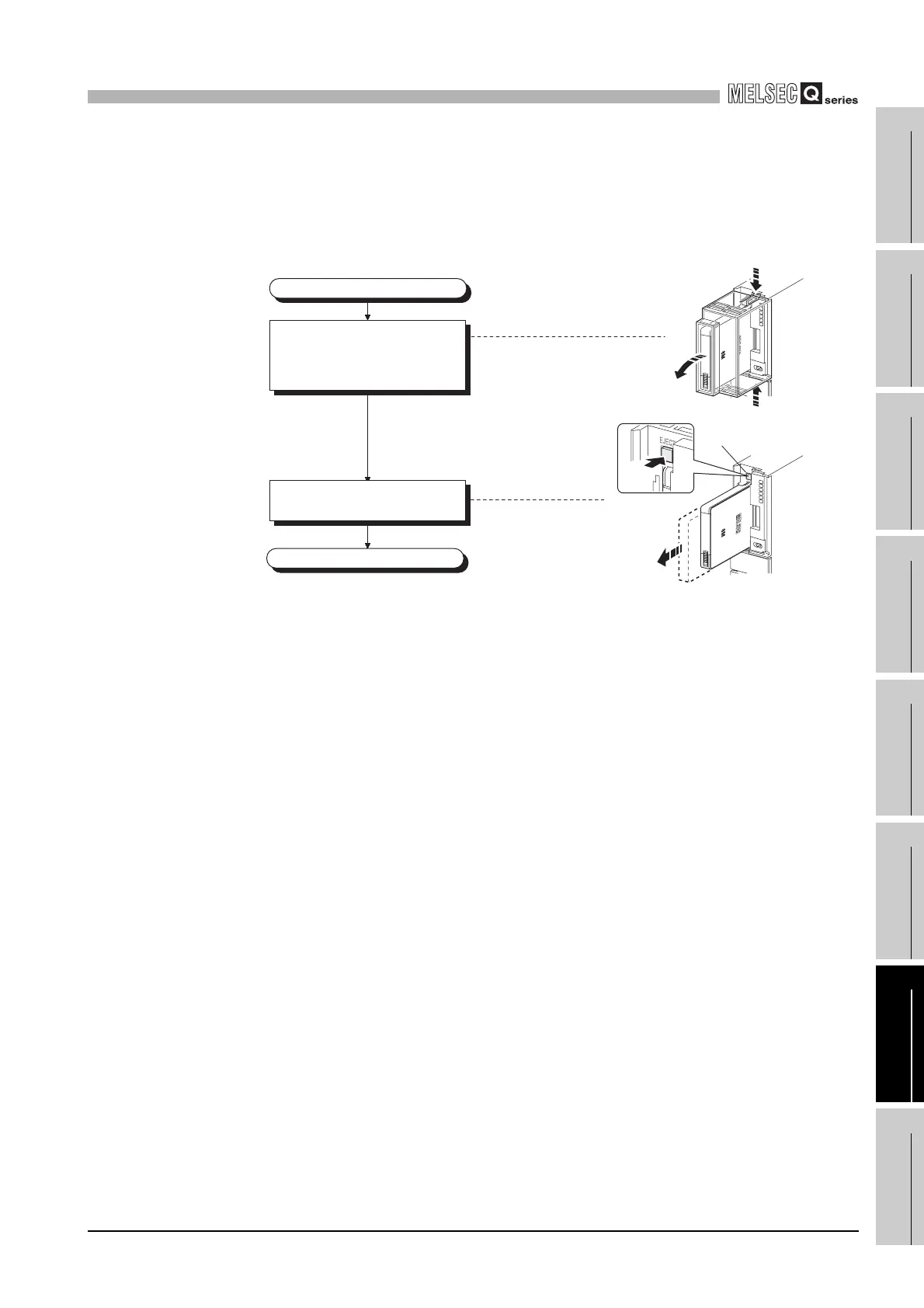

(b) To remove the memory card
When removing a memory card from the CPU module main body, remove a
memory card protective cover and press the EJECT button to pull out the memory
card.
Diagram 7.6 Install the memory card
Remove the memory card
Completed
Turn OFF power supply of the
CPU module and remove a
memory card protective cover
from the CPU module.
Press the EJECT button to eject
a memory card.
CPU module
main unit
Remove a cover,
pressing fixing claws
of top/bottom
CPU module
main unit
Push
Memory card
EJECT button
