Mitsubishi Q01CPU User Manual

10
LOADING AND INSTALLATION
10.3 Module Installation
10.3.1 Precaution on installation
10 - 13
9
EMC AND LOW VOLTAGE DIRECTIVES
10
LOADING AND INSTALLATION
11
MAINTENANCE AND INSPECTION
12
TROUBLESHOOTING APPENDICES INDEX

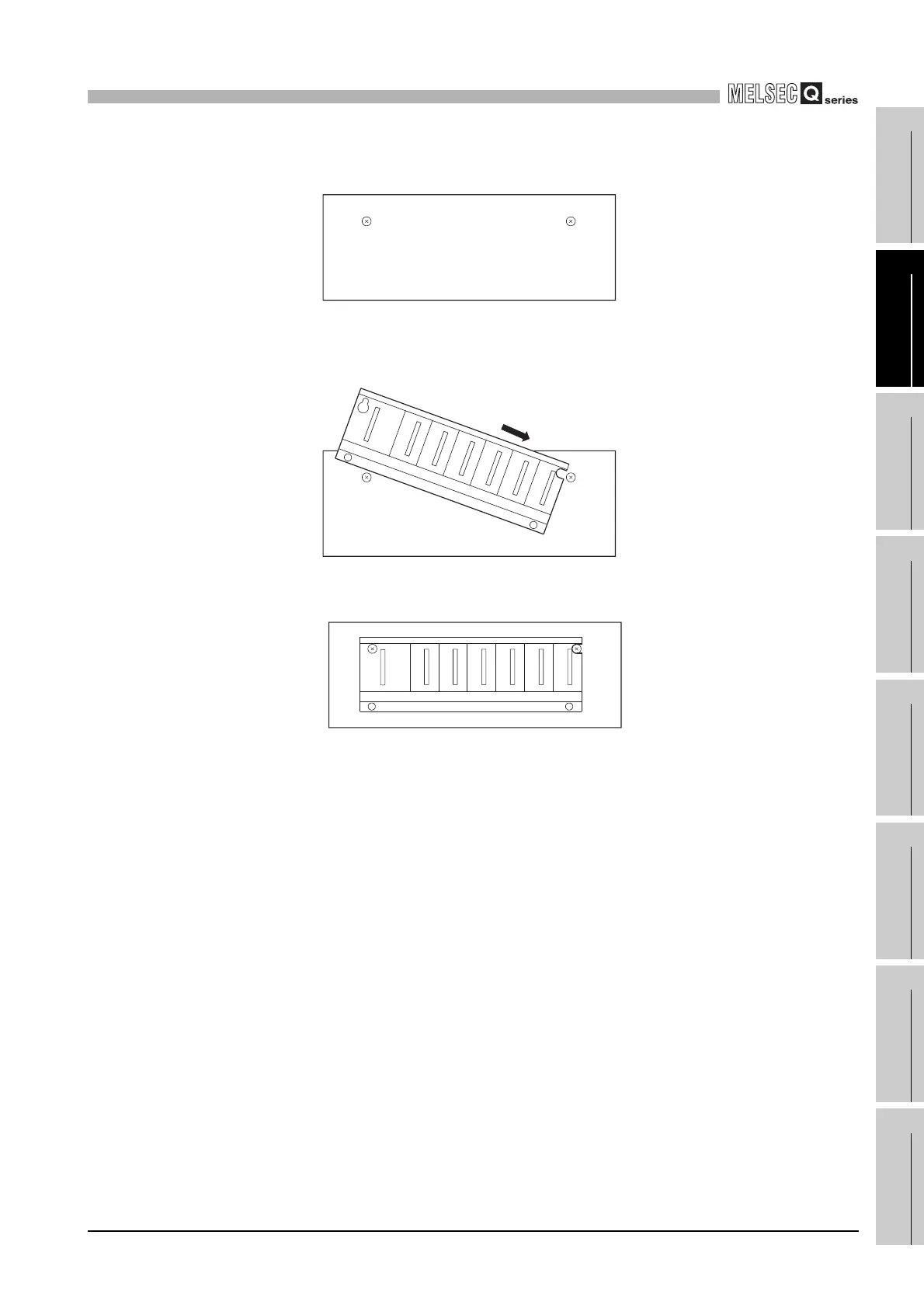

Install a main base unit or a Q00JCPU (by screwing) in the following procedure.
4) Fit the two base unit top mounting screws into the enclosure.
5) Place the right-hand side notch of the base unit onto the right-hand side
screw.
6) Place the left-hand side pear-shaped hole onto the left-hand side screw.
7) Fit the mounting screws into the holes at the bottom of the base unit,
and then retighten the all mounting screws.
Note1 : Install the main base unit to a panel, with no module loaded in the
right-end slot.
Remove the base unit after unloading the module from the right-end
slot.
Note2 : The mounting screws that included with the slim type main base unit
differ from those included with other types of the base unit.
When ordering mounting screws for the slim type main base unit,
specify "cross recessed head bind screw M4 x 12 (black)."
Diagram 10.6 Install a main base unit or a Q00JCPU
Diagram 10.7 Install a main base unit or a Q00JCPU
Diagram 10.8 Install a main base unit or a Q00JCPU
Panel
Panel
Panel
