10 - 14
10.3 Module Installation
10.3.1 Precaution on installation
10
LOADING AND INSTALLATION
Note the following points when mounting a DIN rail.
Mounting a DIN rail needs special adaptors (optional), which are to be user-prepared.
(a) Applicable adaptor types
For Q38B,Q312B,Q68B,Q612B,Q38RB,Q68RB,
Q65WRB,Q38DB,Q312DB : Q6DIN1
For Q35B,Q65B,Q00JCPU : Q6DIN2
For Q33B,Q52B,Q55B,Q63B,Q32SB,Q33SB,Q35SB : Q6DIN3
(b) Adaptor installation method
The way to install the adaptors for mounting a DIN rail to the base unit is given in
Diagram 10.9.
Table10.4 Parts included with DIN rail mounting adaptors
DIN rail mounting
adaptors
Quantity of included parts
Adaptor(Large) Adaptor(small)
Mounting screw
(M5 10)
Square washer Stopper
Q6DIN1 24332
Q6DIN2 23222
Q6DIN3 12222

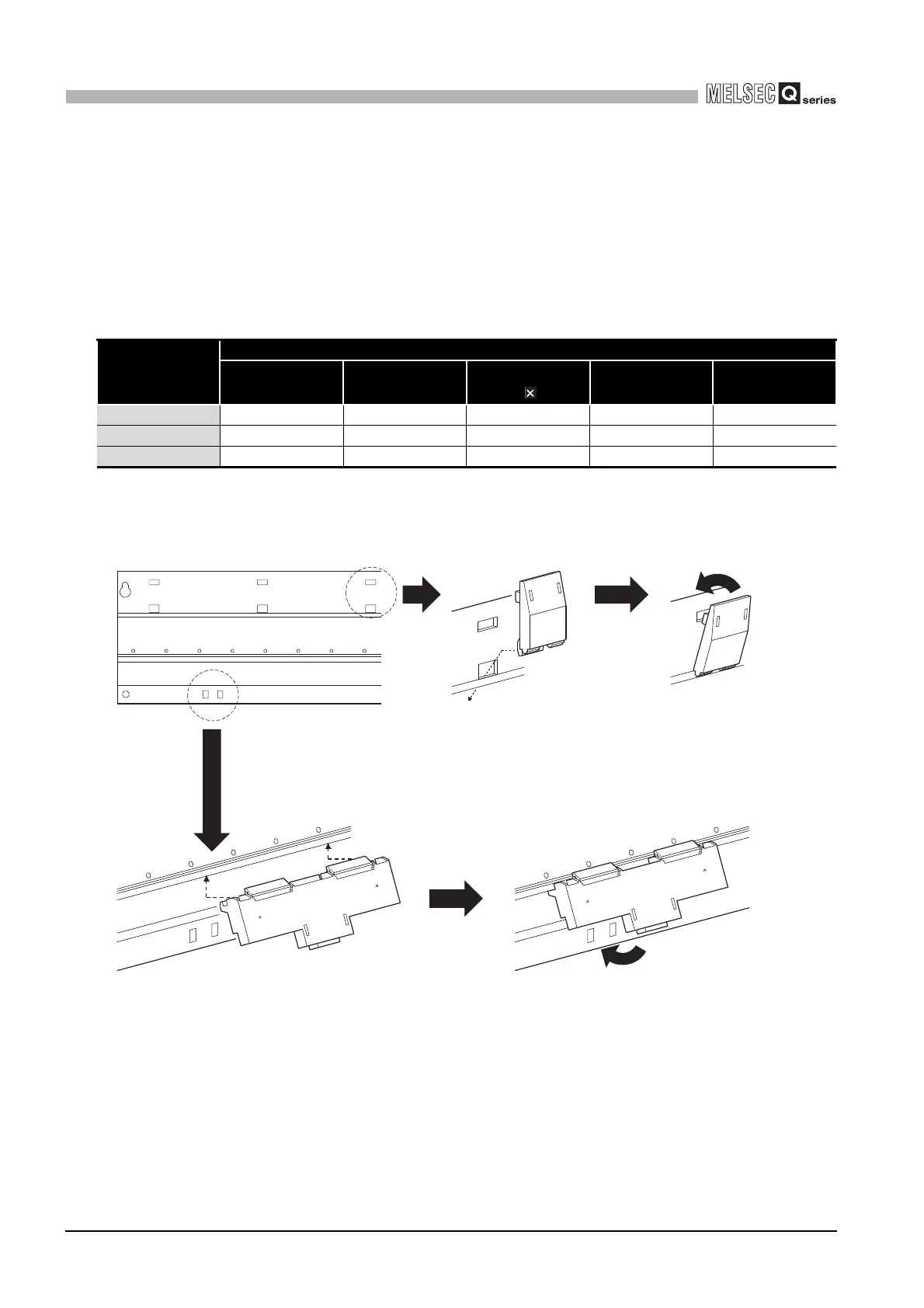

Diagram 10.9 Adaptor installation method
Base unit rear
Place the hook of the adaptor
(small) in the lower hole.
Push the top of the adaptor
(small) far enough until it
"clicks".
Insert the adaptor (large) into the grooves of
the base unit from below.
Push the bottom of the adaptor (large) far enough
until it "clicks".
To Next Page
