10
LOADING AND INSTALLATION
10.3 Module Installation
10.3.1 Precaution on installation
10 - 19
9
EMC AND LOW
VOLTAGE
DIRECTIVES
10
LOADING AND
INSTALLATION
11
MAINTENANCE AND
INSPECTION
12
TROUBLESHOOTING APPENDICES INDEX

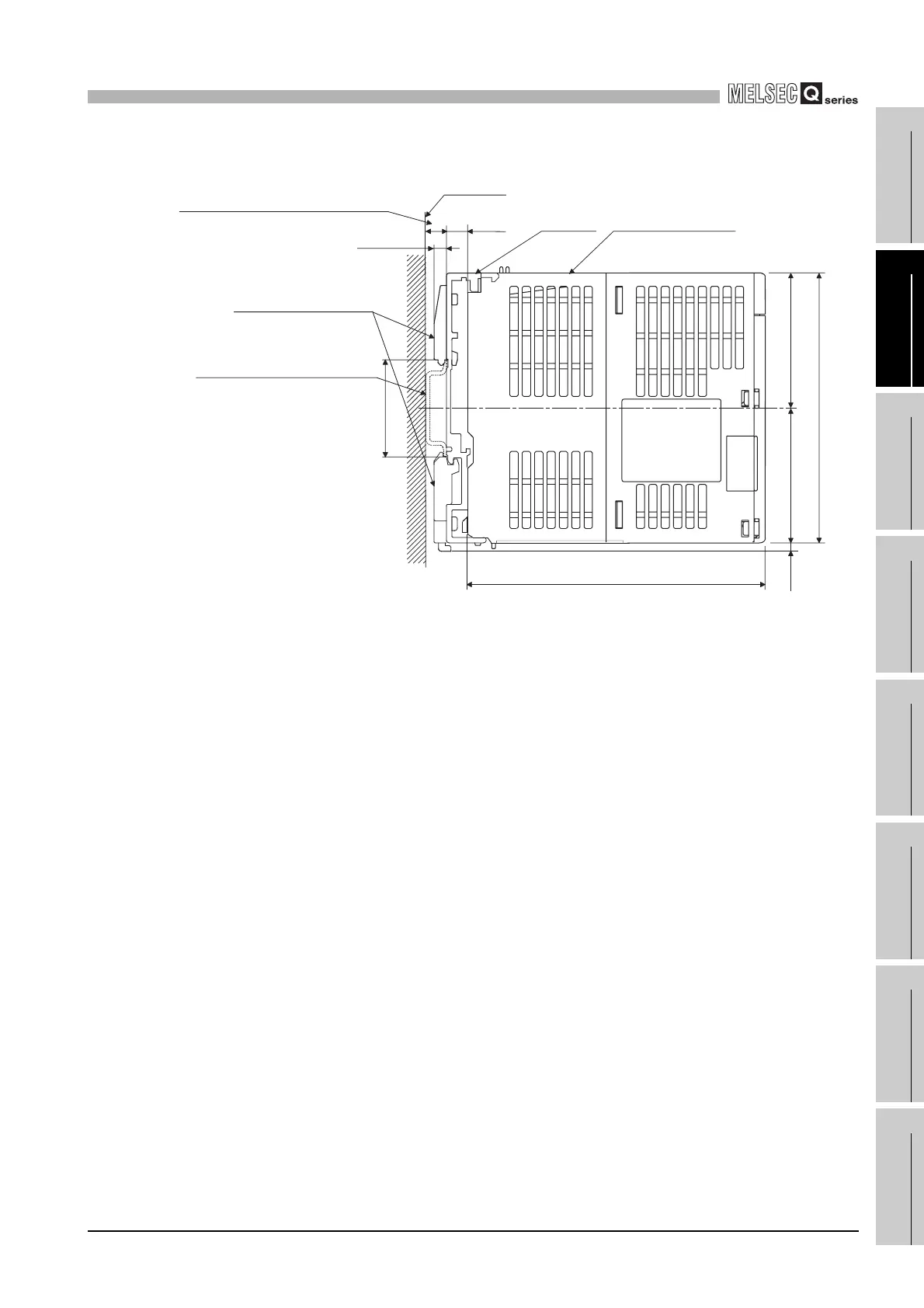

(f) Dimensions when DIN rail is attached (Side view).
Diagram 10.17 External dimensions (Side view)
7.5D
3
DIN rail depth (D)
Board side
DIN rail adaptor
Base unit
Example) Q64PN Power supply module = 115 (4.53)
Power supply module
DIN rail: TH35-7.5Fe,
TH35-7.5Al,
TH35-15Fe
TH35-7.5Fe, TH35-7.5Al:7.5 (0.30)
TH35-15Fe:15 (0.59)
(0.12)
35 (1.38)
(0.30)
98 (3.86)
(49 (1.93))(49 (1.93))
5
(0.20)
Unit: mm (inch)
