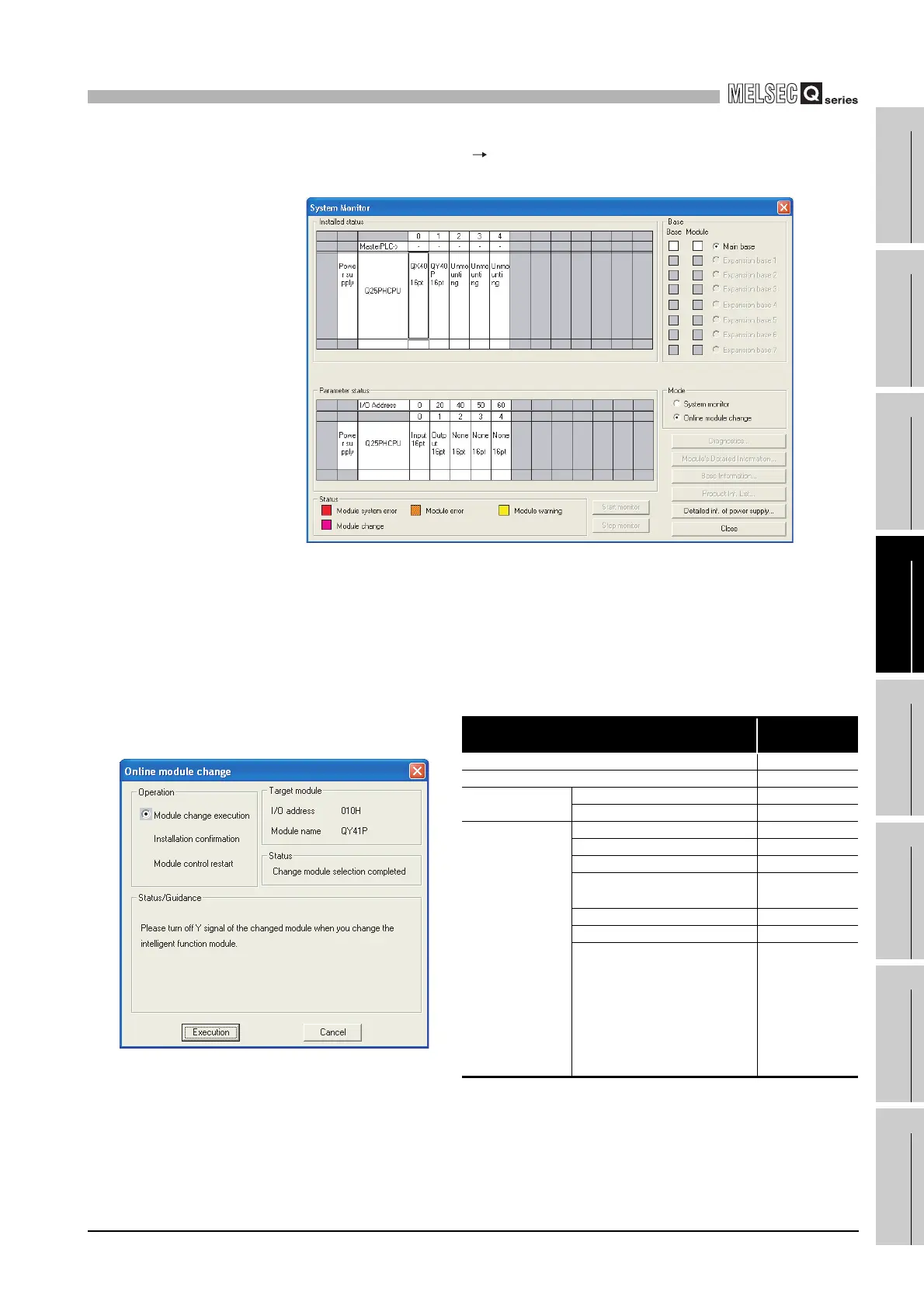

1) Choose [Diagnostics] [Online module change] on GX Developer, and select
the "Online module change" mode.
2) Double-click the module to be changed online to display the online module
change screen.
(Table12.15 shows the communication status with the target module for online
module change when the following screen (refer to Diagram 12.25) is
displayed.)
Diagram 12.24 System monitor
Table12.15 Communication status with the module
Target module, item
Executed/Not
executed
Input module refresh Executed
Output module refresh Executed
I/O hybrid module
Input refresh Executed
Output refresh Executed
Intelligent function
module
Input refresh Executed
Output refresh Executed
FROM/TO instruction Executed
Instruction using intelligent
function module device
Executed
Intelligent dedicated instruction Executed
Intelligent automatic refresh Executed
Buffer memory batch monitor Executed
Diagram 12.25 Online module change screen
