2.1 System Configuration
2.1.1 System Configuration for Single CPU System
2
SYSTEM CONFIGURATION
(b) When the redundant power main base unit (Q3 RB) is used
* 1: Use the redundant power supply module for the power supply module.
The redundant power supply module can use the both Q63RP and Q64RP together with one
redundant base unit.
The Q series power supply module and the slim type power supply module are not available for
the power supply module.
* 2: The Q series power supply module is not required for the Q5 B extension base unit.
POINT
Because the Q00JCPU is the CPU module with a power supply module and main
base unit incorporated, no power supply module and main base unit are required.

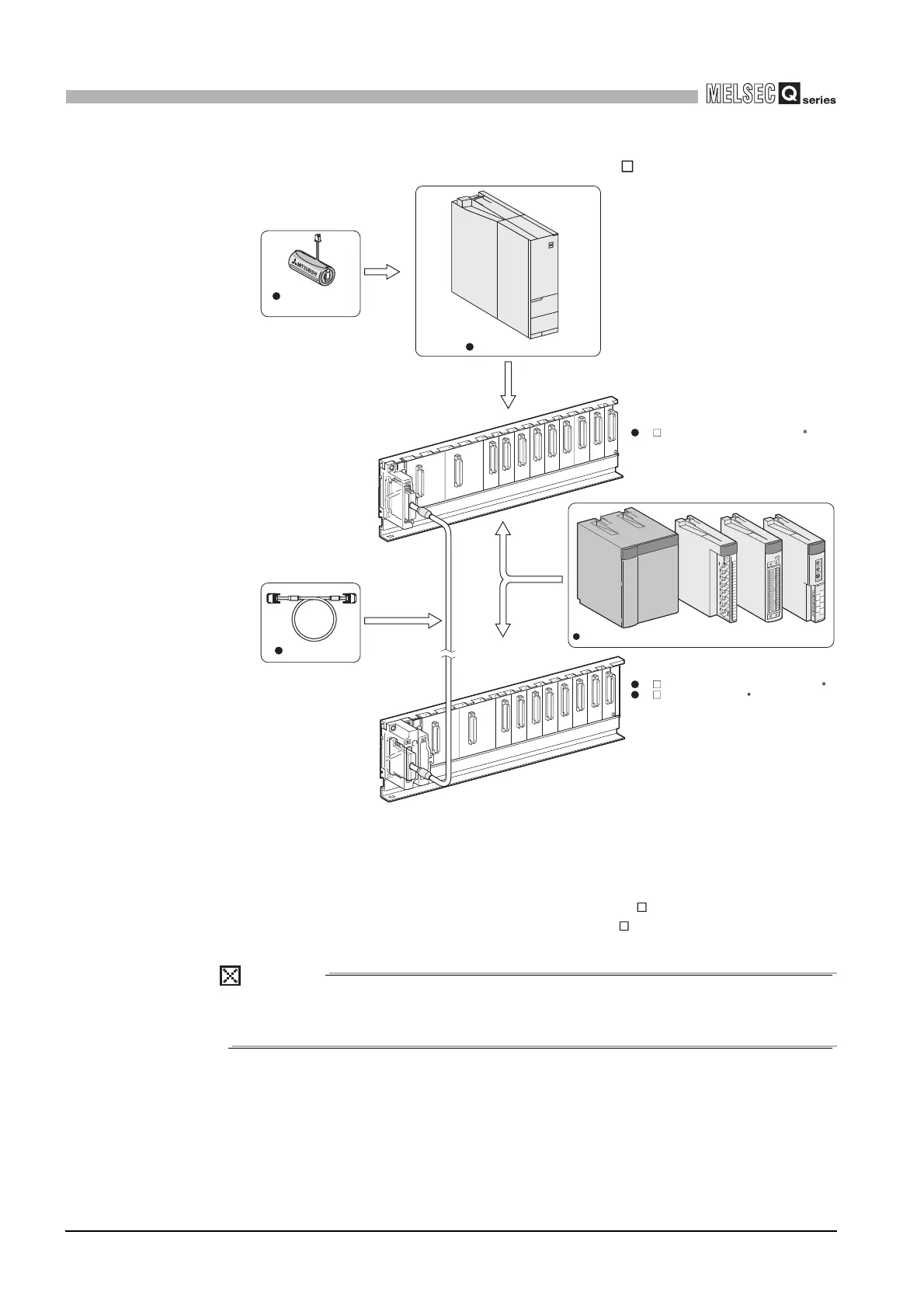

Diagram 2.2 System configuration when Q3 RB is used
Redundant power supply module/I/O module/Intelligent function module
Extension cable
Q6 RB redundant power extension base unit
Q5 B extension base unit
1
2
Basic model QCPU
Battery for QCPU
(Q6BAT)
Q3 RB redundant power main base unit
1
