2
SYSTEM CONFIGURATION
2.1 System Configuration
2.1.1 System Configuration for Single CPU System
2 - 4
1
OVERVIEW
2
SYSTEM
CONFIGURATION
3
GENERAL
SPECIFICATIONS
4
HARDWARE
SPECIFICATIONS OF
THE CPU MODULE
5
POWER SUPPLY
MODULE
6
BASE UNIT AND
EXTENSION CABLE
7
MEMORY CARD AND
BATTERY
8
CPU MODULE START-
UP PROCEDURES
(c) When the slim type main base unit (Q3 SB) is used
* 1: Because the slim type main base unit does not have an extension cable connector, the extension
base unit cannot be connected and bus connection of GOT is not available.
* 2: As a power supply module, use the slim type power supply module.
The Q series power supply module and the redundant power supply module are not available for
the power supply module.
POINT
Because the Q00JCPU is the CPU module with a power supply module and main
base unit incorporated, the slim type main base unit is not available.

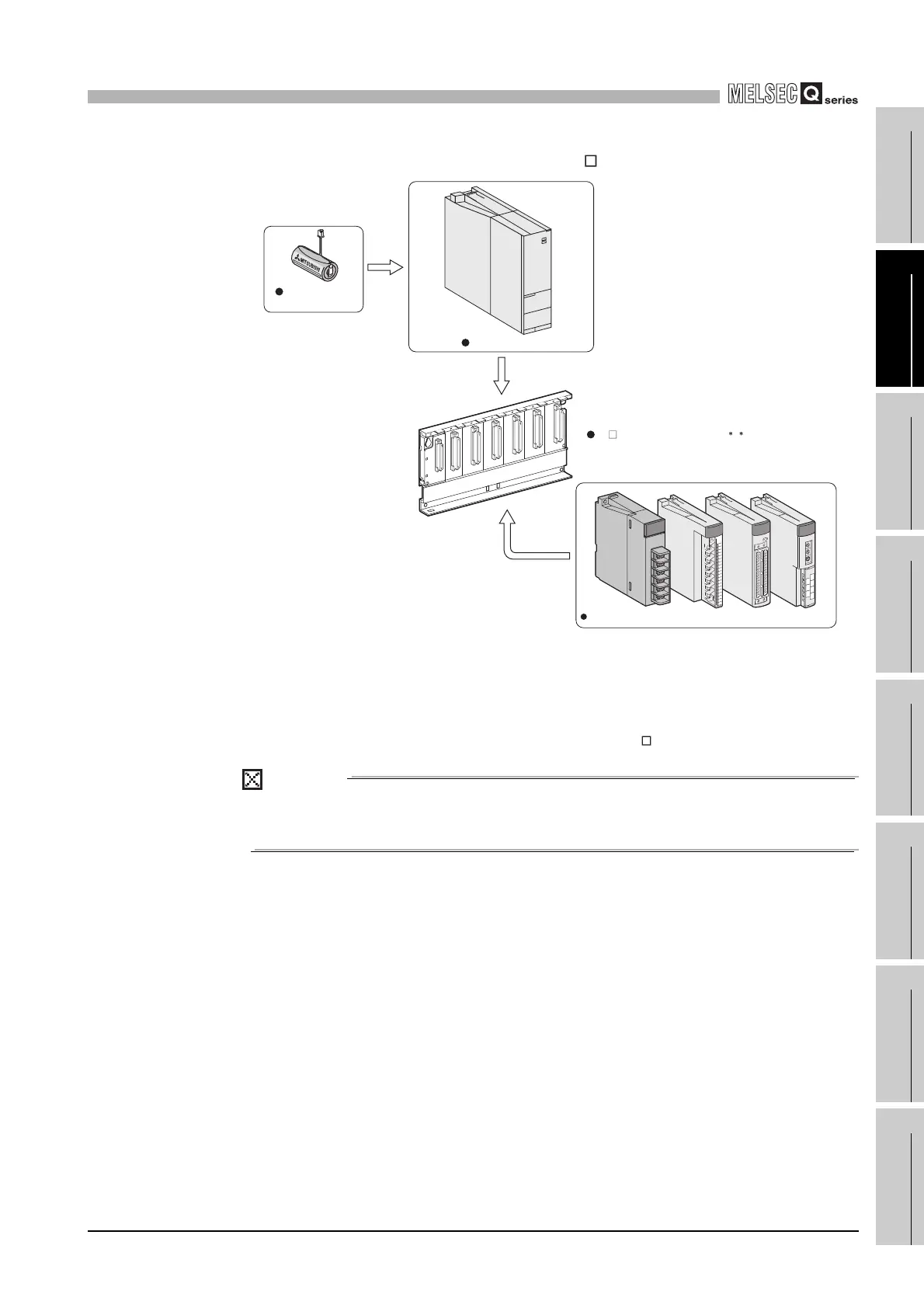

Diagram 2.3 System configuration when Q3 SB is used
Basic model QCPU
Q3 SB slim type main base unit
1, 2
Battery for QCPU
(Q6BAT)
Slim type power supply module/I/O module/Intelligent function module
To Next Page
