2
SYSTEM CONFIGURATION
2.1 System Configuration
2.1.1 System Configuration for Single CPU System
2 - 24
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
GENERAL SPECIFICATIONS
4
HARDWARE SPECIFICATIONS OF THE CPU MODULE
5
POWER SUPPLY MODULE
6
BASE UNIT AND EXTENSION CABLE
7
MEMORY CARD AND BATTERY
8
CPU MODULE START- UP PROCEDURES
(d) When the slim type main base unit (Q3 SB) is used
Cautions
• The Process CPU and Redundant CPU are not allowed to use with the slim
type main base unit.
• The slim type main base unit does not have an extension cable connector.
The extension base unit cannot be connected and bus connection of GOT is
not available.

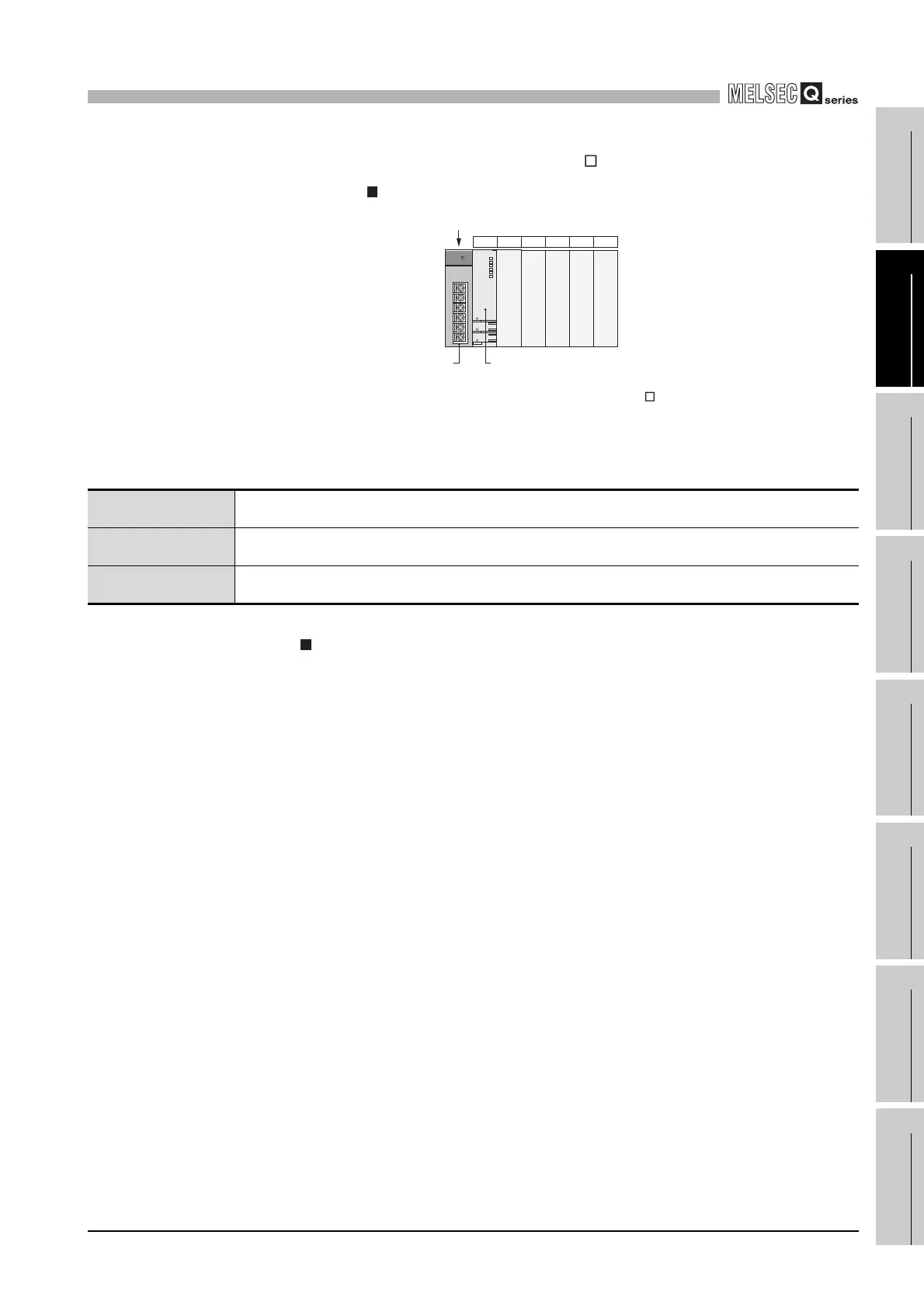

Diagram 2.19 System configuration when Q3 SB is used
Table2.4 Restrictions on the system configuration and applicable base units and power
supply modules
Maximum number of
mounted I/O modules
5 modules
Applicable slim type
main base model
Q32SB, Q33SB, Q35SB
Slim type power supply
module
Q61SP
Slim type
power supply
module
CPU module
Q35SB (5 slots occupied)
....
....
I/O number
Slot number
00 to 1F 20 to 3F 40 to 5F 60 to 7F 80 to 9F
CPU 0 1 2 3 4
Slim type main base unit The figure shows the configuration
when 32-point modules are loaded to each slot.
...
