2 - 35
2.1 System Configuration
2.1.3 Configuration of peripheral devices
2
SYSTEM CONFIGURATION
(b) QnUDE(H)CPU
* 1: Format the ATA card by GX Developer only. ( Section 7.1.4.)
* 2: For the writing to the memory card and the USB cable details, refer to the following:
GX Developer Operating Manual
* 3: For the GX Developer and GX Configurator versions compatible with the Universal model QCPU,
refer to Section 2.1.4.
* 4: Use the following Ethernet cables.
• For 10BASE-T connection: Cables compliant with Ethernet standards, category 3 or higher
(STP/UTP cables)
• For 100BASE-TX connection: Cables compliant with Ethernet standards, category 5 or higher
(STP/UTP cables)
(In an environment subject to electric noise, use shielded twisted pair (STP) cables.)

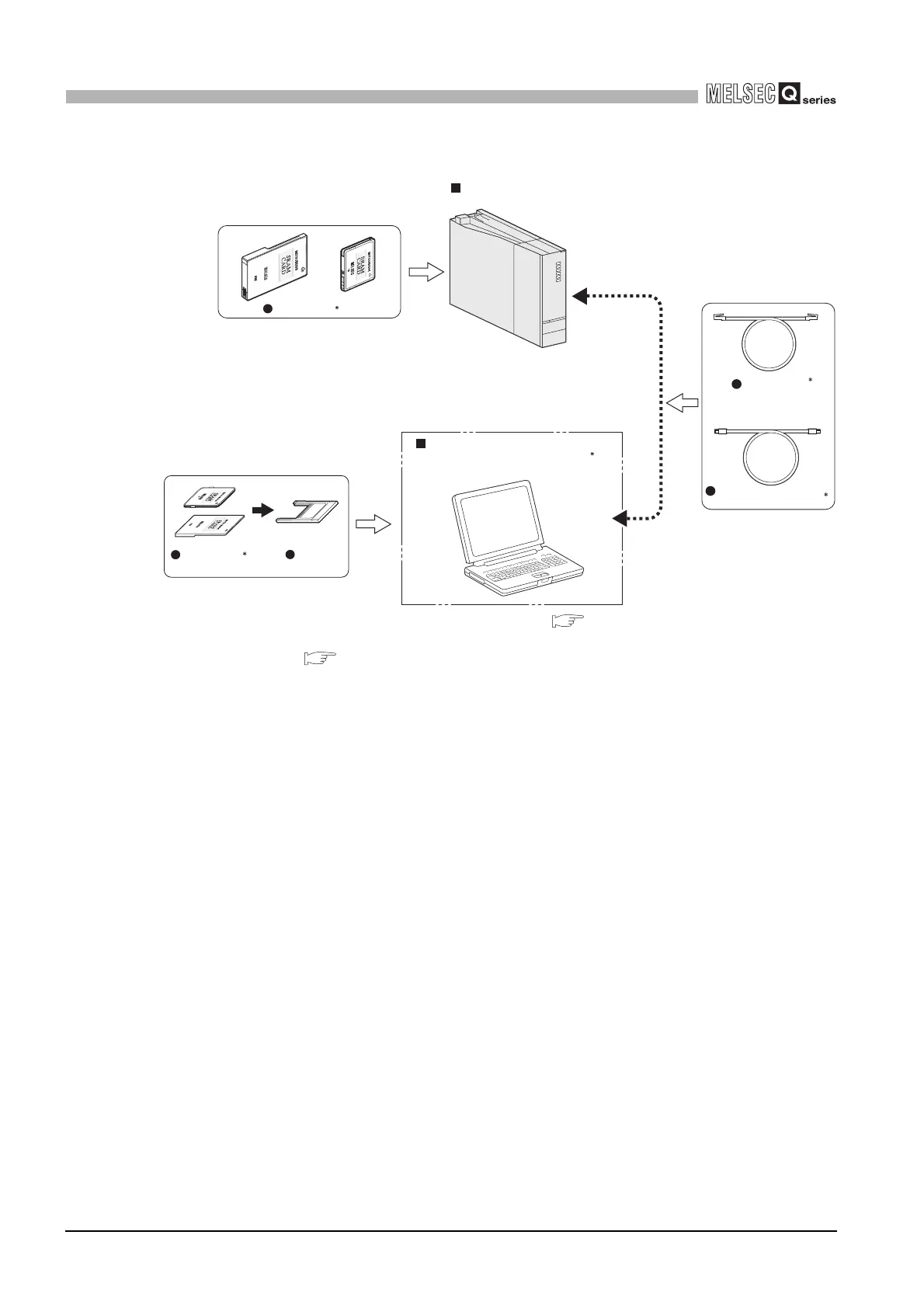

Diagram 2.28 Configuration of peripheral devices
1
Memory card
1
Memory card
PC card
adapter
3
Personal Computer
(GX Developer, GX Configurator)
Universal model QCPU
Ethenet cable
USB cable
(Connector type miniB)
2
4
To Next Page
