4 - 9
4 INSTALLATION AND WIRING
4.1.3 Installation and removal of module to the base unit
This section explains how to install and remove a Motion module, I/O module,
intelligent function module or another module to and from the base unit.

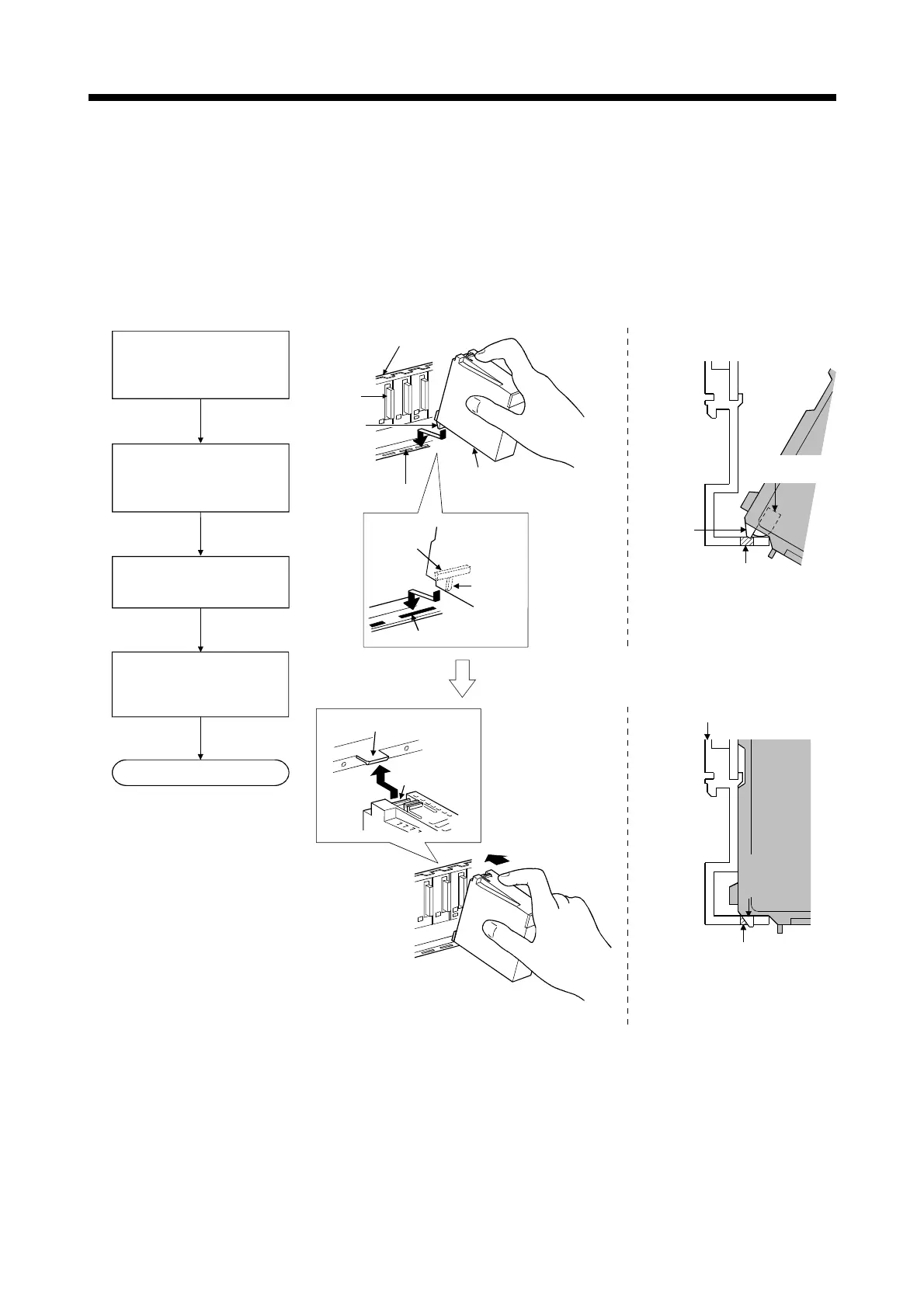

(1) Installation and removal of the module from base unit
(a) Installation
Make sure that the module is
installed in the base unit
securely.
Securely insert the module
fixing projection into the
module fixing hole so that the
latch is not misaligned.
Using the module fixing hole
as a fulcrum, push the module
in the direction of arrow to
install it into the base unit.
END
When using module in a place
where there is large vibration
or impact, install them by the
unit fixing screws.
Base unit
Module
connector
Module fixing hole
Module
Module
fixing
projection
Module
fixing
projection
Module fixing hole
Module
mounting
lever
Base unit
Module fixing
hook
Base unit
Module fixing hole
Base unit
Module fixing hole
Module
fixing
projection
Module
mounting lever
Module
fixing
projection
