4 - 24
4 INSTALLATION AND WIRING
4.2.3 24VDC power supply cable

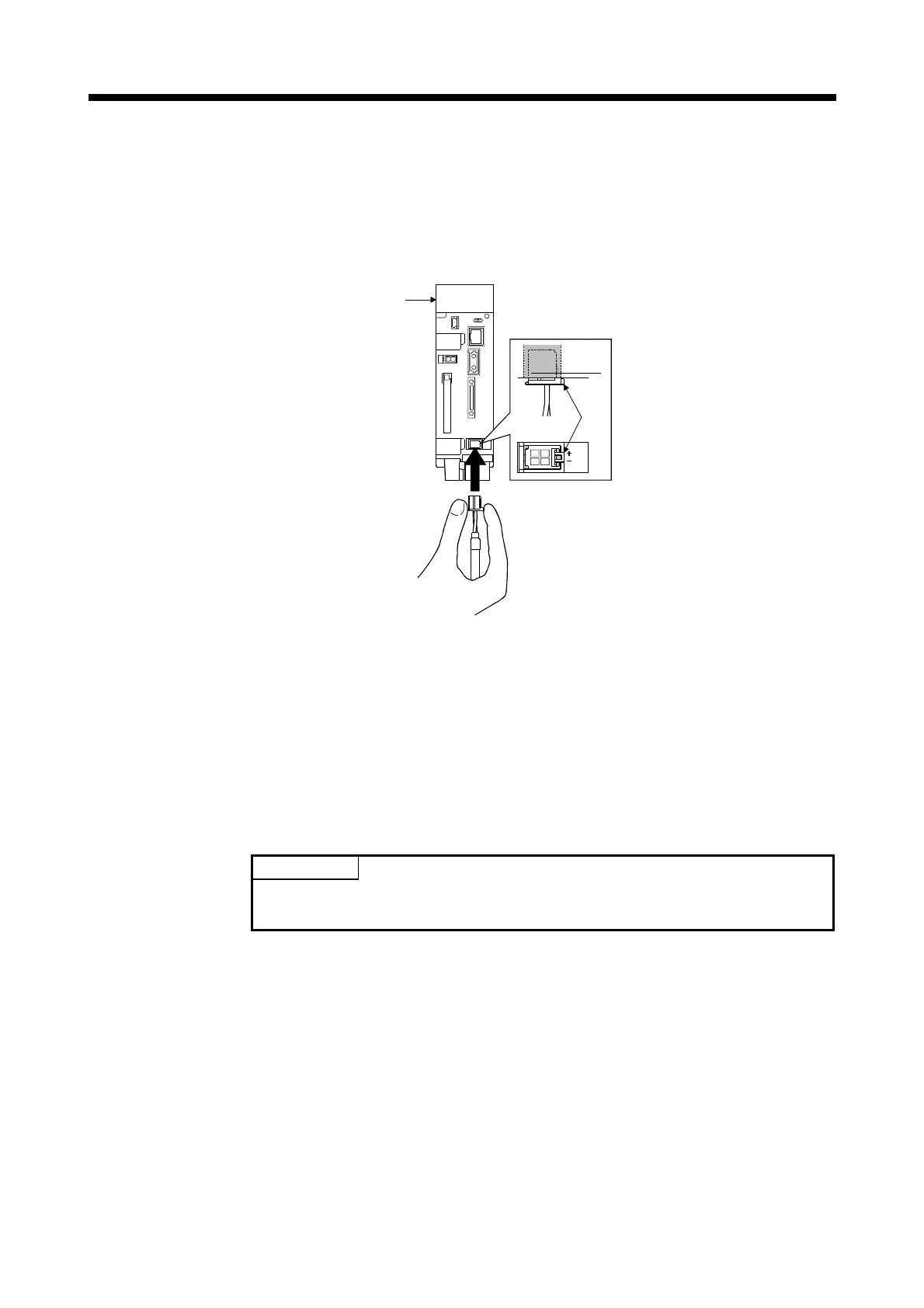

(1) Precautions for handling the 24VDC power supply cable
• For connection or removal of the 24VDC power supply cable, do it surely while
holding a connector of 24VDC power supply cable.
Motion controller
24VDC
Tab
(2) Connection of the 24VDC power supply cable
• For connection of a 24VDC power supply cable to the Motion controller,
connect it surely to a 24VDC power supply connector of Motion controller while
holding a connector. Be sure to insert it until it clicks.
(3) Removal of the 24VDC power supply cable
• For removal of the 24VDC power supply cable, push a tab and pull out the
cable while holding a connector.
POINTS
Forcibly removal the 24VDC power supply cable from the Motion controller will
damage the Motion controller or 24VDC power supply cable.
