2 - 1
2 SYSTEM CONFIGURATION
2. SYSTEM CONFIGURATION
This section describes the Motion controller (Q170MCPU) system configuration,
precautions on use of system and configured equipments.
2.1 Motion System Configuration

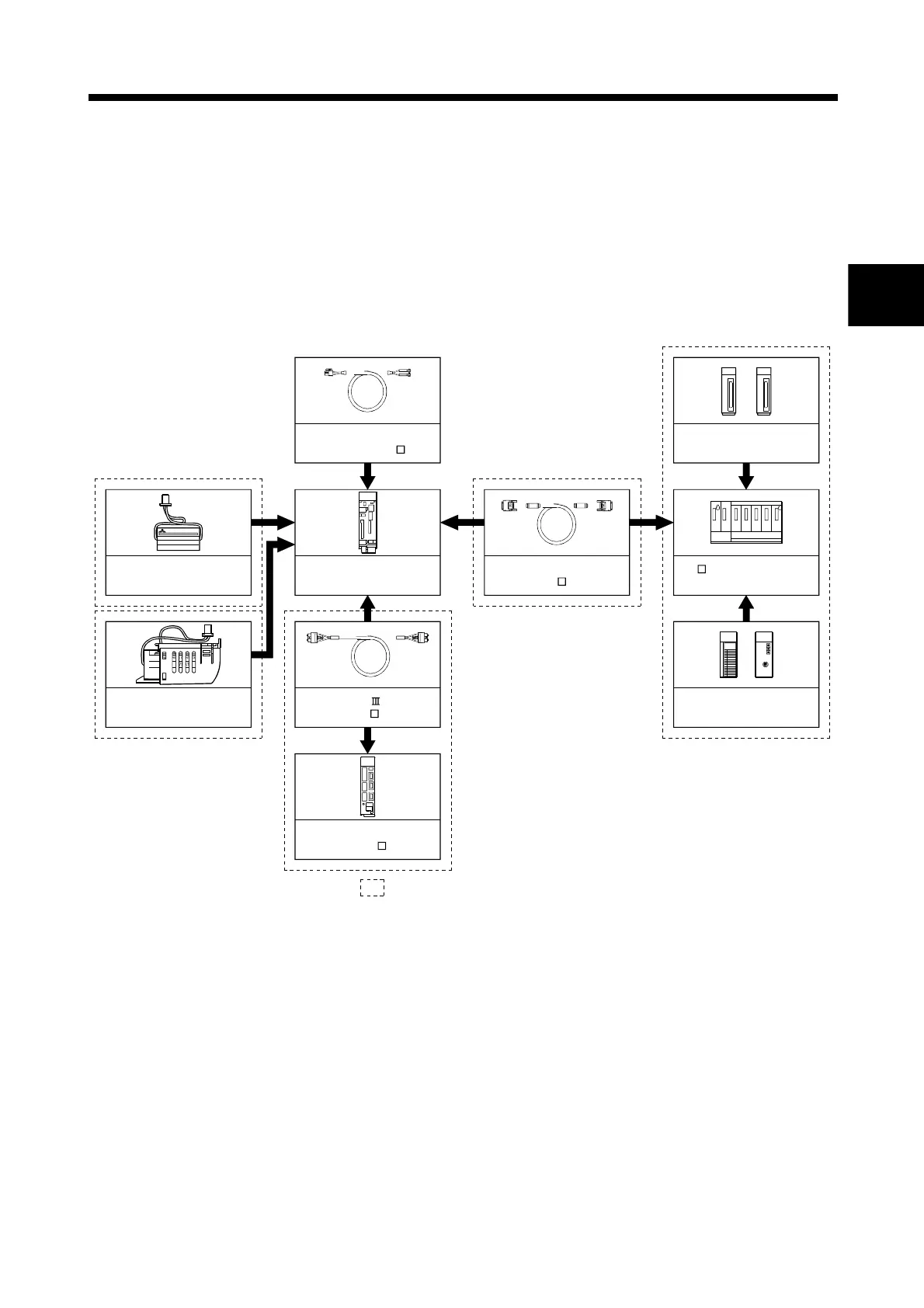

(1) Equipment configuration in Q170MCPU system
(Note-1): Be sure to install the Battery (Q6BAT) to the Battery holder.
(It is packed together with Q170MCPU.)
(Note-2): Large capacity battery use (Q7BAT is included), sold separately.
MITSUBISHI
LITHIUM BATTERY
PROGRAMMABLE CONT ROLLER
TYPE
Q6BAT
Battery
(Q6BAT)
MITSUBISHI
LITHIU M BATTERY
Q7BATTYPE
PROGRAMMABLE CONTR OLLER
PUSH
Battery holder
(Q170MBAT-SET)
SSCNET cable
(MR-J3BUS M(-A/-B))
Servo amplifier
(MR-J3- B)
Extension cable
(QC B)
Forced stop input cable
(Q170DEMICBL M)
Motion controller
(Q170MCPU)
I/O module/Intelligent
function module of the
Q series
Motion module
(Q172DLX, Q173DPX)
Extension of the Q series module
Q5 B extension base unit
(Q52B, Q55B)
It is possible to select the best according to the system.
(Note-1)
(Note-2)
2
