2 - 8
2 SYSTEM CONFIGURATION
2.2 Checking Serial Number and Operating System Software Version
Checking for the serial number of Motion controller and Motion module, and the
operating system software version are shown below.
2.2.1 Checking serial number

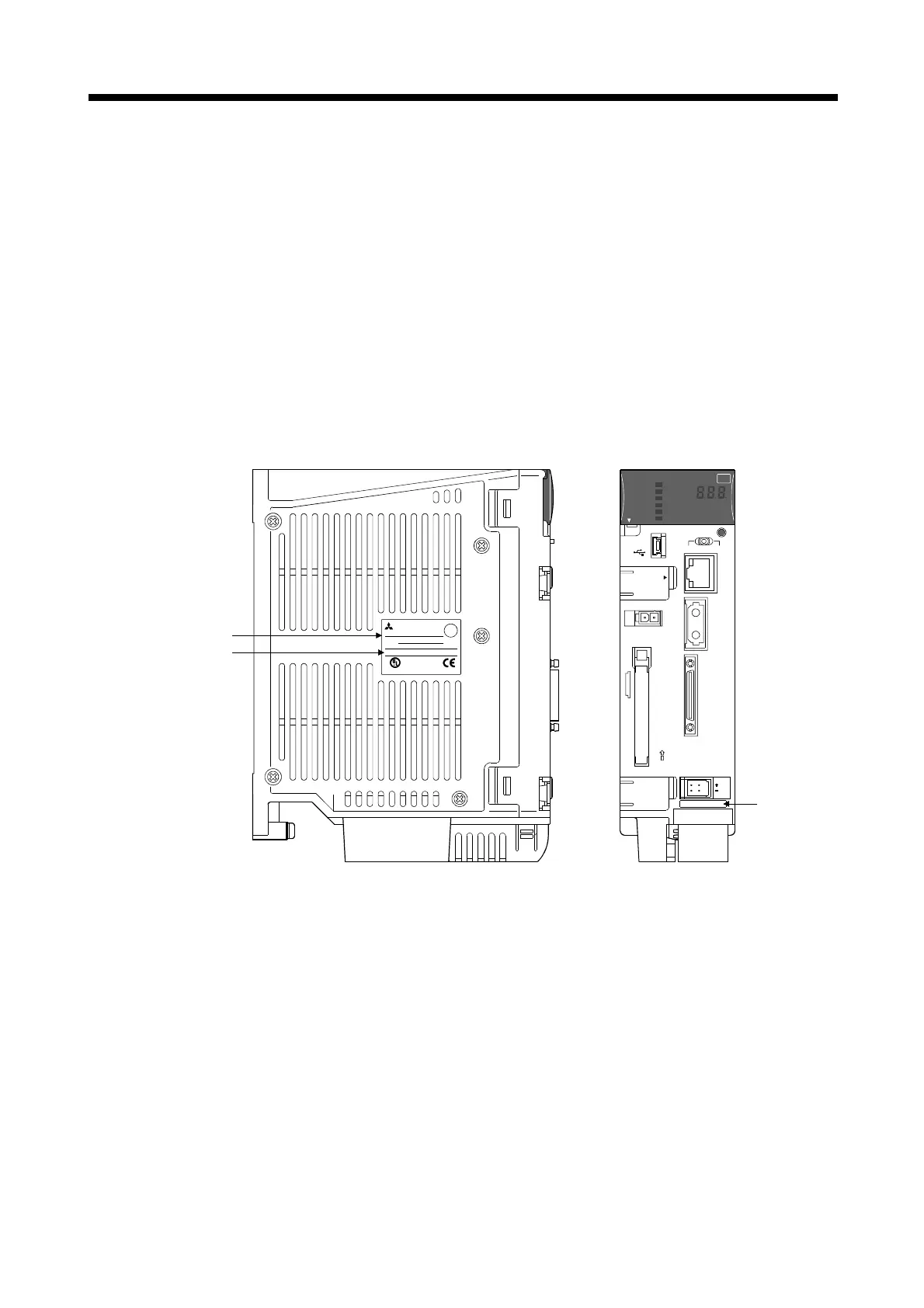

(1) Motion controller (Q170MCPU)
(a) Rating plate
The rating plate is situated on the side face of the Motion controller.
(b) Front of Motion controller
The serial number is printed in the projection parts forward of the lower side
of Motion controller.
MOD EL
MITSUBISHI ELECTRIC
MITSUBISHI
US LISTED
U
L
80M1 IND. CONT. EQ
C
MOTION CONTROLLER
PASSED
Q170M CPU
SERIAL
B8Y054306
JAPAN
USB
POWER
STOPRESET RUN
PERIPHERAL I/F
CN1
EXT.IO
24VDC
OUT
FRONT
CARD
RS-232
EMI
EJECT
MITSUBISHI
Q170MCPU
MODE
RUN
ERR.
USER
BAT.
BOOT
PULL
PUSH
B8 Y0 5 4 3 0 6
Rating plate
Serial number
Serial number
(c) System monitor (product information list)
The serial number can be checked on the system monitor screen in
GX Developer. (Refer to Section 2.2.2.)
