2 SYSTEM CONFIGURATION
2.5.6 SSCNET cables
Between the Motion controller and servo amplifiers, or servo amplifier and servo
amplifier connected by SSCNET
cable. Up to 16 servo amplifies can be connected.
(1) SSCNET cable specifications
Model name Cable length [m(ft.)] Description
MR-J3BUS015M 0.15 (0.49)
MR-J3BUS03M 0.3 (0.98)
MR-J3BUS05M 0.5 (1.64)
MR-J3BUS1M 1 (3.28)
MR-J3BUS M
MR-J3BUS3M 3 (9.84)
MR-J3BUS5M-A 5 (16.40)
MR-J3BUS10M-A 10 (32.81)
MR-J3BUS M-A
MR-J3BUS20M-A 20 (65.62)
MR-J3BUS30M-B 30 (98.43)
MR-J3BUS40M-B 40 (131.23)
MR-J3BUS M-B
MR-J3BUS50M-B 50 (164.04)
• Q170MCPU
MR-J3- B
• MR-J3-
B MR-J3- B

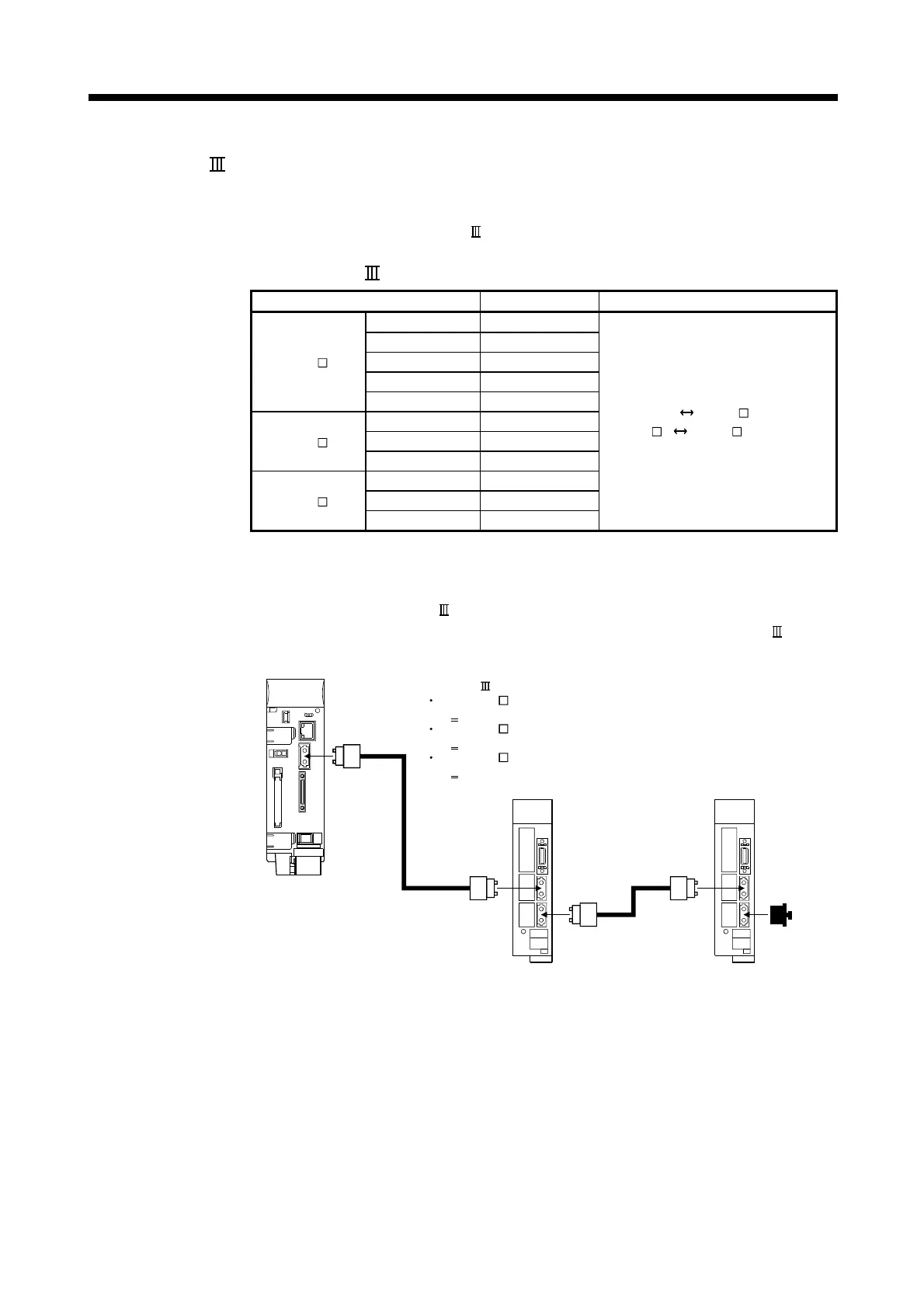

(2) Connection between the Q170MCPU and servo amplifiers
Connect the SSCNET cables to the following connectors.
Refer to Section 4.2.1 for the connection and disconnection of SSCNET
cable.
Q170MCPU
CN1A
Servo amplifier Servo amplifier
(Note): It cannot communicate with that the connection o
f
CN1A and CN1B is mistaken.
Cap
1)
1)
CN1B
CN1A
CN1B
SSCNET cable length
MR-J3BUS M use
1) < 3m(9.84ft.)
MR-J3BUS M-A use
1) < 20m(65.62ft.)
MR-J3BUS M-B use
1) < 50m(164.04ft.)
