Mitsubishi Q170MCPU User Manual

APP - 7
A
PPENDICES
1) Communication setting in MT Developer2 side

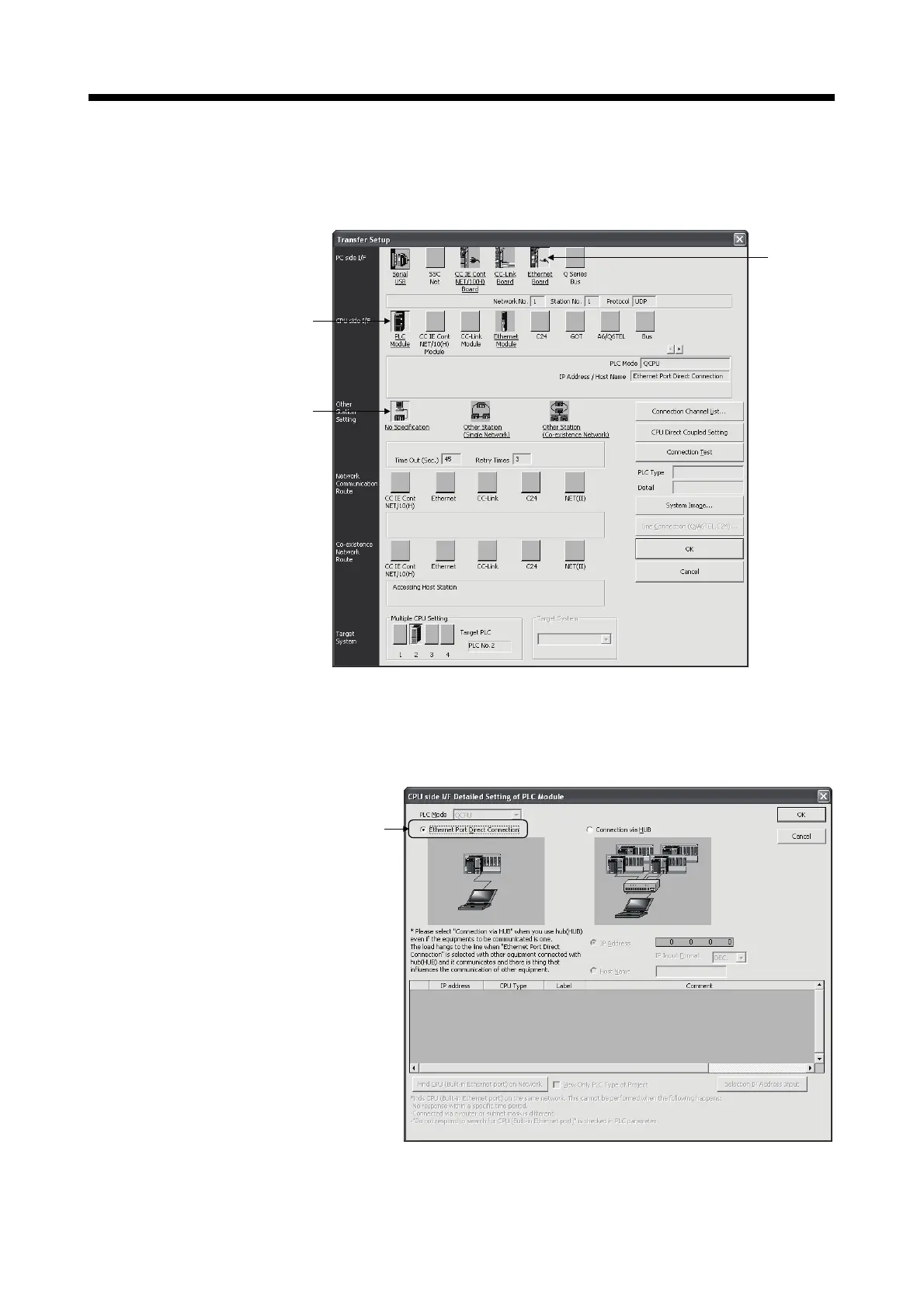

Set the items on the Transfer Setup screen in MT Developer2 as shown
below.
b)
c)
a)
a) Select [Ethernet Board] for PC side I/F.
b) Select [PLC Module] for CPU side I/F.
Select the "Ethernet Port Direct Connection" on the CPU side I/F
Detailed Setting of PLC Module screen.
Select "Ethernet Port
Direct Connection"
c) Make the setting for Other Station Setting.
