Mitsubishi Q62AD-DGH User Manual

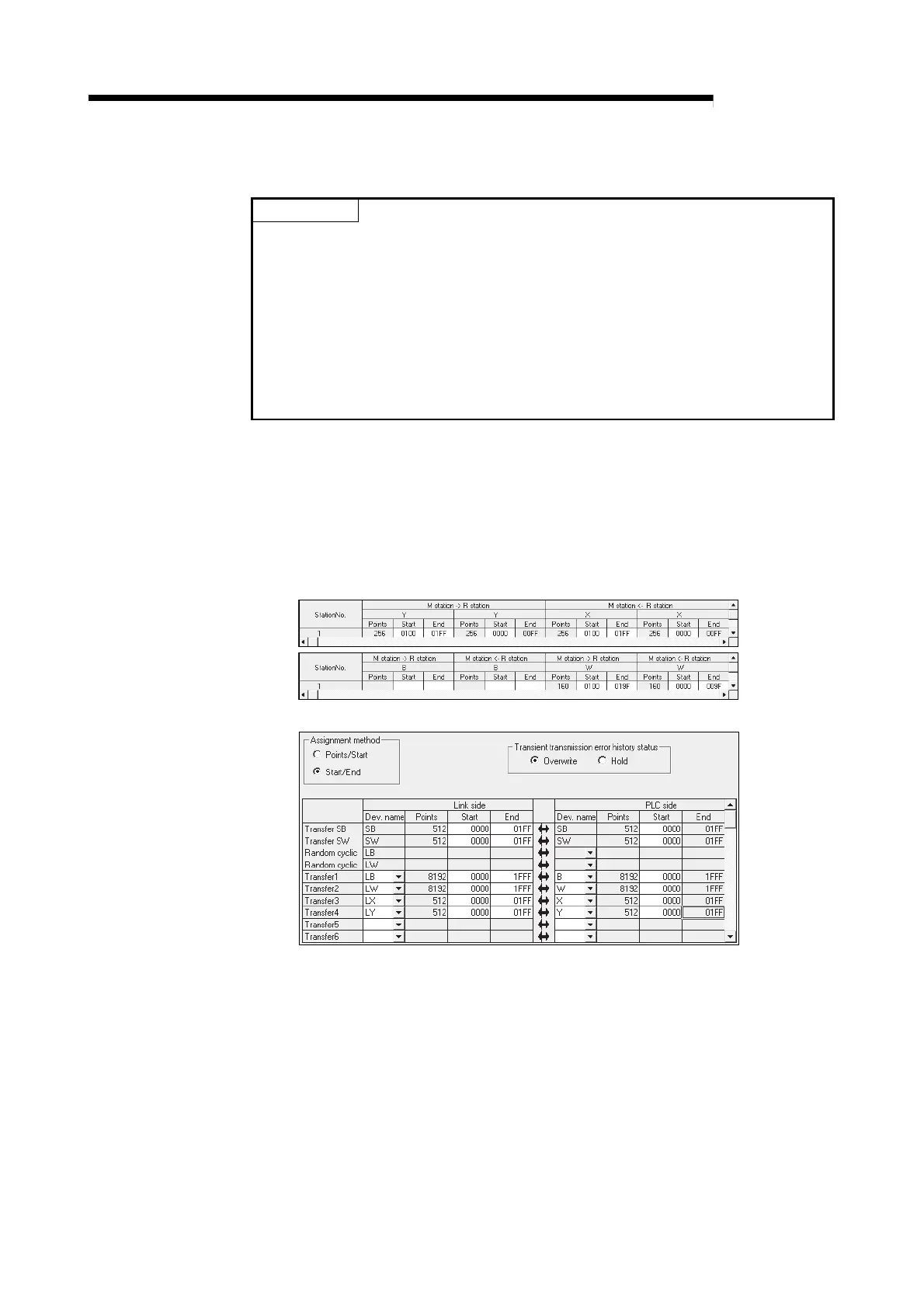

6 - 24 6 - 24
MELSEC-Q
6 PROGRAMMING
6.5.2 Programming example without using the utility package
POINT
The dedicated instructions used for reading/writing the buffer memory of the
intelligent function module on a remote I/O station (REMTO and REMFR) are the
execution type for which several scans are needed. Therefore, transmissions of
the execution results are not synchronized with the I/O signal operations. When
reading a digital output value on an A/D converter module after changing the
operating condition during operation, be sure to read the A/D conversion completed
flag (buffer memory address 10) at the same time.
Also, for the case of changing the operating condition, insert an interlock to prevent
the execution of the REMFR instruction.
(1) Operating GX Developer (CPU parameter setting)
• Network type : MNET/H (Remote master)
• Starting I/O No. : 0000
H
• Network No. : 1
• Total stations : 1
• Mode : Online
• Network range assignment :
• Refresh parameters :

Mitsubishi Q62AD-DGH Specifications

General

Type	Analog Input Module
Number of Channels	2
Output Voltage Range	Not Applicable
Product Line	MELSEC-Q
Input Voltage Range	-10 to +10 V DC
Input Signal Range	Voltage: -10 to +10 V DC, Current: 0 to 20 mA DC, 4 to 20 mA DC
Resolution	1/4000
Resolution (Current)	1/8000
Conversion Speed	1 ms
Power Supply	5V DC (internal power supply from base unit)
Current Consumption	0.12 A
Accuracy (Voltage)	+/-0.1% of full scale
Accuracy (Current)	+/-0.2% of full scale
