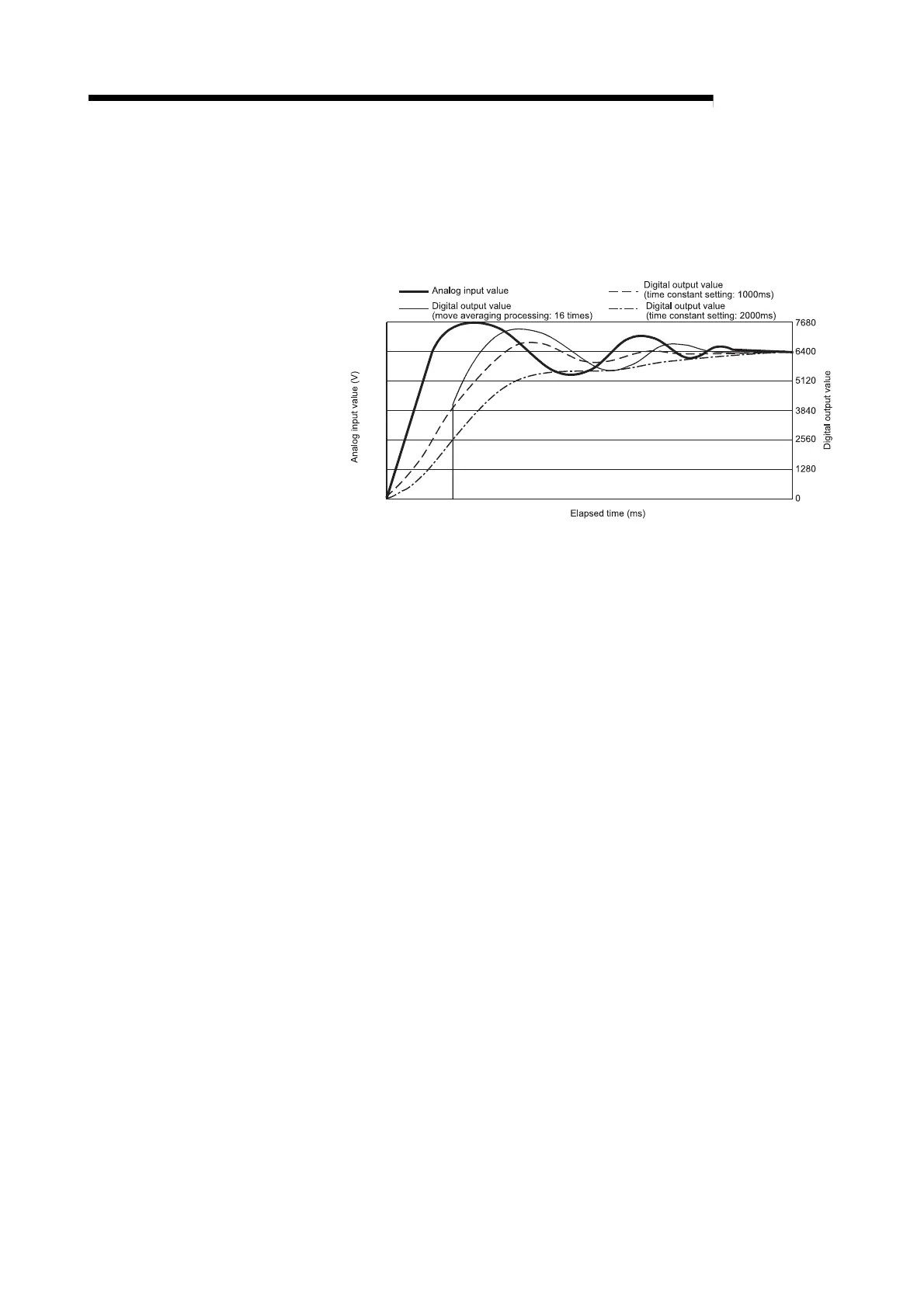

[Example 2] Digital output value when the variation of the analog input value has
a ringing waveform
Under the condition that the Q64AD-GH is used with an input range
of 0 to 10V, the digital output value with a time constant setting of
2000ms (2s), with a time constant setting of 1000ms (1s), or with the
move averaging processing of 16 times changes as shown in the
figure below, respectively.
