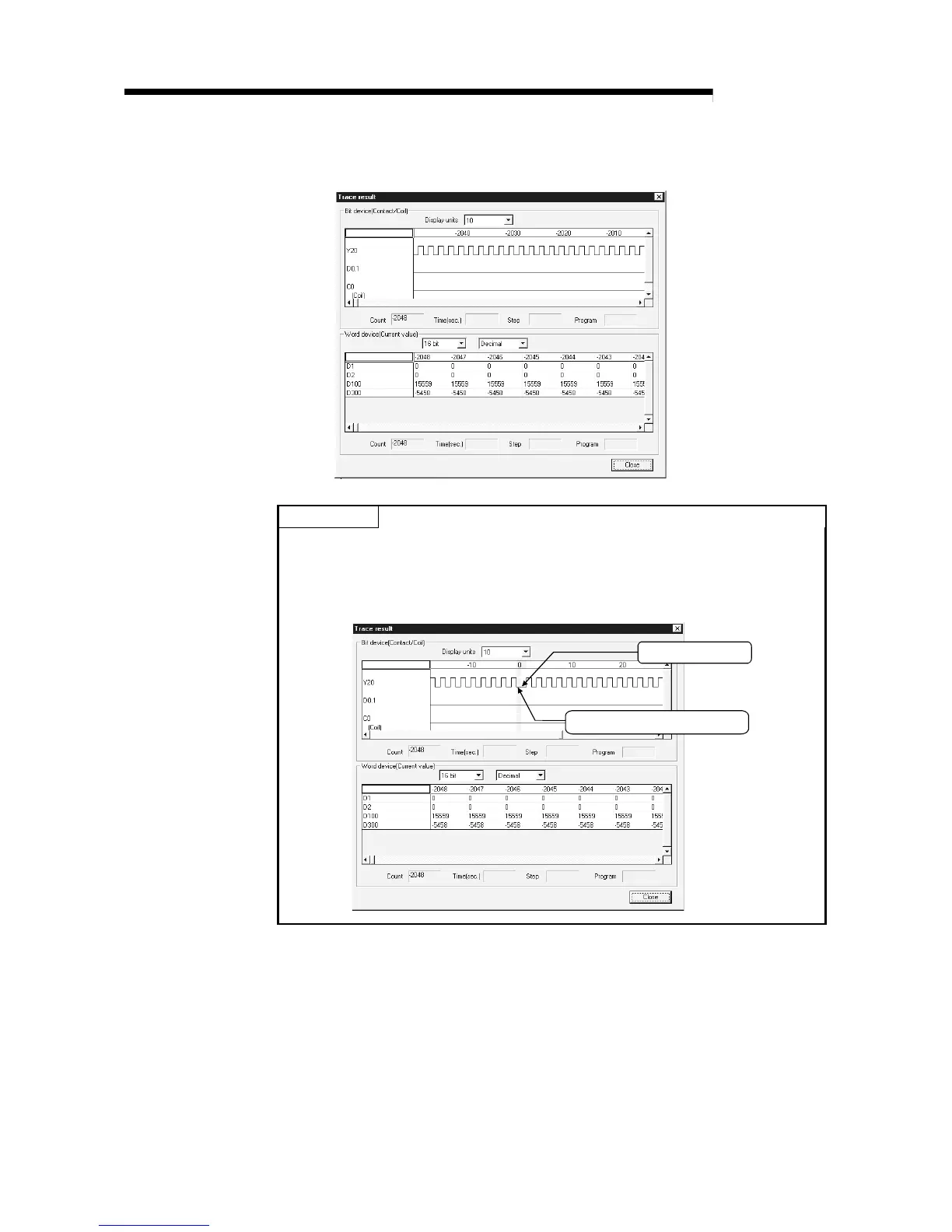

(e) The trace result displays the ON/OFF status of the bit device for the
sampling cycle, and the current value of the word device.
POINT
Device details are read under trigger conditions specified in the trigger point setting.
Sampling is performed for each scan. Before the sampling is finished by a trigger
operation of a peripheral device, data is sampled twice because the sampling
timing is the same as that of trigger conditions.
Data when trigger condition is met
Sampling trace data
To Next Page
