7 - 52 7 - 52
MELSEC-Q
7 FUNCTION

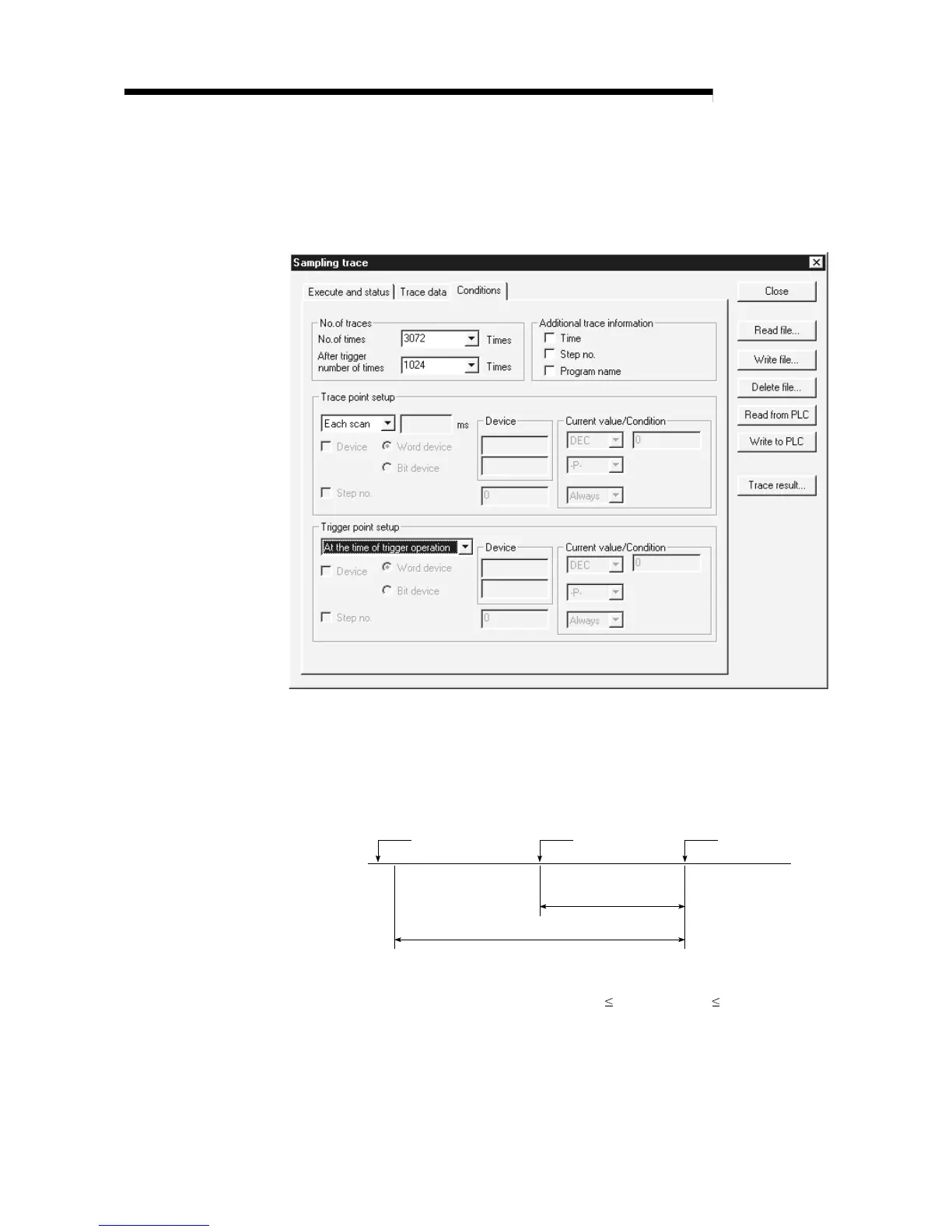

(b) Setting the Trace Condition
Set the trace condition at the "Conditions" tab screen in the "Sampling
trace" dialog box.
The trace condition setting can set to "No. of traces", "Trace point setup",
"Trigger point setup", and "Additional trace information".
1) No. of traces
a) The "No. of times" sets the number of times to execute the
sampling trace from trace execution to trace complete.
b) The "After trigger number of times" sets the number of times to
executes the sampling trace from trigger execution to trace
complete.
Trace start
Trigger point
Trace complete
No. of times (Number of total times)
After trigger number
of traces
c) The setting range for each number of times is shown below:
(After trigger number of times)
(No. of times) (8192)
To Next Page
