4 SEQUENCE PROGRAM CONFIGURATION AND EXECUTION
CONDITIONS
(d) The execute type of program is switched at END processing. The program
execute type does not change while the program is being executed.
If different execute type is specified for a same program in a same scan,
the last-specified execute type becomes effective.

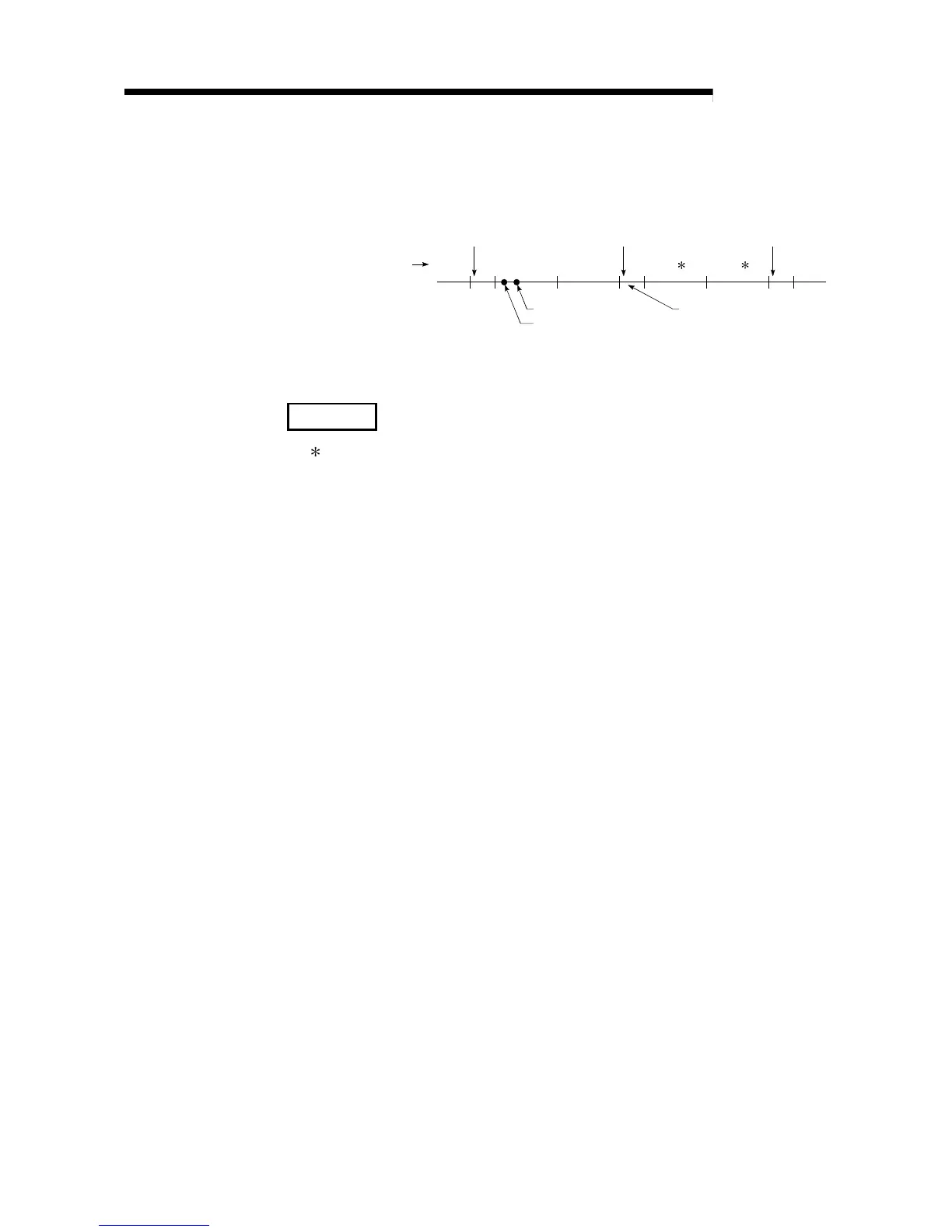

Execution program
name
END processing
"ABC" "GHI" "GHI" "DEF" "GHI"
END processing
END processing
PSTOP "ABC" execution
PSCAN "DEF" execution
Switches "DEF" to the scan
execution type and "ABC" to
the stand-by type program,
respectively.
"GHI"
REMARK
1) : The "GHI" and "DEF" programs are executed in the order as set at the
"Program" tab screen in the “(PLC) Parameter" dialog box.
