5 ASSIGNMENT OF I/O NUMBERS

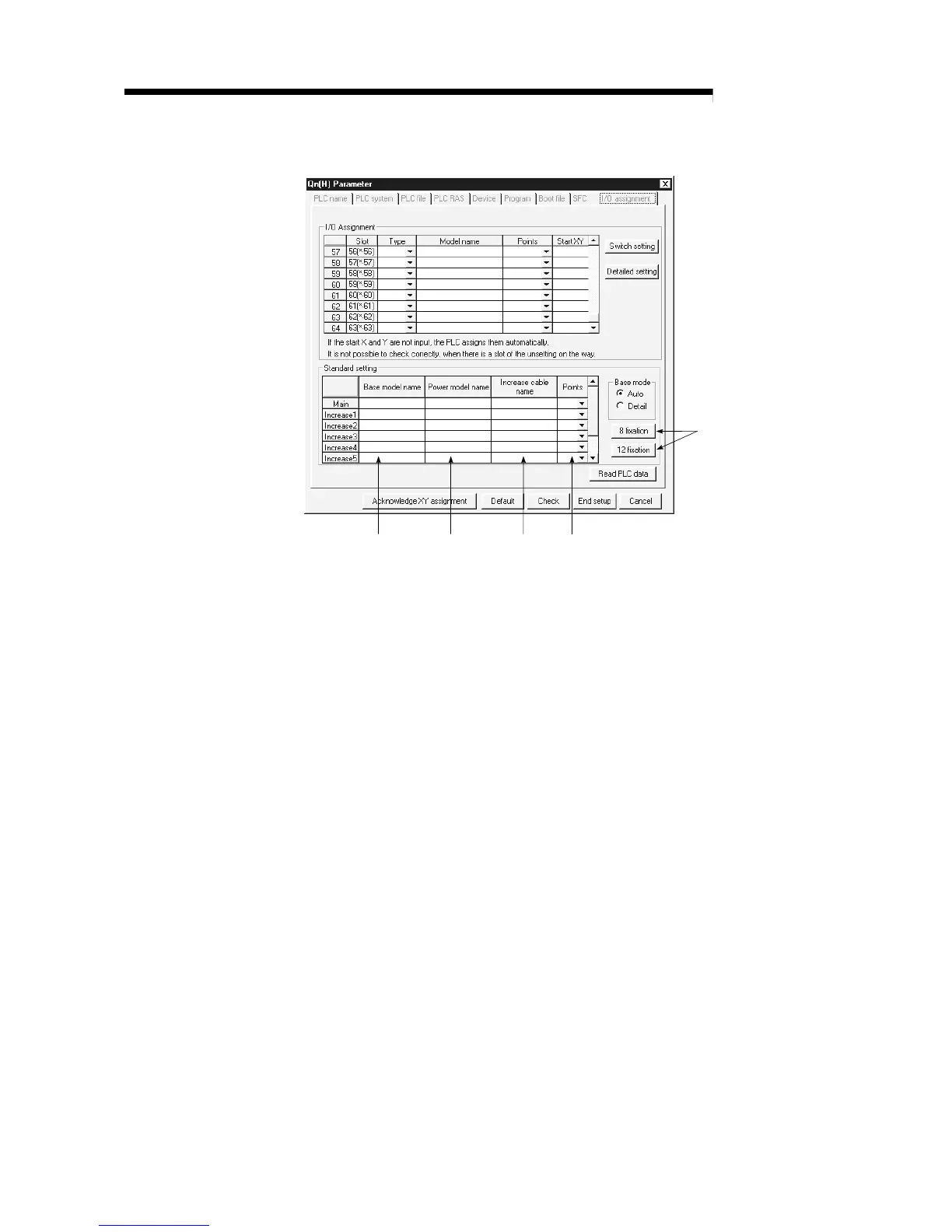

(3) Setting screen and setting items for Base mode of GX Developer
(a) (b) (c) (d)
(e)
(a) Base model name
Designate the model name of the installed base unit with 16 or less
characters. High Performance model QCPU does not use the designated
model name. (It is used as a user's memo or for parameter printing)
(b) Power model name
Designate the model name of the installed power supply module with 16 or
less characters. High Performance model QCPU does not use the
designated model name. (It is used as a user's memo or for parameter
printing)
(c) Increase cable name
Designate the model name of the extension cable being used with 16 or less
characters. High Performance model QCPU does not use the designated
model name. (It is used as a user's memo or for parameter printing)
(d) Points (Used with High Performance model QCPU)
Select the number of points for the slot of the base unit being used from the
followings:
• 2 (2 slots)
• 3 (3 slots)
• 5 (5 slots)
• 8 (8 slots)
• 10 (10 slots)
• 12 (12 slots)
(e) 8 fixation/12 fixation (Used with High Performance model QCPU)
Select either option to designate the number of slots for all base units to the
same number.
