9 - 37 9 - 37

MELSEC-Q

9 UTILITY PACKAGE (GX Configurator-SC)

9.6.1 X/Y monitor/test

[Purpose]

Perform the monitoring of I/O signals and testing of output signals.

[Operating procedure]

[Monitor] screen X/Y monitor/test

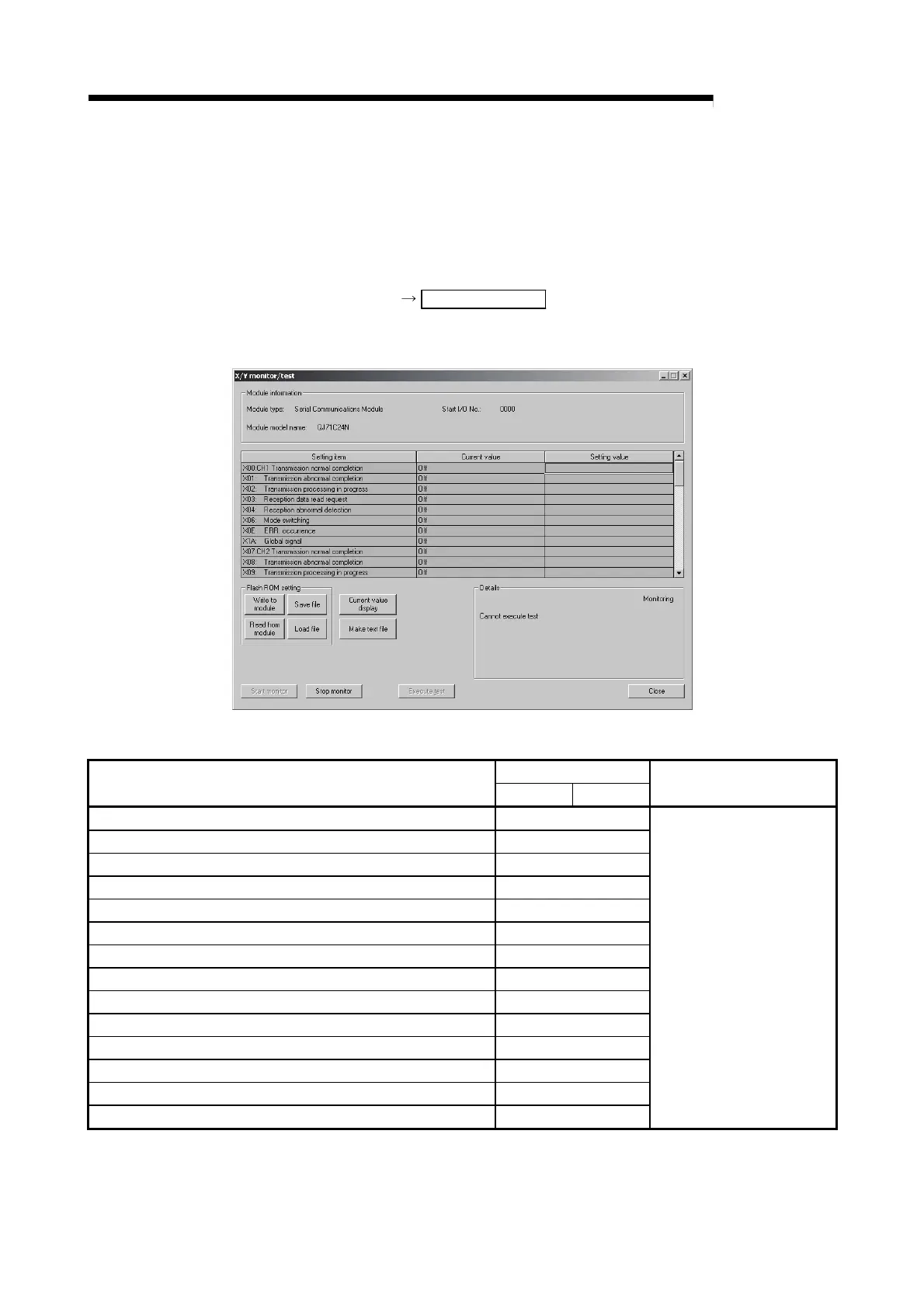

[Monitor/Test screen]

[Monitor/Test items]

Buffer memory address

Item

CH1 CH2

Reference section

X00: CH1 Transmission normal completion —

X01: CH1 Transmission abnormal completion —

X02: CH1 Transmission processing in progress —

X03: CH1 Reception data read request —

X04: CH1 Reception abnormal detection —

X06: CH1 Mode switching —

X0E: CH1 ERR. Occurrence —

X1A: CH1 Global signal —

X07: CH2 Transmission normal completion —

X08: CH2 Transmission abnormal completion —

to to

Y18: Flash ROM write request —

Y19: Flash ROM system setting request —

Y1C: System setting default request —

Section 3.8
