9 UTILITY PACKAGE (GX Configurator-SC)
9.6.9 Transmission user frame No. designation monitor
[Purpose]
Monitor the setting value of output frame number used when transmitting data
with the non procedure protocol using the user frame.
[Operating procedure]
[Monitor] screen CH Output frame monitor

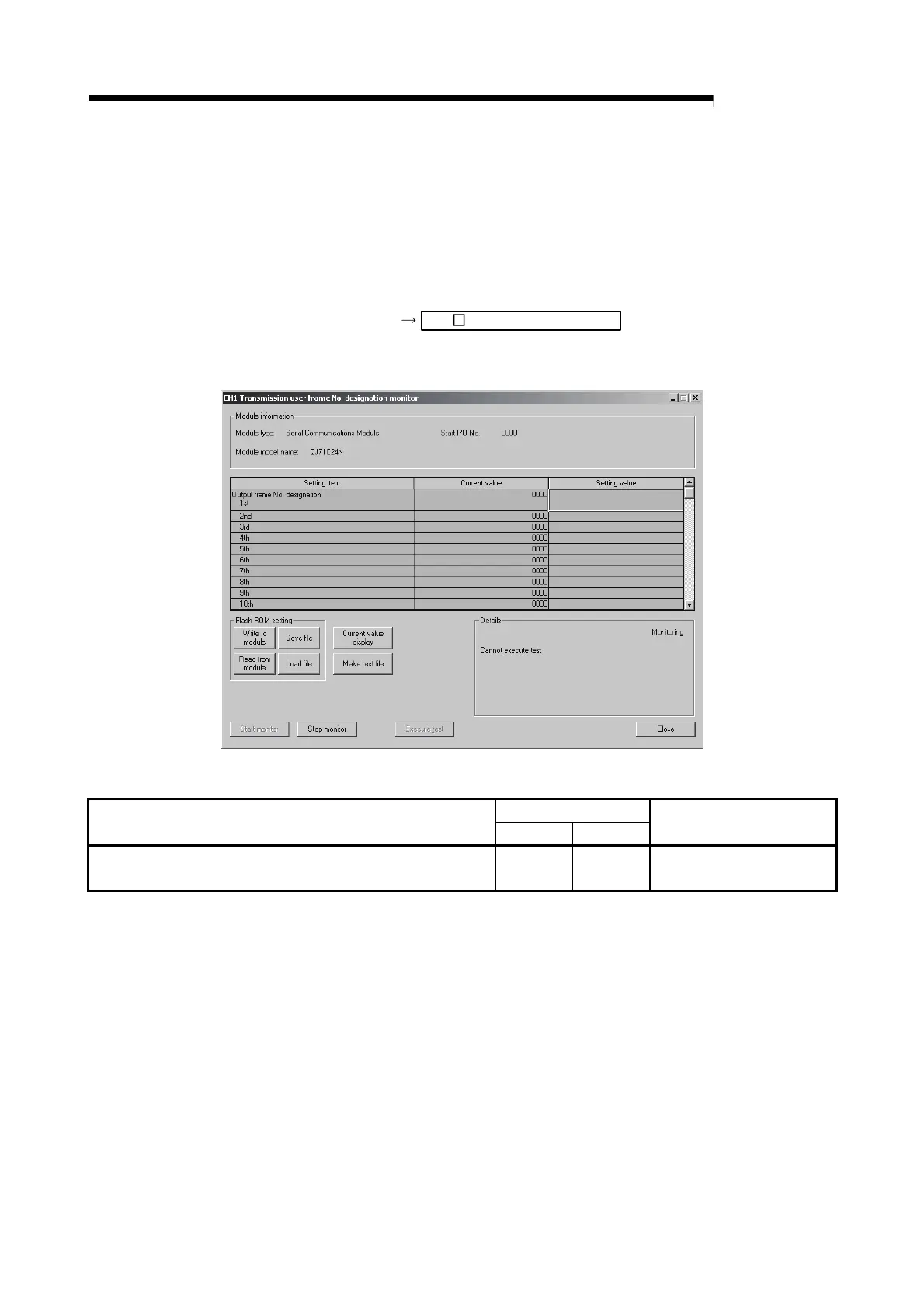

[Monitor screen]
[Monitor item]
Buffer memory address
Item
CH1 CH2
Reference section
Output frame No. designation 1st to 100th
BA
H to
11D
H
15A
H to
1BD
H
User's Manual (Application)
