9 - 48 9 - 48
MELSEC-Q
9 UTILITY PACKAGE (GX Configurator-SC)
9.6.7 Pre-defined protocol monitor/test
[Purpose]
Monitor the data communication status and test the values set for the pre-defined
protocol.
[Operating procedure]
[Monitor] screen CH Pre-defined protocol monitor/test

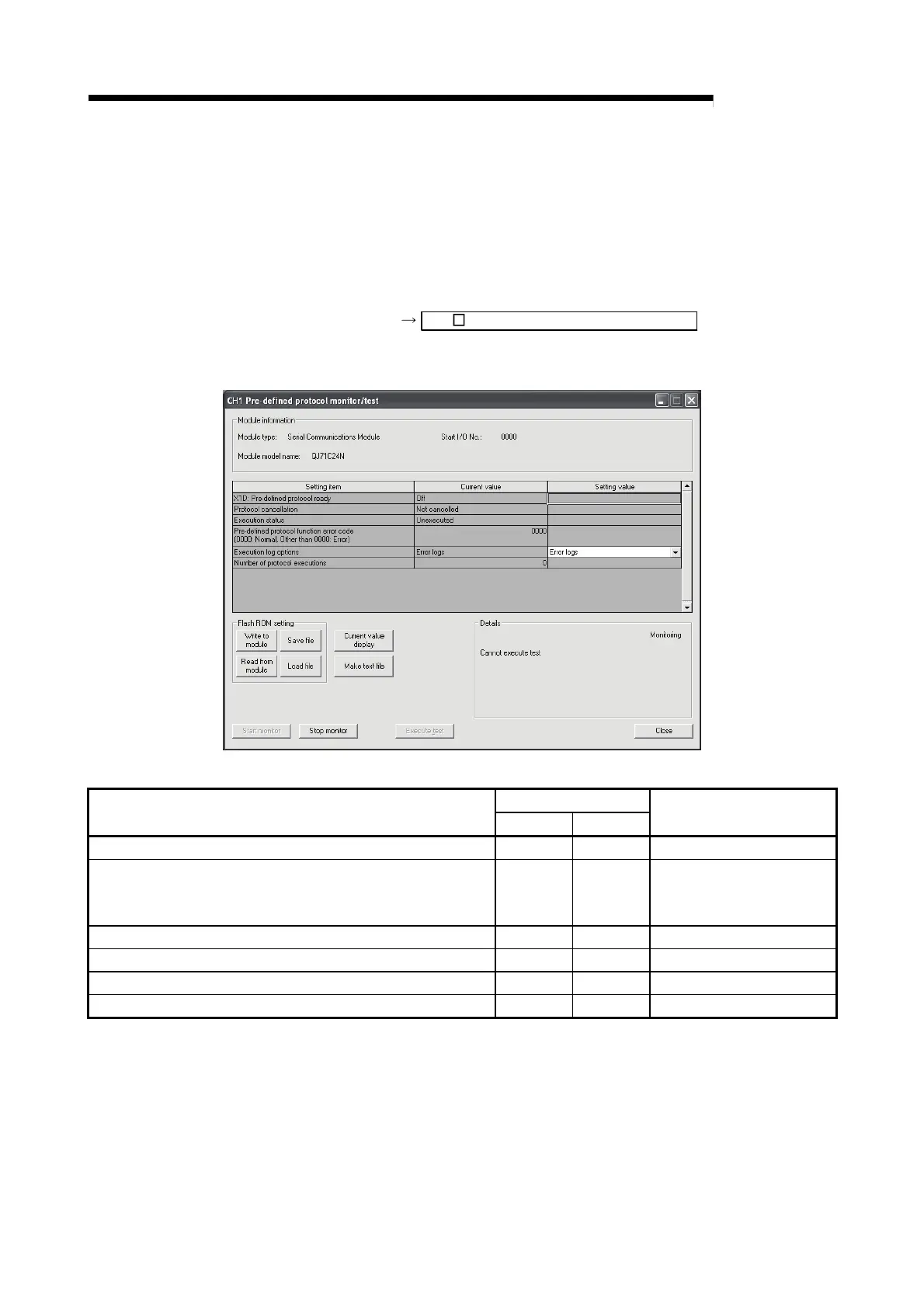

[Monitor/Test screen]
[Monitor/Test items]
Buffer memory address
Item
CH1 CH2
Reference section
X1D: Pre-defined protocol ready — — Section 8.1.5
Protocol cancellation 4040H 4050H
Operating Manual (Pre-
defined protocol support
function)
Execution status 4041H 4051H Section 8.1.3 and 8.1.4
Pre-defined protocol function error code 4042H 4052H Section 11.2.1
Execution log options 40E2H 40F2H Section 8.1.3 and 8.1.4
Number of protocol executions 4043H 4053H Section 3.9 and 8.1.3
To Next Page
