Page 10
MODELS: WS-48315 / WS-55315 / WS-65315

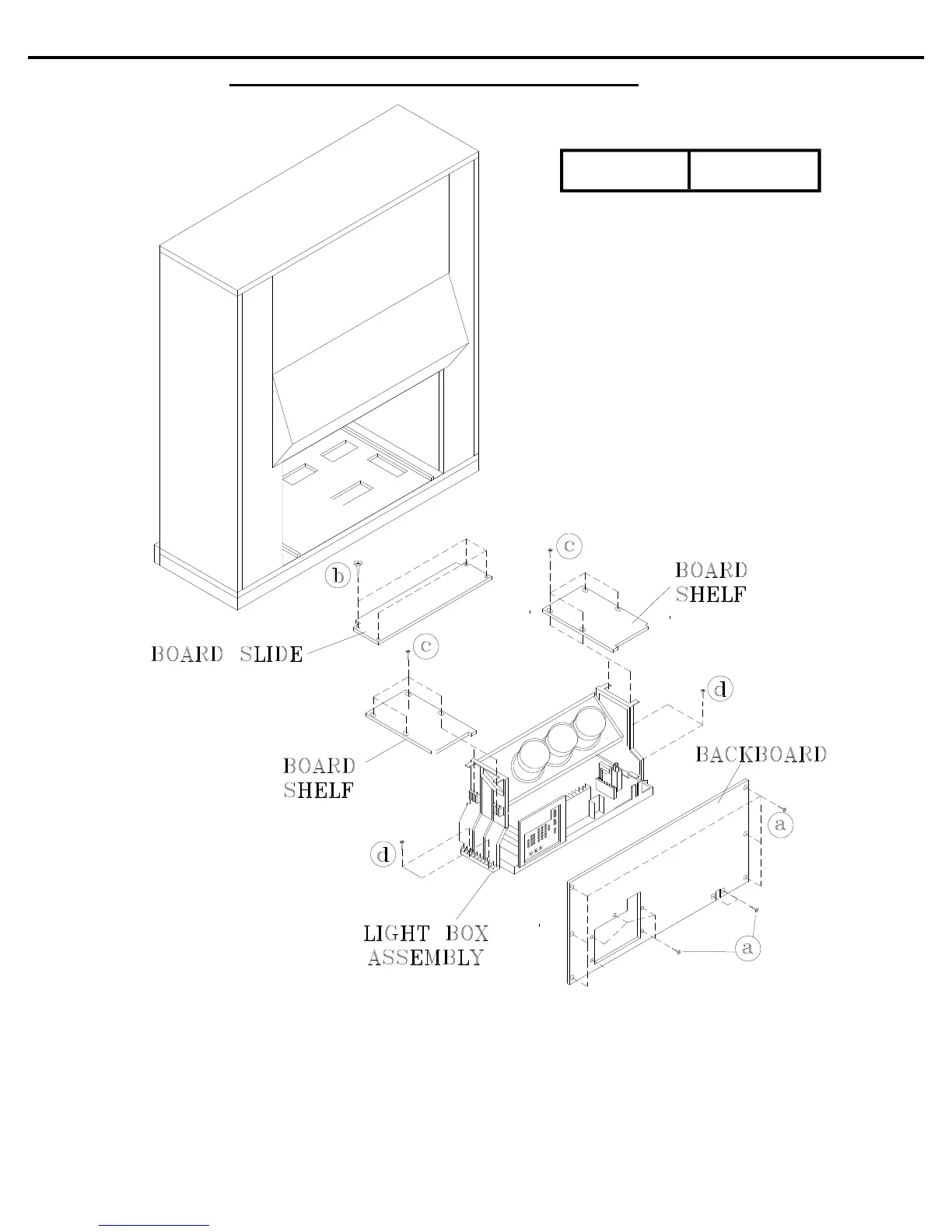

CABINET DISASSEMBLY (REAR VIEW)
Rear Cabinet Disassembly
1. Remove the Back Board by removing 13 screws "a" (15 screws “a” in 65 inch models).
2. Remove the Board Slide by removing four screws “b”.
3. Remove the two Board Shelves by removing 8 screws “c”.
4. Remove 4 screws "d" securing the Light Box Assembly.
5. Be certain that all cables and connectors between the Light Box Assembly and external items are discon-
nected (connectors CC, ZF and EJ)).
6. Slide the Light Box Assembly out of the cabinet.
WS-55315 WS-65315
To Next Page
