Page 8
MODELS: WS-48315 / WS-55315 / WS-65315

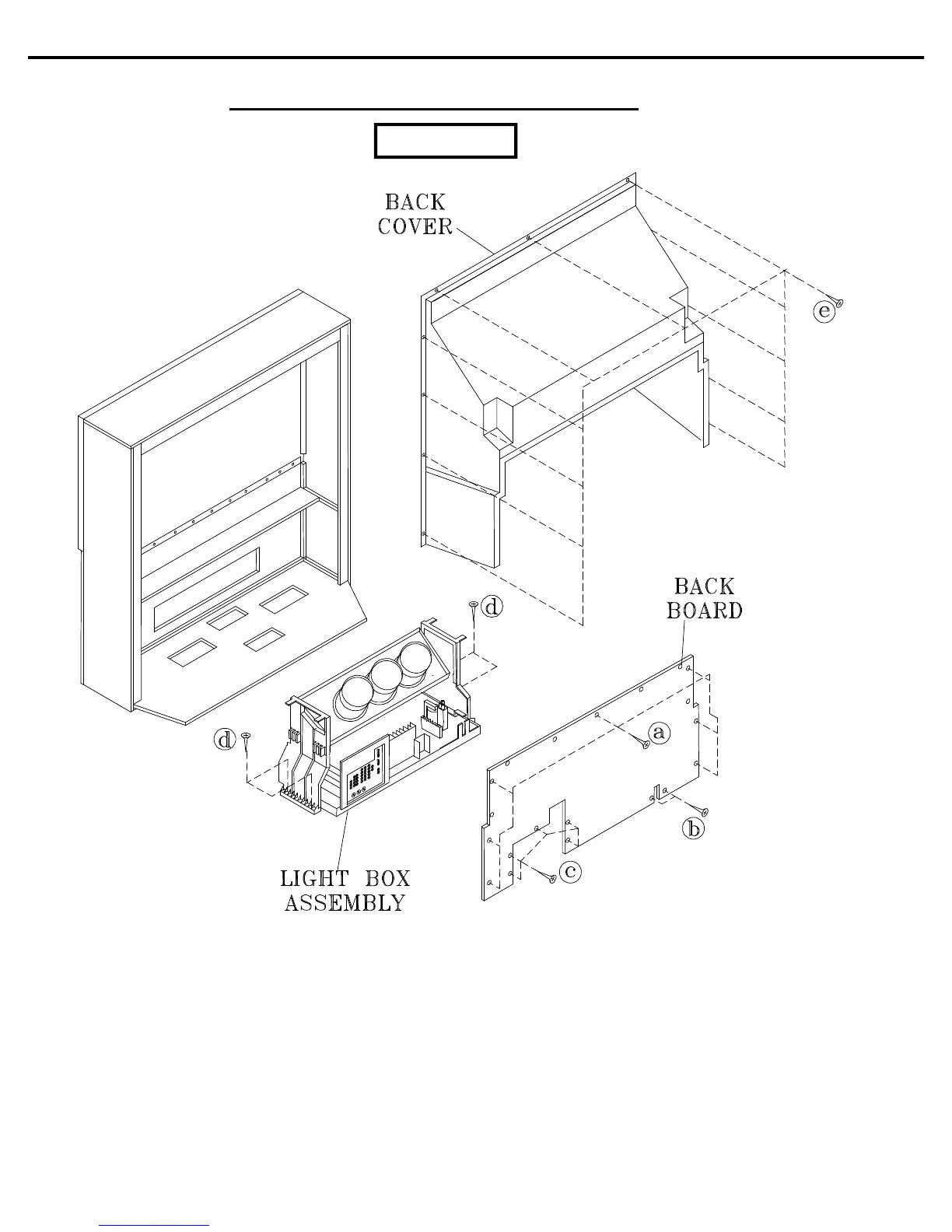

CABINET DISASSEMBLY (REAR VIEW)
Rear Cabinet Disassembly
1. Remove the Back Board by removing 14 screws "a", “b” and “c”.
2. Remove 4 screws "d" securing the Light Box Assembly.
3. Be certain that all cables and connectors between the Light Box Assembly and external items are discon-
nected (e.g. speaker plugs).
4. Slide the Light Box Assembly out of the cabinet.
